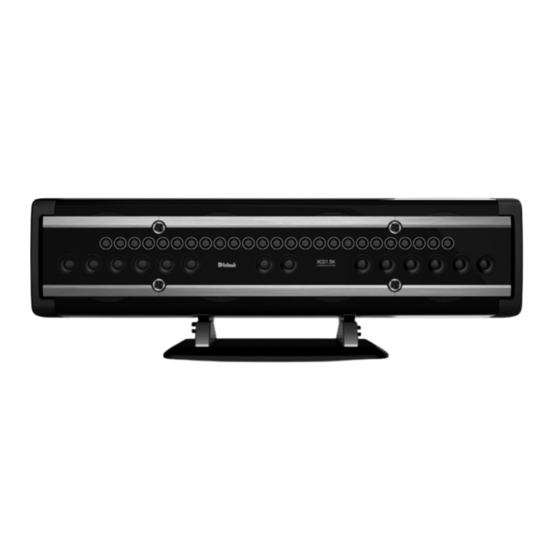

- Page 1 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com XCS1.5K Center Channel Loudspeaker Owner's Manual...
-
Page 2: Table Of Contents
Safety First Technical Assistance Table of Contents If at any time you have questions about your McIntosh General Information ..........2 Please read the Safety Instructions included in a product, contact your McIntosh Dealer who is familiar separate document called “Important Additional Introduction ............ -
Page 3: Introduction
Loudspeaker Design. High-end Loudspeaker develop- long cone excursions. The sound produced has very ment is a marriage of art and science. The XCS1.5K High Power Handling - The Loudspeaker Elements low levels of harmonic distortion and a frequency is the culmination of decades of work (and—we... -
Page 4: Dimensions
Dimensions Top View 32 " 53.9cm Front View Side View 32 " 126.92cm 4 " 32 " 19.69cm 33.42cm 16 " 43.66cm 32 " 32 " 61.67cm 34.37cm... - Page 5 Drivers Position 16 " 27.78cm 0" 32 " 31.04cm 32 " 25.80cm 0"...
-
Page 6: Unpacking And Assembly
To protect the fine finish of the XCS1.5K Loudspeaker System during the adjustment process, it is advisable to prepare a suitable adjustment area. A freshly... - Page 7 7. Remove the protective rubber tips from the four pre-installed bolts. (A pair of bolts protrude from each of two metal plates in the front of the cabinet.) 8. Carefully, position the Tweeter/Midrange array over the four bolts. Note the correct orientation is with the tweeter array above the midrange array.
-
Page 8: Installation
Loudspeaker too close to a side wall. There should be an unobstructed area for 8 Ohm connections. The XCS1.5K is an 8 Ohm in front of the XCS1.5K Loudspeaker on either side of the center axis for the best performance. The optimum speaker, but, for reference purposes, when using 4 location in a Home Theater System is directly under or in front of the TV/Monitor. - Page 9 Jumper Cables can be used to connect the Less Resistance remaining two pairs of Input Terminals. Attach the The XCS1.5K is an 8 Ohm speaker, and this is the Spade Terminals of the Jumper Cables as described recommended connection from an amplifier. Some above in Loudspeaker Input Terminal Connection.
-
Page 10: Specifications
If a shipping carton or any of the interior part(s) Frequency Response are needed, please call or write Customer Service 32Hz - 20kHz Department of McIntosh Laboratory. Please see the Sensitivity Part List for the correct part numbers. 88dB (2.83V/1m equivalent) - Page 11 Step 1 Step 3 Step 2...
- Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 www.mcintoshlabs.com The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A. McIntosh Part No. 24104300...
