- Page 1 BELLE 870/10014/8 02/22 50, 60, 68, 70 & 80D Operators Manual Operators Manual Manuel De L'Opérateur Manual del Operador Manual de Operação Handleiding Betjeningsvejledning Bedienungshandbuch Manuale Dell'Operatore Bruksanvisning Käyttöohje UKCA Declaration of Conformity Instrukcja Obsługi 3 - 21 Рyкoвoдcтвo для oпepaтopa EC Declaration of Conformity Kasutusjuhend Lietotāja rokasgrāmata...
-
Page 2: Table Of Contents
KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use Altrad Belle (UK): Contents How to use this manual ....................................22... -
Page 3: Machine Description

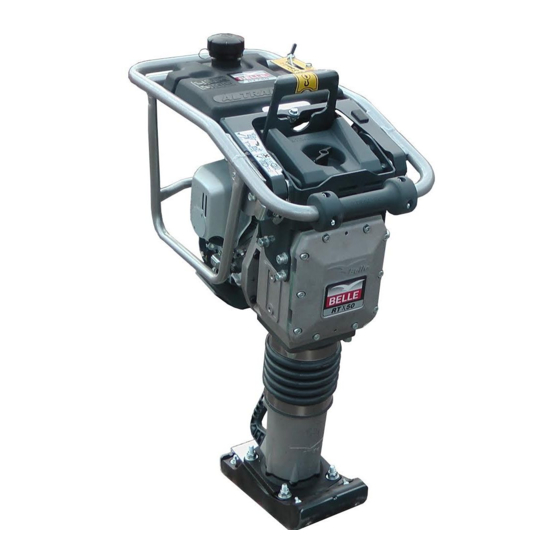

Machine Description RTX 80D RTX 60 / 68 / 70 RTX 50 1. Fuel Tank. 7. Bellows 13. Lifting Handle 2. Throttle Lever. 8. Lifting Eye. 9. Leg Oil Plug. 15. Leg Oil Sight Glass 4. Engine. 10. Ramming Shoe. 5. -
Page 4: Decals
Decals A - Transport Decal (Part No. 800-99631) On-Site Transport using a Sling or Hoist on the Lifting Eye. NOTE:- A sling or hoist must not be used on the Lifting Handle. Road Transport position and strongly strapped down to guard against rolling or sliding. B - Safety Symbols Wear Ear Wear Eye... - Page 5 ‘ON’ position. ‘OFF’ position. K - Serial Plate (Part No. 800-99844) The Serial Plate contains the machine Serial Number and all other information that you may require when contacting Altrad Belle regarding your machine. +44 (0)1298 84606 +44 (0)1298 84722 1.
- Page 6 Decals L - Safety Decal (Part No. 800-99831) WARNING! Please Read Wear Wear Ear Wear Eye Operators Protective Protection Protection Manual Footwear M - Exhaust Fumes Warning Decal (Part No. 800-99520) Engines emit carbon monoxide; operate only in well-ventilated areas. N - Hot Surface Decal (Part No.
-
Page 7: Technical Data
Technical Data Model A - Width (mm) B - Length (mm) C - Height (mm) 1040 1040 1040 1040 1081 D - Shoe Width* (mm) E - Shoe Length* (mm) Honda Honda Honda Honda Honda Honda Honda Honda Honda Engine Models GX100 GXR120 GX100... -
Page 8: General Safety
WARNING DO NOT Health & Safety Vibration Some vibration from the machines operation is transmitted through the handle to the operator’s hands. The Altrad Belle RTX range has DO NOT exceed the maximum usage times. PPE (Personal Protective Equipment) footwear. -
Page 9: Pre-Start Safety Checks
Pre-Start Checks Pre start-up inspection RTX must not be used until the fault Thoroughly inspect the RTX for signs of damage. leaks before operating. Check the Engine Oil level and top up as necessary. level. To achieve this place the Rammer in the position shown below. Check the Engine Fuel level and top up as necessary. -
Page 10: Start & Stop Procedure
Start & Stop Procedure CAUTION Improper operation can be hazardous. Read and understand this section before you start the machine. WARNING immediately stop the machine from vibrating. Honda GX100, GX120 & GXR120 2. Set the speed control lever to the STARTING position (Halfway between HIGH and LOW 3. -
Page 11: Operation
Once the checks listed in the ‘Pre-Start’ section have been carried out, you may start the engine. The Altrad Belle RTX mechanism. As the engine speed is increased the clutch will engage and the engine will drive the crank mechanism. -
Page 12: Trouble Shooting Guide
The Altrad Belle RTX maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle HT lead from the sparkplug. Always set the RTX... -
Page 13: Service & Maintenance
Service & Maintenance Every 8 Hours or Daily Red Dot indicates Minimum Oil Level to the engine manufacturer’s recommendations. If operating should be done more frequently. 3. Check oil level in crankcase of engine and replenish as necessary. Check oil level in the ramming cylinder as per following procedures. 3a. -
Page 14: Transport
Transport Please ensure that you have read and fully understand the information below before attempting to CAUTION transport the RTX Rammer. On-Site Transport using a Sling or Hoist on the Lifting Eye. NOTE:- A sling or hoist must not be used on the Lifting Handle. Road Transport position and strongly strapped down to guard against rolling or sliding. -
Page 15: Replacement Parts
Altrad Belle online parts portal. Warranty The following are not covered under the Altrad Belle warranty: operation or user maintenance instructions. The following components are not covered by warranty. • Engine spark plug losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.
