- Page 1 BELLE 870/10026/0 05/22 PCX 13/40E+ Operators Manual UKCA Declaration of Conformity EC/EU Declaration of Conformity...
-
Page 2: Ukca Declaration Of Conformity
M14 4PN, UK carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Schedule 9 of SI 2001 1701 Technical Files are held by Ray Neilson at the Altrad Belle address stated above:- Place of Declaration:-... -
Page 3: Ec/Eu Declaration Of Conformity
EC Declaration Of Conformity (DOC) We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s): PRODUCT TYPE ..... Signed by: MODEL........Ray Neilson SERIAL No....... -
Page 4: Table Of Contents
Contents CONTENTS PAGE NUMBER UKCA DECLARATION OF CONFORMITY .............................. 2 EC/EU DECLARATION OF CONFORMITY ............................. 3 INTRODUCTION ....................................... 5 WARNING ...................................... 5 Serial Numbers....................................6 MACHINE DESCRIPTION General......................................7 Standard Operation ..................................7 Danger Zone ....................................7 Main Components Locations ................................8 Power Unit Components ................................ -
Page 5: Introduction
When replacements are required, insist on genuine Altrad Belle parts, as extensive damage is liable to result from the use of inferior quality parts. -
Page 6: Serial Numbers
Serial Numbers ENSURE you make a note of the serial numbers of your machine and always quote them in any communication with Altrad Belle or one of our dealers. A - MACHINE SERIAL NUMBER B - POWER UNIT SERIAL NUMBER... -
Page 7: Machine Description
The machine is intended to be used for the following, in safe environmental conditions as described in this manual. Any other use is not deemed suitable for this machine. Altrad Belle will not liable for any damage or injury resulting from any use other than outlined above. -
Page 8: Main Components Locations

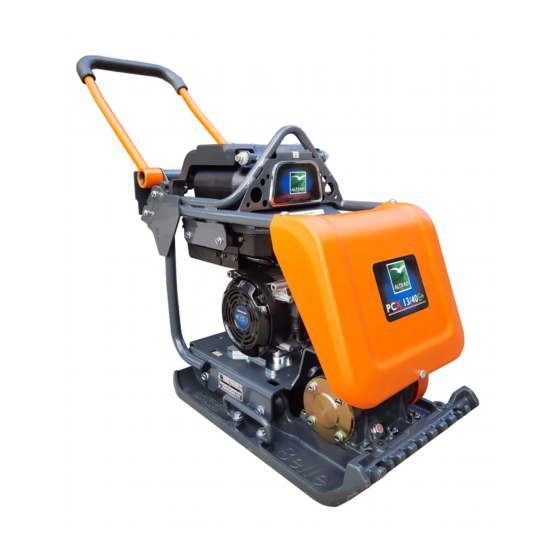

Machine Description MAIN COMPONENT LOCATIONS A. Belt Guard. C. Attachment Points for Optional Wheel Kit. D. Protective Battery Cover. E. Hand Lifting Points. F. Vibrator / Vibrator Housing. G. Vibrator Oil Check Plug. J. Control Handle. K. Battery Charge Level Viewing Window. L. -
Page 9: Power Unit Components
Machine Description POWER UNIT COMPONENTS A. Speed Change Button. B. Start/Stop Switch. C. Power Button. D. Power Indicator. E. Alert Indicator. F. Error Indicator. G. Battery Hook. H. Battery Connector Cap J. Power Cable. K. Battery Retaining Lever. BATTERY PACK COMPONENTS ALERT ERROR A. -
Page 10: Battery Charger
Machine Description BATTERY CHARGER A. Charging Cable B. Charging Connector C. Charging Connector Holder D. ERROR Indicator E. POWER Indicator F. Intake Port G. Exhaust Port H. AC Cable J. AC Plug Holder K. AC Plug... -
Page 11: Technical Data
Technical Data STATIC DIMENSIONS 400mm 435mm 750mm 1107mm Model PCX 13/40E+ Motor (Hp / kW) 2.2 / 1.6 Vibrator Force (KN) Frequency (Hz) Static Pressure (kg/m²) Max Gradient (°) Travel Speed (m/min) HAV Level (m/s²) <2.5 Weight (kg) Motor RPM: 3600 / 3000 / 2800 Sound Power Level (dB(A)) Model... -
Page 12: Safety Instructions
It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the machine, consult your supervisor or Altrad Belle. -
Page 13: Battery Charger
Safety Instructions BATTERY CHARGER • To reduce risk of injury, charge ONLY DP72104Z type rechargeable batteries. Other types of batteries may burst causing personal injury and damage. • This Battery Charger is not intended for use by children or persons with physical, sensory or mental limitations or a lack of experience or knowledge. -
Page 14: Battery Pack
ENSURE that all consumables and replaced parts are disposed of safely and with minimum environmental impact. MODIFICATIONS & REPLACEMENT PARTS • NEVER • ALWAYS safety of the machine. This may also voide the Warranty. Genuine Altrad Belle replacement parts can be purchased online at www.Altrad-Belle247.com... - Page 15 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY...
-
Page 16: Safety Decals
Safety Instructions SAFETY DECALS A. Lifting Point Decal B. Low HAV Decal. C. General Safety / Info Decal. D. Operating Instructions Decal. E. Handle Latch Decal... - Page 17 Safety Instructions SAFETY DECALS A - Lifting Point Decal Lifting point for use with a Sling or Mechanical Hoist. B. Low HAV Decal. Highlights that the machine has a HAV level low enough that it can be used for more than 8hrs. C.
-
Page 18: Reasons For Compaction
Operating Instructions REASONS FOR COMPACTION lead to one or more problems occurring. 3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning. -
Page 19: Charging The Battery Pack
Operating Instructions CHARGING THE BATTERY PACK Refer to the Battery Charger manual for instructions on how to charge the Battery Pack. ATTACHING THE BATTERY PACK CAUTION ALWAYS make sure to use a genuine, recommeded Battery Pack. Refer to the Machine Description section to identify the components. 1. -
Page 20: Check The Charge Level Of The Battery Pack
Operating Instructions CHECKING THE CHARGE LEVEL OF THE BATTERY PACK While the Power Unit is operating, the charge level indicator lights or Charge Level Indicator Display Fully charged. High While the Power Unit is stopped, press the charge level check button to Sufficiently charged. -
Page 21: Storage
Storage If the machine is not to be used for an long period of time it must be stored correctly to prevent deterioration or damage occuring during this period. Store the machine in a clean dry building with plenty of ventilation if possible. If you can only store outdoors, cover with a waterproof sheet / tarpaulin. -
Page 22: Service And Maintenance
A poorly maintained machine could be a danger to the operator and the other personnel on the worksite. ENSURE that the regular ALWAYS use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty. ALWAYS set the machine on stable, level ground. -
Page 23: Drive Belt
Service and Maintenance DRIVE BELT of the belt, as near central between the power unit drive and vibrator pulley. The belt should If the belt tension requires adjustment, remove the belt. Loosen the four power unit mounting bolts (Highlighted Grey in the adjacent diagram (1 bolt is hidden by the power unit) second time. -
Page 24: Troubleshooting Guide
Charge the Battery Pack. Battery Pack has malfunctioned. Replace the Battery Pack. Protection function is engaged. Contact Agent or Altrad Belle. When starting the Power Unit, the POWER Press the START/STOP switch to the STOP position and button was pressed while the START/ ALERT indicator is then press the POWER button. -
Page 25: Battery Back
Position the Battery Pack so there are no gaps between Charging stops midway correctly, so charging is stopped by the the intake port of the Battery Charger and the exhaust port high-temperature protection function. of the Battery Pack. ERROR indicator is lit Protection function is engaged. Contact Altrad Belle. -
Page 26: Environment
The user will lose any possible claims if replacement parts used are other than the makers original replacement parts. Replacement parts for this product can be ordered online 24 hours a day, 7 days a week at www.Altrad-Belle247.com For more information regarding the availability of replacement parts for this product, please contact Altrad Belle using the following contact details:- Altrad Belle online parts portal. -
Page 27: Warranty
Warranty Your new Altrad Belle ‘PCX 13/40E+’ Single Direction Plate Compactor is warranted to the original purchaser for a period of one-year The following are not covered under the Altrad Belle warranty: 1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions. - Page 28 ALTRAD BELLE Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com www.Altrad-Belle.com BELLE EU IMPORTER ADDRESS LIGHT ADRESSE DE L'IMPORTATEUR - DIRECCIÓN DEL IMPORTADOR - ENDEREÇO DO IMPORTADOR - ADRES IMPORTEUR CONSTRUCTION IMPORTØRENS ADRESSE - IMPORTEUR ADRESSE - INDIRIZZO DELL'IMPORTATORE - IMPORTÖRENS ADRESS - IMPORTØRADRESSE...
