DAeLECTRONICS
MANUALE D'USO – OPERATIONAL MANUAL
Grazie per aver acquistato il
. Per favore leggete questo manuale con
iCtrl-R mini
cura per imparare tutte le funzioni dell'
ed usarlo al meglio per molto tempo. Conservate
questo manuale per la consultazione quando sarà
necessaria.
www.daelectronics.com

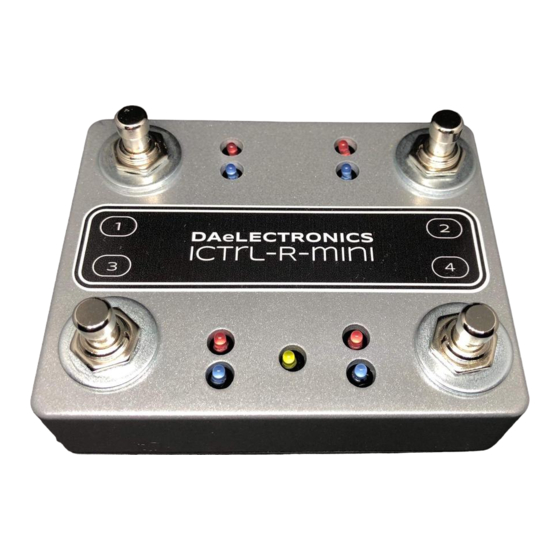

iCtrl-R-mini
pocket MIDI CONTROLLER
DAeLECTRONICS
iCtrl-R mini
info@daelectronics.com
da_electronics
daelectronics pedals
daelectronicscontroller
Thank
you
very
much
DAeLECTRONICS iCtrl-R mini
manual carefully to learn about all the functions of the
so that you will be able to use it fully for
iCtrl-R mini
a long time. Keep this manual in a convenient place for
reference when necessary.
for
purchasing
the
. Please read this
Advertisement
Table of Contents
Related Manuals for DAELECTRONICS ICTRL-R-MINI
Summary of Contents for DAELECTRONICS ICTRL-R-MINI
- Page 1 DAeLECTRONICS . Per favore leggete questo manuale con . Please read this iCtrl-R mini DAeLECTRONICS iCtrl-R mini cura per imparare tutte le funzioni dell’ manual carefully to learn about all the functions of the iCtrl-R mini ed usarlo al meglio per molto tempo. Conservate...
- Page 3 Warning and Calibra t ion Warning: pay much attention when insert and remove your USB cable from the iCtrl-R Mini input. You could damage it irreparably!!! Calibration: a t the startup, after led check, the controller will start the waiting mode (all red led on). Pushing button 1 to 4 the related performance will be activated or holding button 1 for one second the calibration mode will be activated (blue led led blinking) Before you start using the Expression pedal (the pedal shall ALWAYS be disconnected / connected to the controller before energizing the controller...
- Page 4 Performance 2 Holding for 2 second button 2 while other performance are activated performance 2 will be activated (led 2 blinking and all other leds off) You can now select between 4 slots pushing one of the controller buttons (the related red will switch on while led 2 will still blink) You can now send control changes to switch on/off effects inside the slots as performance 1 above.
- Page 5 Leds Syncronizing Syncronizing the with FX inside patch. iCtrl iCtrl iCtrl iCtrl- - - - R mini R mini R mini R mini With this option for each of the 4 slot of the kemper performance you can sync the on/off status of leds on the mini with the on/off status of the effects inside kemper slots.
- Page 6 External Expression pedal When an expression pedal is connected to an iCtrl-R mini , it will be always active and communicates via the control change # 7 (values f rom 01 to 127). In addition when the pedal is set at minimum heel a CC #66 with value =0 will be sent after 800 millisecond, a CC #66 with value =127 will be sent when the pedal is at maximum toe setting after 800ms.
- Page 7 APPENDIX Bluetooth iPad & iPhone Download the app for iPad/iPhone https://itunes.apple.com/it/app/bluetooth-midi-connect/id1108321791?mt=8 Open the app and select iCtrl-R Mini Bluetooth > Connect Go to the App to be controlled (JAM UP, AMPLITUBE and other) and enjoy it ;) For Mac, you need to launch the Audio MIDI Setup utility from within OS X’s Utility folder (Finder>Applications>Utiltiies>Audio MIDI Setup). Then press CMD + 2 to open the MIDI studio (or navigate to Window>Show MIDI Studio).
- Page 8 LECTRONICS MADE IN ITALY www.daelectronics.com...
