DAeLECTRONICS
MANUALE D'USO – OPERATIONAL MANUAL
Grazie per aver acquistato il
. Per favore leggete questo manuale con
iCtrl-R mini
cura per imparare tutte le funzioni dell'
ed usarlo al meglio per molto tempo. Conservate
questo manuale per la consultazione quando sarà
necessaria.
www.daelectronics.com

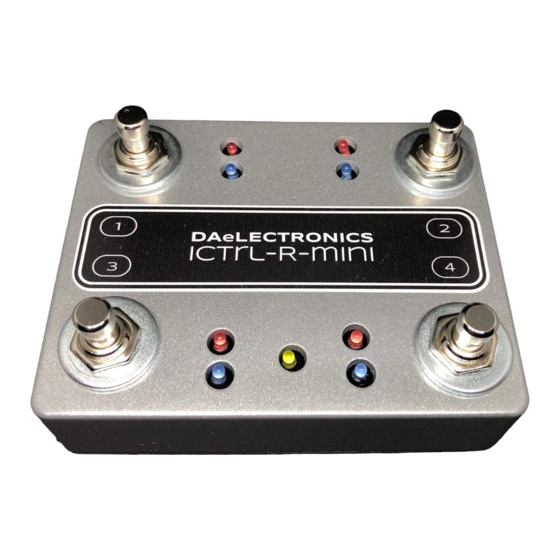

iCtrl-R-mini
pocket MIDI CONTROLLER
DAeLECTRONICS
iCtrl-R mini
info@daelectronics.com
da_electronics
daelectronics pedals
daelectronicscontroller
Thank
you
very
much
DAeLECTRONICS iCtrl-R mini
manual carefully to learn about all the functions of the
so that you will be able to use it fully for
iCtrl-R mini
a long time. Keep this manual in a convenient place for
reference when necessary.
for
purchasing
the
. Please read this
Advertisement
Table of Contents
Related Manuals for DAELECTRONICS ICTRL-R-MINI
Summary of Contents for DAELECTRONICS ICTRL-R-MINI
- Page 1 DAeLECTRONICS . Per favore leggete questo manuale con . Please read this iCtrl-R mini DAeLECTRONICS iCtrl-R mini cura per imparare tutte le funzioni dell’ manual carefully to learn about all the functions of the iCtrl-R mini ed usarlo al meglio per molto tempo. Conservate...
- Page 3 Warning and Calibration Warning: pay much attention when insert and remove your USB cable from the iCtrl-R Mini input. You could damage it irreparably!!! Calibration: b efore you start using the Expression pedal (the pedal shall ALWAYS be disconnected/connected to the controller before energizing the controller itself) you need to activate the "Calibration"...
- Page 4 During mode 2 you can switch to mode 1 holding for approx a second the switch 1 (exit from mode 2 without saving) or the switch 2 (exit from mode 2 saving modifications). Led blinking will notify the switch from mode 2 to mode 1. Assign Control Changes to effects inside software In Amplitube on iPad press with a finger on a virtual switch that you want to control with the switches on the controller until the appearance of the word "learn".
- Page 5 External Expression pedal When an expression pedal is connected to an iCtrl-R mini , it will be always active and communicates via the control change #10 (values f rom 01 to 127). In addition when the pedal is set at minimum heel a CC #66 with value =0 will be sent after 400 millisecond, a CC #66 with value =127 will be sent when the pedal is at maximum toe setting after 50ms.
- Page 6 APPENDIX Connecting via Bluetooth your (only BT version) iCtrl- R-mini 1. iPad & iPhone Download the app for iPad/iPhone https://itunes.apple.com/it/app/bluetooth-midi-connect/id1108321791?mt=8 Open the app and select iCtrl-R Mini Bluetooth > Connect. Go to the App to be controlled (JAM UP, AMPLITUBE and other). 2.
- Page 7 SWITCH 1 HOLD AND RELEASE - CC#5 > EFFECT 5 ON/OFF SWITCH 2 HOLD AND RELEASE - CC#6 > EFFECT 6 ON/OFF SWITCH 3 HOLD AND RELEASE - CC#7 > EFFECT 7 ON/OFF SWITCH 4 HOLD AND RELEASE - CC#8 > EFFECT 8 ON/OFF EXTERNAL EXPRESSION PEDAL: CC#10 Vslider: CC#127 ==========================...
- Page 8 LECTRONICS MADE IN ITALY www.daelectronics.com...
