HARVEY

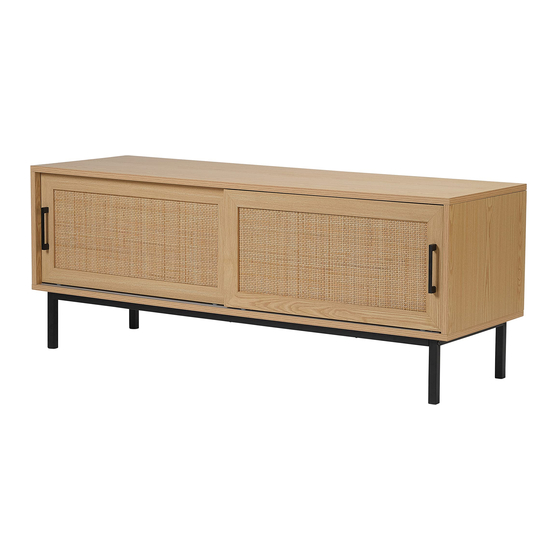

MEDIA CONSOLE
Item#: 64018
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
10112021
Advertisement
Related Manuals for Balkene Home HARVEY 64018
Summary of Contents for Balkene Home HARVEY 64018
- Page 1 HARVEY MEDIA CONSOLE Item#: 64018 ATTACH YOUR RECEIPT SAVE THESE INSTRUCTIONS Keep a copy of your proof of purchase FOR FUTURE REFERENCE. or order confirmation, which will be needed if you need to contact us about warranty coverage. Purchase date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: Call toll-free...
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the "Parts List." If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble this product. -
Page 3: Parts List
PARTS LIST PART DESCRIPTION HARDWARE CONTENTS Top Panel Left Side Right Side Center Divider Bolt Track Pin Screw Shelf Bracket 6x35mm 4x30mm Bottom Panel Qty: 12 Qty: 12 Qty: 4 Qty: 10 Qty: 4 Back Panel Adjustable Shelf Base Support Handle Screw Bolt Hex Bolt... - Page 4 ASSEMBLY Assemble the base of the unit by joining the Base Supports and Leg Assemblies . Fasten with 4 Hex Bolts as shown. Tighten using the Hex Wrench Hardware Required: Hex Bolt (6x40mm) x4 Hex Wrench Place the Bottom Panel upside-down (groove and door track facing down).
- Page 5 ASSEMBLY Paying attention to orientation, slide the Left Side , Right Side , and Center Divider onto the Cam Bolts in the Base Panel . Fasten the components together by inserting Cam Nuts into the holes adjoining each Cam Bolt and turning clockwise to secure.
- Page 6 ASSEMBLY Choose the desired height to install the Adjustable Shelf . Insert the peg of each Shelf Bracket into the appropriate holes in the interior of the right compartment of the unit, with the horizontal tab at the top. Slide the Adjustable Shelf into place on top of the Shelf Supports.
- Page 7 EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
