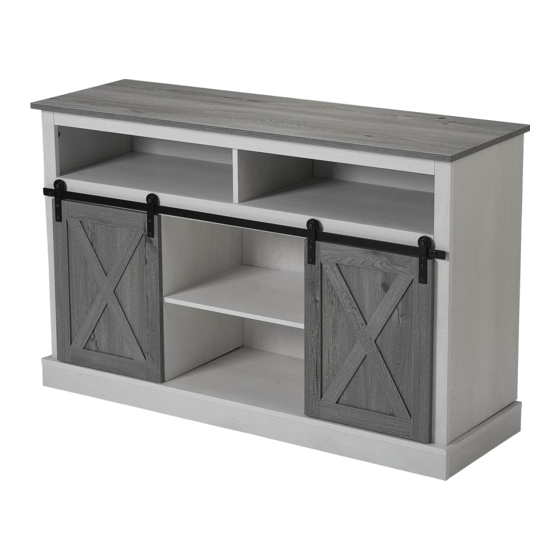

ARCADIA
MEDIA CONSOLE
Item#: 64012
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
09302021
Advertisement
Table of Contents
Related Manuals for Balkene Home ARCADIA 64012
Summary of Contents for Balkene Home ARCADIA 64012
- Page 1 ARCADIA MEDIA CONSOLE Item#: 64012 ATTACH YOUR RECEIPT SAVE THESE INSTRUCTIONS Keep a copy of your proof of purchase FOR FUTURE REFERENCE. or order confirmation, which will be needed if you need to contact us about warranty coverage. Purchase date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: Call toll-free...
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the "Parts List." If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble this product. -
Page 3: Parts List
PARTS LIST DESCRIPTION DESCRIPTION DESCRIPTION PART PART PART Base Panel Right Divider Top Panel Interior Shelf Top Face Frame Base Front Left Side Center Shelf Base Left Side Right Side Side Backer Base Right Side Center Divider Center Backer Base Back Center Face Frame Top Shelf Door... -
Page 4: Hardware Contents
HARDWARE CONTENTS Cam Bolt Cam Nut Dowel Shelf Bracket Screw 6x35mm 6x30mm 4x12mm Qty: 31 Qty: 31 Qty: 54 Qty: 8 Qty: 2 Backer Bracket Screw Screw Screw Screw 4x35mm 4x50mm 4x65mm 3x16mm Qty: 16 Qty: 12 Qty: 3 Qty: 10 Qty: 16 Hex Wrench Hex Bolt... - Page 5 ASSEMBLY ASSEMBLY NOTE: Use a Phillips-head screwdriver to tighten each Cam Bolt you Insert Cam Bolts into the indicated holes in the install until its threads are fully inserted. Left/Right Dividers . Use a Phillips-head screwdriver to tighten. Hardware Required: Cam Bolt x4 Place Dowels in the 2 holes between each...
- Page 6 ASSEMBLY Attach the Door Rail to the Center Face Frame with 3 Hex Bolts . Use the Hex Wrench tighten the Hex Bolts. Hardware Required: Hex Wrench Hex Bolt x3 Place Dowels in the 2 holes between the Cam Bolts on the Center Face Frame Insert the Cam Bolts and Dowels installed in the Center Face Frame into the corresponding holes in...
- Page 7 ASSEMBLY Insert Dowels in the top edges of the Left/Right Dividers Insert the Cam Bolts installed in the underside of the Top Shelf into the holes in the top edges of the Dividers. Secure by inserting a Cam Nut into each of the adjoining holes in the insides of the Dividers.
- Page 8 ASSEMBLY Insert 5 Dowels into the indicated holes on the Left Side Insert the Dowels and Cam Bolts 1 installed in the Left Side into the corresponding holes in the left edge of the Top Shelf /Center Face Frame Secure by inserting a Cam Nut into each of the 2 adjoining holes in the underside of the Top Shelf.
- Page 9 ASSEMBLY Install a Cam Bolt in each Base Side Place a Dowel 3 into either end of the Base Back . Insert the Cam Bolt installed in the Left Base Side into the left edge of the Base Back. Insert a Cam Nut in the adjoining hole and turn clockwise to secure the Cam Bolt.
- Page 10 ASSEMBLY Insert a total of 6 Cam Bolts into the indicated holes in the underside of the Top Panel A. Attach each Anchor Bracket near the back edge of the Top Panel using a Screw Hardware Required: Cam Bolt x6 Screw (4x12mm) x2 Anchor Bracket x2 Place 10 Dowels...
- Page 11 ASSEMBLY Choose the desired installation height for each Shelf . Insert the peg of each Shelf Bracket into the appropriate holes in the interior of the left and right compartments of the unit, with the horizontal tab rotated to the top. Slide the Shelves into place in the left and right compartments.
- Page 12 ASSEMBLY Secure each Hanger Roller to the Door Rail using a Screw Bolt shown. Hardware Required: Screw Bolt (4x12mm) x4 Use the Anchor Brackets anchor the unit to the wall for safety. The included hardware is appropriate for drywall installation and requires the use of a drill.
- Page 13 EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
