A.R.T. Furniture 245203-1707 Assembly Instructions

Thank you for purchasing this quality product from A.R.T. Furniture. Be sure to check all
packing material for parts which may have come loose inside the carton during shipment.
Identify and count all parts and compare with the parts list below.
Note: Some furniture is heavy, it is recommended that two people assemble this item to
avoid injury or damage.
STEP 1: Align the seat frame (2) with the chair back (1) and then loosely attach the seat
frame (2) to the chair back(1) using flat washer (D), lock washer (E) and bolt (A).
STEP 2: Continue (loose) assembly of the seat frame (2) to the chair back (1) using flat
washers (D), lock washers (E), and bolts (B) through the corner blocks at the back of the
seat frame (2).
No. Hardware List
5
" X 1
A
16
5
B
" X 3
16
Wrench
C
5
D " Flat Washer
16
5
E " Lock Washer
16
5
F " NUT
16
1
G " X1
4
Page 1
ASSEMBLY INSTRUCTIONS
Qt.
1
" Bolt
1
4
1
" Bolt
4
4
1
13
13
4
1
" Bolt
2
2
! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE !

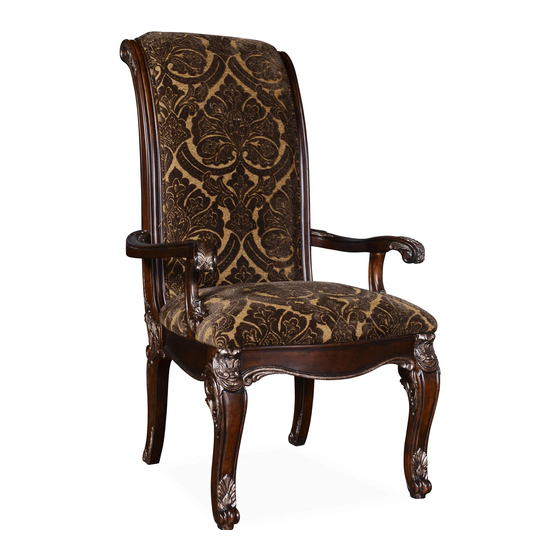

UPH. BACK ARM CHAIR
PARTS LIST
DESCRIPTION
1
2
Arm
245203-1707
8/6/2015
