BENDIX R-12V Installation Instructions Manual
  1. Manuals
  2. Brands
  3. BENDIX Manuals
  4. Control Unit
  5. R-12V
  6. Installation instructions manual

BENDIX R-12V Installation Instructions Manual

Universal service replacement relay valves kit
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
BENDIX
R-12
& R-14
®
®

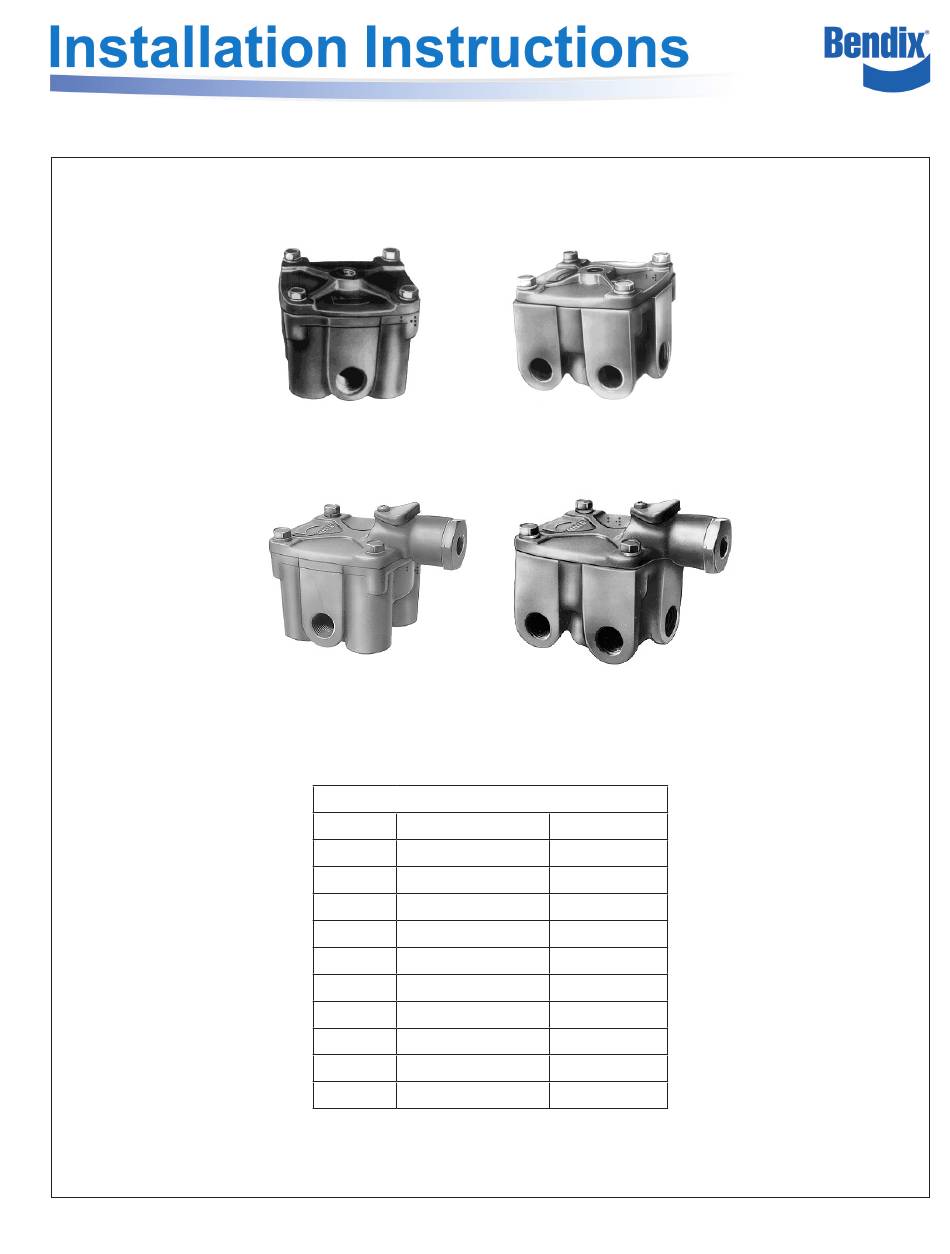

Figure 1 – Bendix
