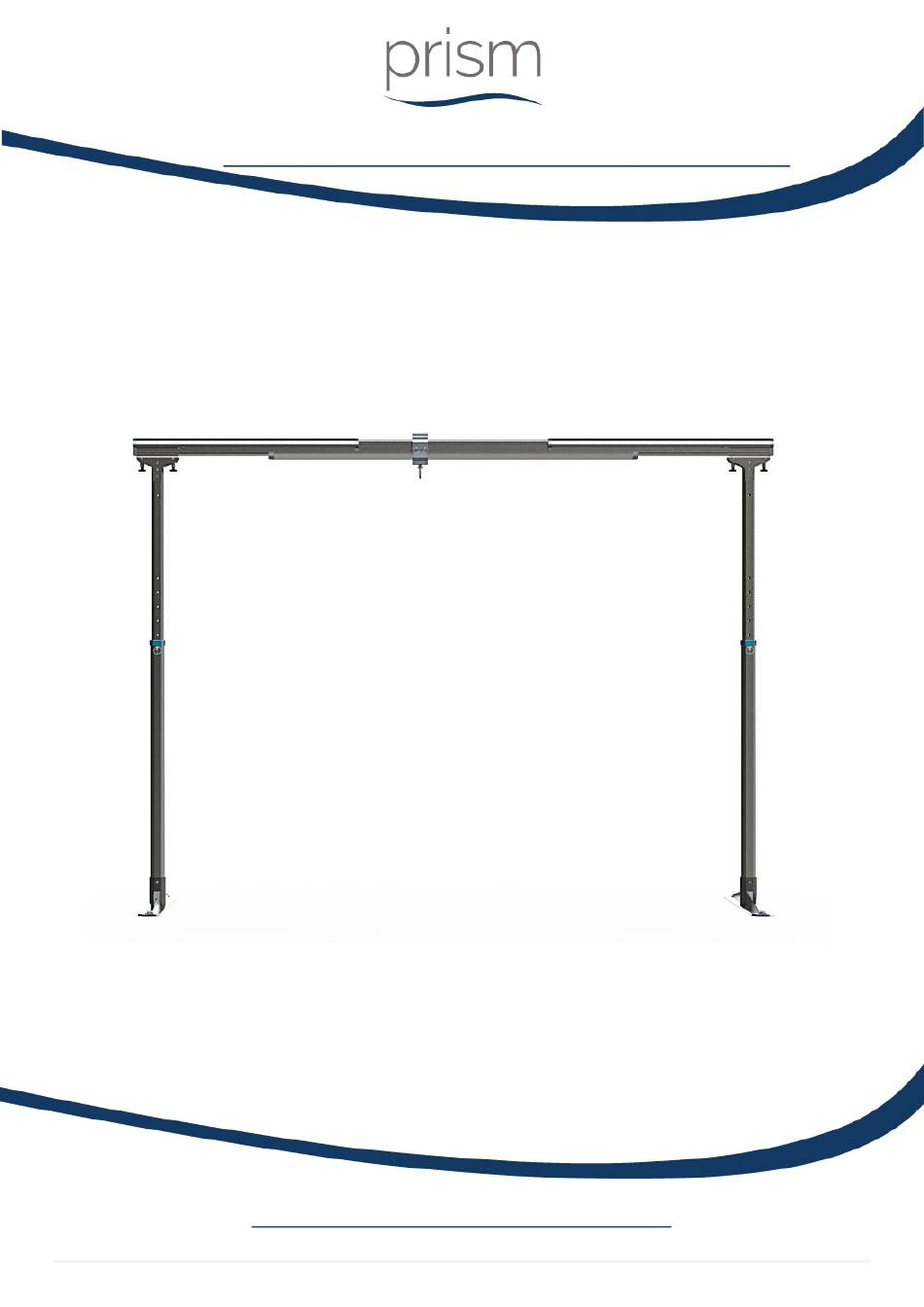

- Page 1 FSG200 Portable Gantry Pre Sales Document Doc No. 993018 Revision of document: A Revision Date: 08.06.2021...
- Page 2 Contents Intended Use ............................3 Warning Notes ............................ 3 Operating Environment ........................3 Technical Specification ..........................4 FSG Gantry Dimensions ........................4 Specifications............................4 Environmental - Storage and Operating Conditions ................5 Normal operating conditions ......................5 Shipping and storage conditions ......................5 Maintenance ............................
- Page 3 ALL OPERATORS should have read the operating instructions and appreciate this warning section. FSG200 are less stable on sloping surfaces. Prism medical recommend that the install of the FSG200 is on a flat and level surface.
- Page 4 Technical Specification 2.1 FSG Gantry Dimensions All dimensions below are shown in millimetres. Figure 15 2.2 Specifications Dimensions Maximum Height 2508mm Lowest Height 2141mm Maximum length 3387mm Minimum Length 2445mm Internal maximum clearance 3052mm Internal minimum clearance 2102mm Table 1 Weights Safe Working Load (SWL) 200 kg...
- Page 5 +35°C to 70°C (95⁰F to 158⁰F) non-condensing at a water vapour pressure up to 50hPa. Maintenance No service is to be carried out on a Prism FSG200, while transferring a person to reduce the risk of injury. Service must be completed by a Prism Medical UK authorised Service Engineer.
- Page 6 Cleaning Please follow the cleaning guidelines below on cleaning and disinfecting the Gantry. 5.1 General cleaning It is recommended to clean the FSG200 and accessories before the use by a different patient, reducing the risk of cross–contamination. The exterior of the FSG200 can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet.
- Page 7 993051 – Revision A P a g e | 7 of 8...
- Page 8 While every effort has been made to ensure the accuracy of information contained in this assembly and installation manual, no liability can be accepted by Prism Medical UK for any errors or omissions. Prism Medical UK operates a policy of continuous improvement.
