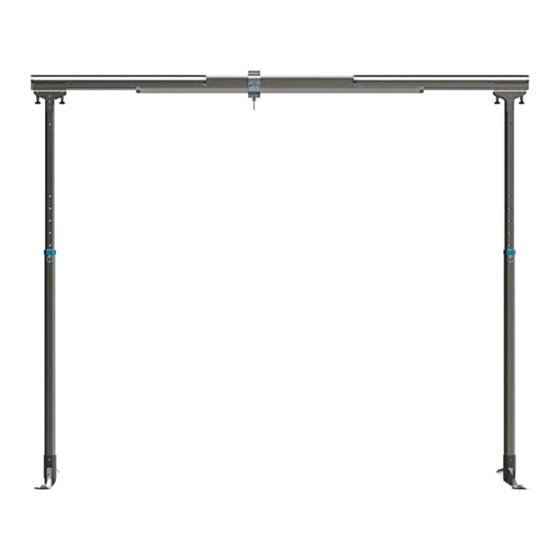

- Page 1 FSG200 Portable Gantry User Manual Doc No. 999018 Revision of document: A Revision Date: 30.04.2021...
-
Page 2: Table Of Contents
Contents Safety Instructions and Warnings ......................... 3 Introduction ..............................3 Manufacture ..............................3 European Authorised Representative ....................... 3 Symbols Used ..............................4 Contraindications / Limitations ......................... 5 Intended Use ..............................5 Warning Notes ..............................6 Operating Environment ............................ 6 Labeling ................................6 Components / Key Parts ............................ -
Page 3: Safety Instructions And Warnings
Gantry. The information in this manual is important for the safety of anyone near the FSG200 product and must be read and understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the gantry. -
Page 4: Symbols Used
1.4 Symbols Used The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and what they represent. Refer back to this Table when you are unsure of what a symbol represents. Consult instructions before use Caution –... -
Page 5: Contraindications / Limitations
A training program should be established by the facility to acquaint new operators with this equipment. The FSG200, and associated hoist are not toys. Do not use it for unsafe practices. Do not allow children to play with the •... -
Page 6: Warning Notes
ALL OPERATORS should have read the operating instructions and appreciate this warning section. 1. FSG200 are less stable on sloping surfaces. Prism medical recommend that the install of the FSG200 is on a flat and level surface. -
Page 7: Components / Key Parts
Components / Key Parts Please see below to familiarise yourself with the components of the FSG200 Gantry System. The image below show the contents of the free standing gantry. If you have not received all the components contact Prism Medical UK dealer immediately – contact details are provided on the last page of this manual. -
Page 8: Assembly Instructions
FSG200. The environment in which the FSG200 is situated in, whilst carrying out a transfer, is required to be on a flat surface with no steep inclines. -
Page 9: Hoist Assembly
3.3 Hoist Assembly Before using the FSG200, the components must be visually checked to ensure that they are not damaged. Should anything look unusual contact your local dealer prior to use. Failure to comply with this caution could result in serious injury to the operator, the individual being lifted and/or damage to the FSG200 and/or portable hoist unit. - Page 10 Prism medical recommend that two people should carry out the two following section Place the Track on the Support Posts, using the Locating Pin to align the track up with the posts. Figure 8 Secure the track in position by using the star handled blots to fix the track to the supporting Posts.
- Page 11 Insert the safety pin back into both support posts. Shown in figure 12. Figure 12 Secure the safety pins in position with a Lynch pin. Figure 13 K. If required. Turn the level adjuster at either end of the feet to prevent rocking or movement of the FSG These are here for minor adjustment only Figure 14...
-
Page 12: Final Inspection
Ensure that attachment procedure of their portable hoist is carried out correctly, in accordance with manufactures installation instructions. Prior to each lift, this will be completed by the user, the FSG200 and associated hoist, accessories and sling(s), must be visually inspected. Refer to the hoist, accessory and sling user guides for specific details regarding their inspection. -
Page 13: Technical Specification
Technical Specification 5.1 FSG Gantry Dimensions All dimensions below are shown in millimetres. Figure 16 5.2 Specifications Dimensions Maximum Height 2508mm Lowest Height 2141mm Maximum length 3387mm Minimum Length 2445mm Internal maximum clearance 3052mm Internal minimum clearance 2102mm Table 3 Weights Track 6.8 kg... -
Page 14: Expected Product Lifetime
+35°C to 70°C (95⁰F to 158⁰F) non-condensing at a water vapour pressure up to 50hPa. Disposal When the FSG200 has completed its life cycle and can no longer perform to its intended use safely the Free- standing Gantry must be disposed correctly. The following specifies the importance of correct disposal procedure including local laws and being environmentally friendly. -
Page 15: Fault Finding
General Inspection, Maintenance and Cleaning 9.1 Service No service is to be carried out on a Prism FSG200, while transferring a person to reduce the risk of injury. Service must be completed by a Prism Medical UK authorised Service Engineer. -
Page 16: Inspection
The exterior of the FSG200 can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning. Dry using a clean dry cloth. -
Page 17: Disinfecting (If Necessary)
9.3.2 Disinfecting (if necessary) Should the Gantry require a more thorough clean, the use of the Actichlor™ disinfectant product (which is widely available in tablet form and used throughout the health care industry) is recommended. Follow the manufacturer’s safety instructions for the use of the cleaning product before use to ensure safe use for the operator and the patient. -
Page 18: Warranty
Prism Medical UK incur liability for any consequential or unforeseeable losses. 3. This equipment guarantee shall be void if the equipment is not serviced by Prism Medical UK or its authorized agents, in accordance with manufacturer’s recommendations, or if any unauthorized persons carry out work on the equipment. -
Page 19: Service Record History
While every effort has been made to ensure the accuracy of information contained in this assembly and installation manual, no liability can be accepted by Prism Medical UK for any errors or omissions. Prism Medical UK operates a policy of continuous improvement.
