The system keeps in memory all the images of a selected visit; use the Prev and Next buttons on
the command bar to display, on the left half of the screen, all the other images.
 The Rotate button rotates the image displayed on the left 90° counterclockwise. Click the
button 4 times to bring the image back to the original display mode.
 The Store button on the command bar makes it possible to change the image on the right
with that currently displayed on the left. The image that was on the left is this way displayed
on the right as "image in memory".
 The Clear button clears the stored image. Namely, it makes it possible to clear the image on
the right (the one to which all the others are compared) and then store a different image in its
place. After the Clear button is clicked , the Store button is displayed again on the
command bar of the "Visit record" screen (as shown in Fig 48 A).
 The All button makes it possible to compare the selected image with all the other images of
the same patient stored in different visits. The button appears as selected when the
functionality is active. It is this way possible to use the Prev and Next buttons to display all
the available images.
 The Close button closes the "comparison" screen and brings back to the previous "Visit
Record" screen.
DIG UD IMB IU 0005 ENG V01

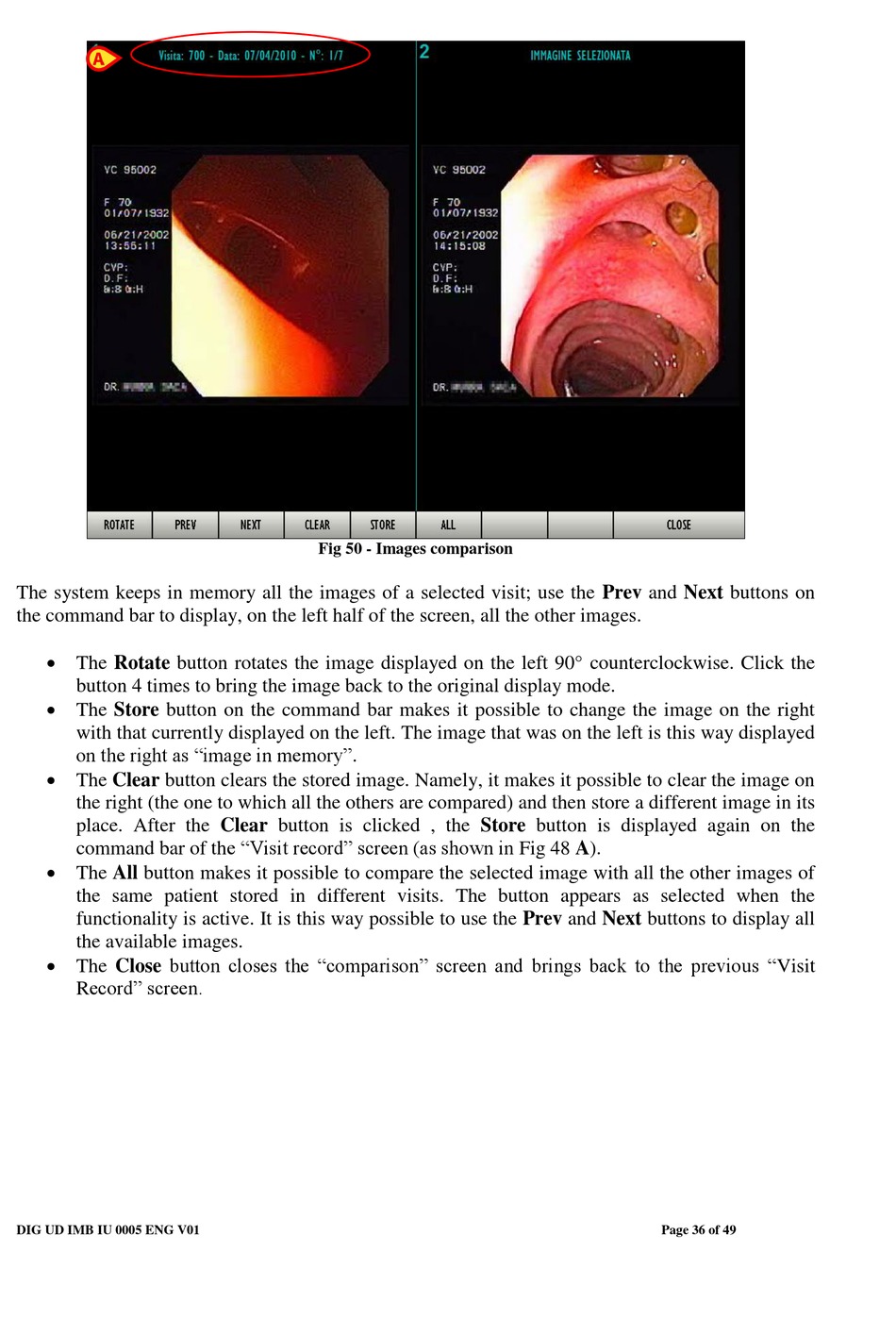

Fig 50 - Images comparison
