ASCOM DIGISTAT User Manual page 17

 Select the examination under which you want to record the new videos/images; otherwise
create a new visit, if this is the case (the examination selection procedure is described in
paragraph 1.3, the new examination creation procedure is described in paragraph 1.5).
 Click the Grab button. The images/videos acquisition screen opens (Fig 17).
The central part of the screen displays the images coming from the acquisition devices. On the left
there are three large buttons.
 Click the
picture.
The image is this way saved and becomes visible on the "Examination detail" screen (see Fig 3 for
an example) referring to the selected patient and visit.
 Click the
When the acquisition is in progress the screen changes in the way displayed in Fig 18: the Begin
button is selected and the Stop button is enabled.
DIG UD IMB IU 0005 ENG V01

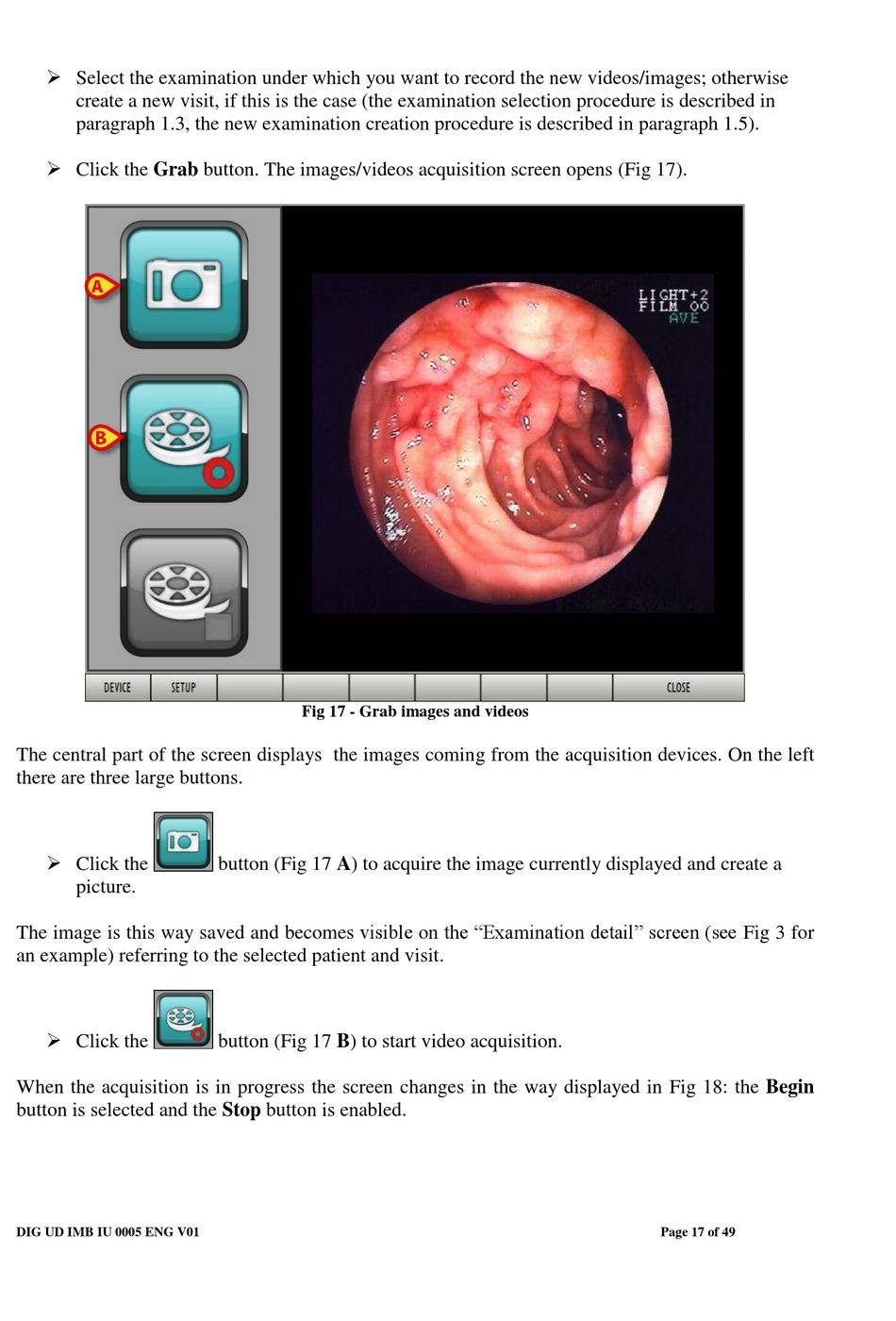

Fig 17 - Grab images and videos
button (Fig 17 A) to acquire the image currently displayed and create a
button (Fig 17 B) to start video acquisition.
Page 17 of 49
