Video acquisition goes on until the "stop" button
 Click the
The video will be saved an will become visibile on the "Examination details" screen referring to the
selected patient and visit (Fig 3 shows an example).

1.6.1. Acquisition screen command bar

The command bar of the "Acquisition screen" (Fig 19) contains three buttons.
 Use the Close button to close the "Acquisition screen" and display again the "Examination
details" screen (Fig 3).
 Use the Device button to select the acquisition device from an existing list. To do that
 click the Device button. The list of all the available devices is displayed on the left (Fig 20
A).
DIG UD IMB IU 0005 ENG V01

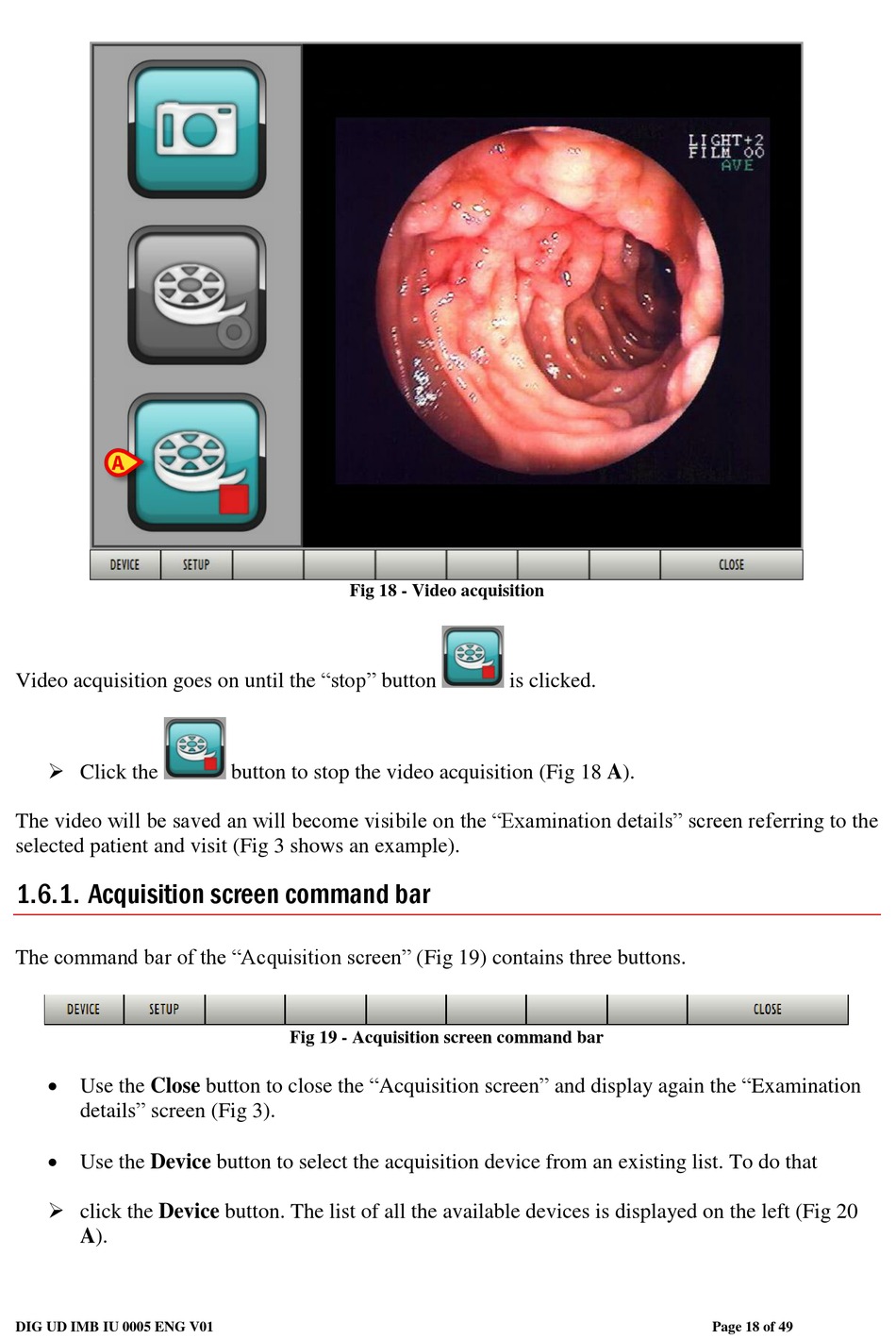

Fig 18 - Video acquisition
button to stop the video acquisition (Fig 18 A).
Fig 19 - Acquisition screen command bar
is clicked.
