Sample Open Wireless LAN

Figure 2-2 shows a sample open wireless LAN with a 3270
Systems Network Architecture/Synchronous Data Link
Control (SNA/SDLC) host, 5250 SNA/SDLC host, 6710
Access Point, two RC4030E Gateways, and two wireless
stations. Two or more RC4030E Gateways provide multiple
host connectivity options and support multiple
simultaneous protocols on the wired and wireless
infrastructure.
Host (5250
SNA/SDLC)
6710 Access Point
RT1100 Radio Terminal
(With 5250 Firmware)
2-4 RC4030E Gateway User's Guide
RS-232
RC4030E Gateway
or V.35
(Configured as 5394 Control Unit)
RS-232
or V.35
Host (3270
SNA/SDLC)
PEN*KEY 6400 Computer
(With 3270 Firmware)

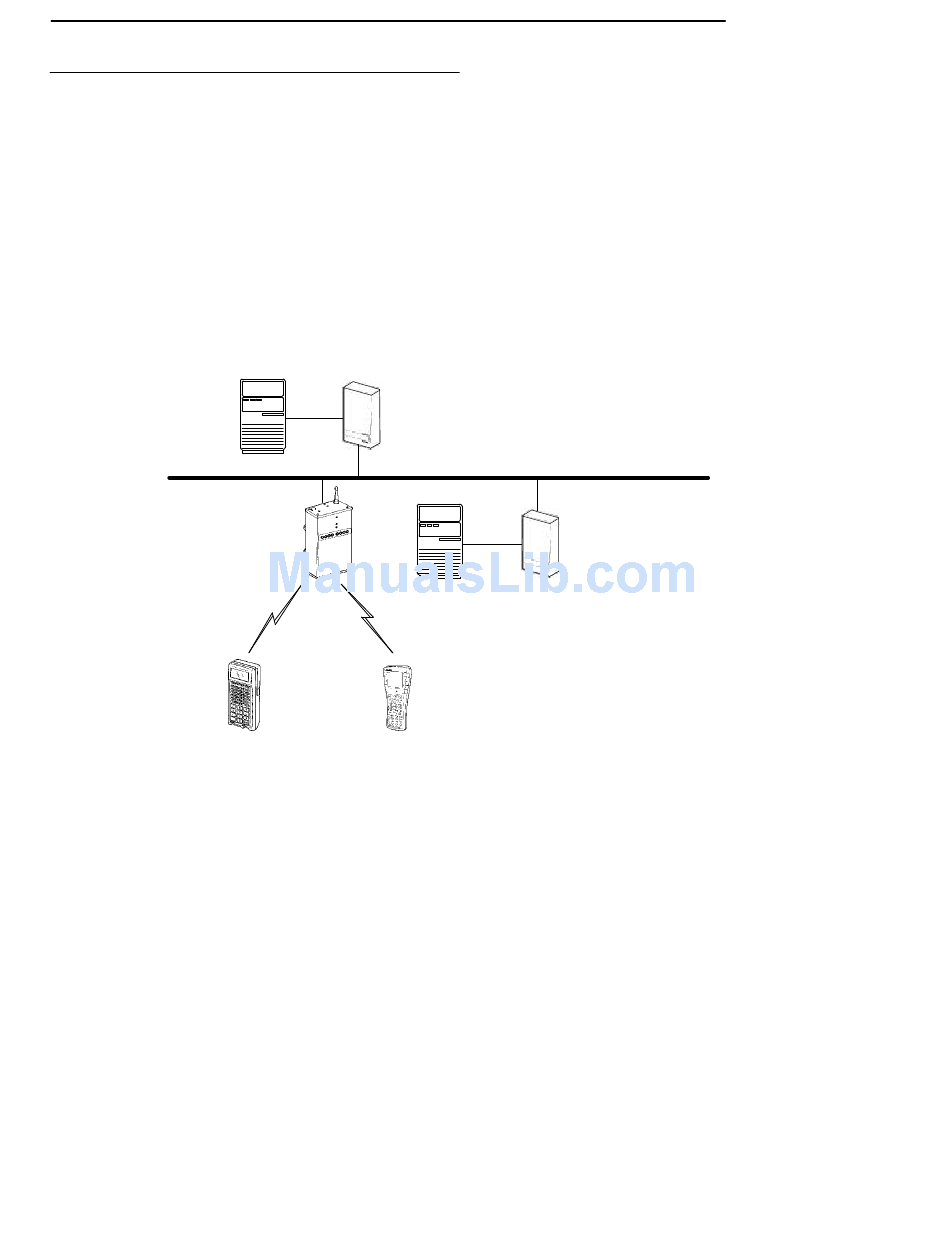

Figure 2-2
Sample Open Wireless LAN
RC4030E Gateway
(Configured as 3174
Cluster Controller)
