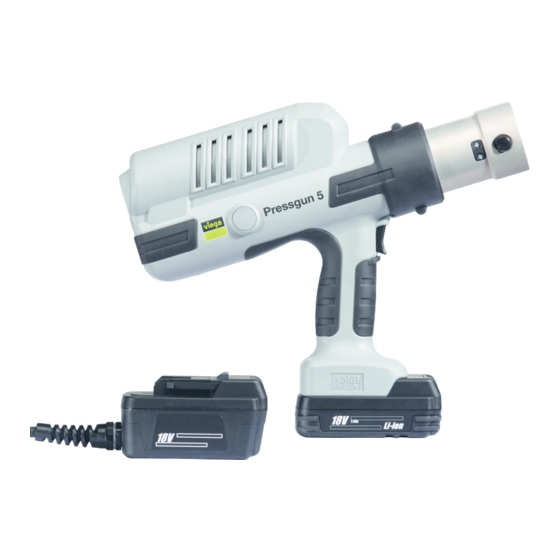

- Page 1 Instructions for Use Press machinePressgun 5 Model 0798.5...
-
Page 2: Table Of Contents
Table of contents Table of contents About these instructions for use 1.1 Target groups 1.2 Labelling of notes 1.3 About this translated version 1.4 Note on use of abbreviated terms Product information 2.1 Standards and regulations 2.2 General safety advice for electrical tools 2.3 Intended use 2.3.1 Areas of application... -
Page 3: About These Instructions For Use
About these instructions for use About these instructions for use Trade mark rights exist for this document; for further information, go to viega.com/legal. These instructions are a translation of the original operating instructions. Target groups The information in these operating instructions is directed at the fol‐... -
Page 4: About This Translated Version
Note on use of abbreviated terms For reading comfort, the following abbreviated terms are used in these instructions for use: Term Abbreviated form Viega system press jaws Press jaws Viega system press rings Press rings Viega system press tool Press tool... -
Page 5: Product Information
Standards and regulations The following standards and regulations apply to Germany / Europe. National regulations can be found on the relevant web site of your country at viega.com.au/standards Regulations from section: Technical data Scope / Notice Regulations applicable in Ger‐... - Page 6 Product information Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
- Page 7 Product information h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care a) Do not force the power tool.
- Page 8 Product information d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. lf contact accidentally occurs, flush with water. lf liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified.
-
Page 9: Intended Use
The Viega system press machine Pressgun 5 is intended for pressing press connectors into the respective piping systems. In combination with Viega system press jaws, the press tool is suitable for use with all Viega plumbing and heating installation systems up to and including dimension 108 as well as dimension ⅜... -
Page 10: Technical Data
2293.2 2293.1 5393.2 5393.1 2295.2 2295.1 0798.5 Pressgun 5 Press jaw set PT2 (dimensions 15 / 22 / 28) Press jaw set Raxofix (dimen‐ sions 16 / 20 / 25) Lithium ion rechargeable bat‐ tery (18 V / 2.0 Ah) - Page 11 Lithium ion rechargeable battery – depending on scope of delivery Rechargeable battery technology Lithium ions Capacity 18 V / 2.0 Ah 18 V / 4.0 Ah Charger Original charger (Viega) Charging time 45 min (18 V / 2.0 Ah) 60 min. (18 V / 4.0 Ah) Press machinePressgun 5...
-
Page 12: Operating Mode
32 kN. This presses the press connector into the pipeline. The Pressgun 5 operates with a voltage of 18 V DC. The power is sup‐ plied via battery or mains adapter. - Page 13 Product information The following are monitored: Retaining bolt Pressing time Voltage / battery capacity Service intervals Operating temperatures Significance of the LEDs Status Description Green flashing Low battery charge level – Recharge bat‐ tery. lit up Machine is ready for operation. flashing Machine is blocked –...
-
Page 14: Handling
Handling Handling Transport and storage NOTICE! Transporting and storing the rechargeable battery Observe the manufacturer's instructions for transport and storage. DANGER! Risk of crushing! Risk of getting your fingers and hands crushed. Store the press machine out of reach of children and unauthorised persons. -
Page 15: Commissioning
Handling Commissioning DANGER! Risk of electric shock! An electric shock can lead to burns and serious injury and even death. Check that the mains cable status is correct before commissioning the mains adapter. Unplug the mains plug before removing the mains adapter from the press machine. -
Page 16: Carrying Out The Pressing Process
Handling INFO! The figures show the typical use of a press jaw. Use the hinged adapter jaws in the same way. ▶ Slide the retaining bolt in as far as it will go. ▶ Press the On/Off button. The green LED is lit. The press machine is ready for operation. ▷... -
Page 17: Aborting The Pressing Process
Handling The press jaw must be able to lock properly during pressing. Ensure that there is enough space on the press point. Keep the press jaw contour and the area around the press point free from dirt and any objects that could hinder complete pressing. -
Page 18: Care And Maintenance
The tools are subject to normal wear and tear; for this reason, they must be maintained in regular intervals. Only service partners authorised by Viega may service and maintain the tools. See Ä Chapter 3.6.3 ‘Inspec‐ tion and maintenance’ on page 19. -
Page 19: Performing Checks
The functional safety and permanent leak tightness of the Viega press connector systems depend primarily on the functional and operational safety of the Viega system press tools, which comprise the Viega press machine plus Viega system press jaw, ring, chain, and hinged adapter jaw. -
Page 20: Disposal
Bottom: Version 2, from 2019, with annually changing colour shade 2 0 X X The Viega system press jaws and system press rings have a label showing the date when the next maintenance is due. Respect the main‐ tenance dates in order to guarantee safety and proper function. After completed maintenance, the Viega service partner will apply a new sticker. -
Page 21: Appendix
Appendix Appendix Warranty The warranty period for Viega system tools, such as press tools, press jaws, press rings, Prevista Dry Plus rail punch, pipe cutters, calibration devices, etc., is governed by the national statutory provisions of the country in which you are headquartered. However, it is at least two years after purchase and transfer of risk. - Page 22 Appendix Country Company Address/contact code Hamburger-Hochdruck- Billwerder Billdeich 601c, 21033 Hamburg Hydraulik GmbH +49 (40) 7511 900 / Service@HHHydraulik.com Hamburger-Hochdruck- Neue Gautinger Str. 21, 82110 Germering, Hydraulik GmbH – Süd +49 (89) 130 111 03 / Service@HHHydraulik.com Scherer`s Elektro Valhøjs Alle 171, 2610 Rodovre +45 (44) 843738 / steffen@scel.dk Tecno Izquierdo Avda.
- Page 23 Appendix Country Company Address/contact code MEP Hire Unit K, Ashley Drive Bothwell, G71 8BS Glasgow +44 800 587 5121 / hire@mephire.co.uk Broughton Plant Hire & Unit 10, Trade City, Ashton Road, RM3 8UJ Romford, Essex Sales +44 (1708) 383350 / hire@mbroughtonltd.co.uk Press machinePressgun 5...
- Page 24 Viega Pty Limited support@viega.com.au viega.com.au AU • 2022-06 • VPN220117...
