QUICK START GUIDE
OBDII / EOBD Code Reader
This Foxwell Code Reader is designed for analysing engine issues on OBDII compatible vehicles, including both
petrol & diesel. Suitable for both DIY / professional use, this code reader will read / clear OBDII codes and turn off
the check engine light. It also displays a range of live data / freeze frame data on a 2.4" TFT colour screen, along
with hot keys for an I/M readiness test. This code reader comes with lifetime free updates.
Please note that this code reader will only work on OBDII compliant vehicles. You will need to refer to your vehicle
manual, or use this QR code to reference our list of Australian OBDII compliant vehicles. For pre OBDII vehicles,
you will require a scan tool such as the ET2530.
Available Functions
● Read Codes / ● Freeze Frame Data
● Erase Codes / ● Live Data
● I/M Readiness / ● O2 Sensor Test
Pictures illustrated here are for reference only and this Quick Start Guide is subject to change without prior notice. For more detailed instructions, please refer to the User's Manual.
● On-board Monitor Test / ● Component Test
● Vehicle Information / ● Modules Present
● Unit of measure / ● DTC GUIDE

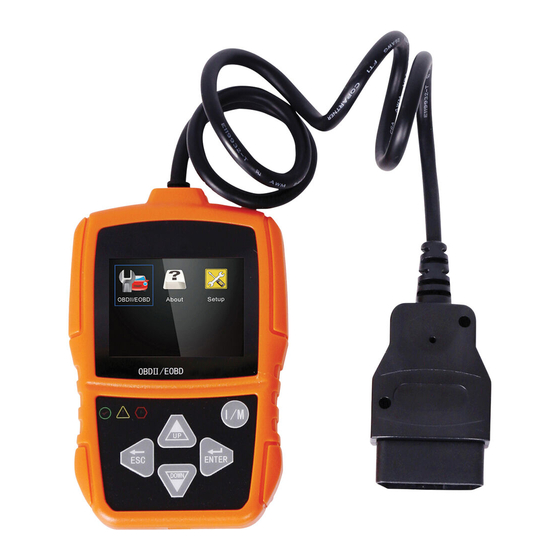

Code Reader Descriptions
B
D
C
H
A OBDII Cable
B LCD Display
C Green LED Display - indicates the engine system is
working normally (all monitors on the vehicles are active
and performing their diagnostic testing), and no DTCs
are found.
D Yellow LED Display - shows the tool has found a
possible problem. Pending DTCs exist and / or some of
the vehicle's emission monitors have not completed
their diagnostic testing.
QUICK START GUIDE
E Red LED Display - indicates there are problems in
one or more of the vehicle's systems. In this case, the
MIL lamp on the instrument panel will also be on.
F One Click I/M Readiness Key - quick checks the
emissions readiness state and drive cycle verification.
G UP Key
H BACK Key
I
ENTER Key
J DOWN Key
K USB Port
A
E
F
G
I
J
K
