S-11354

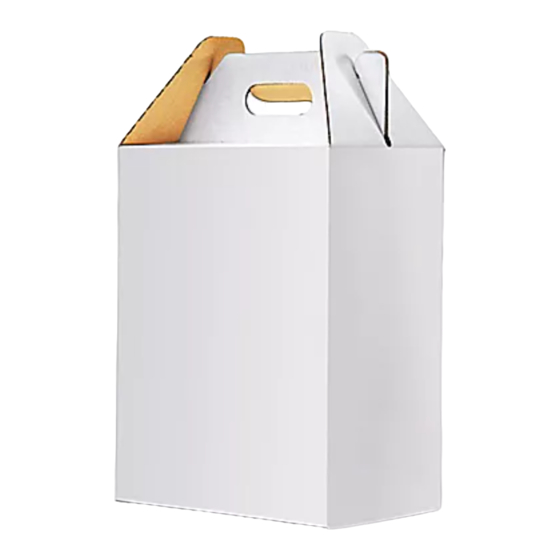

6 BOTTLE
WINE TOTE
B
A
1.
Push sides in toward the middle to open tote.
Flip upside down to assemble the bottom.
2. Bend flaps (A) at creases and fold inside tote.
There should be a gap between the two sides.
(See Figures 1 and 2)
3. Bend flaps (B) at creases and fold inside middle
slot created from step 2. (See Figure 3)
4. Flip the tote over. The completed tote should
have 6 compartments. (See Figure 4)
5. To close the top, bring hand holes together, and
push down. Slide the slotted side tabs over the
top until they lock into place.
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY
A
B
Layout Diagram
B
B
Figure 1
B
Figure 3
Para Español, vea página 2.
Pour le français, consulter la page 3.
B
Figure 2
Figure 4
0321 IS-11354
B
