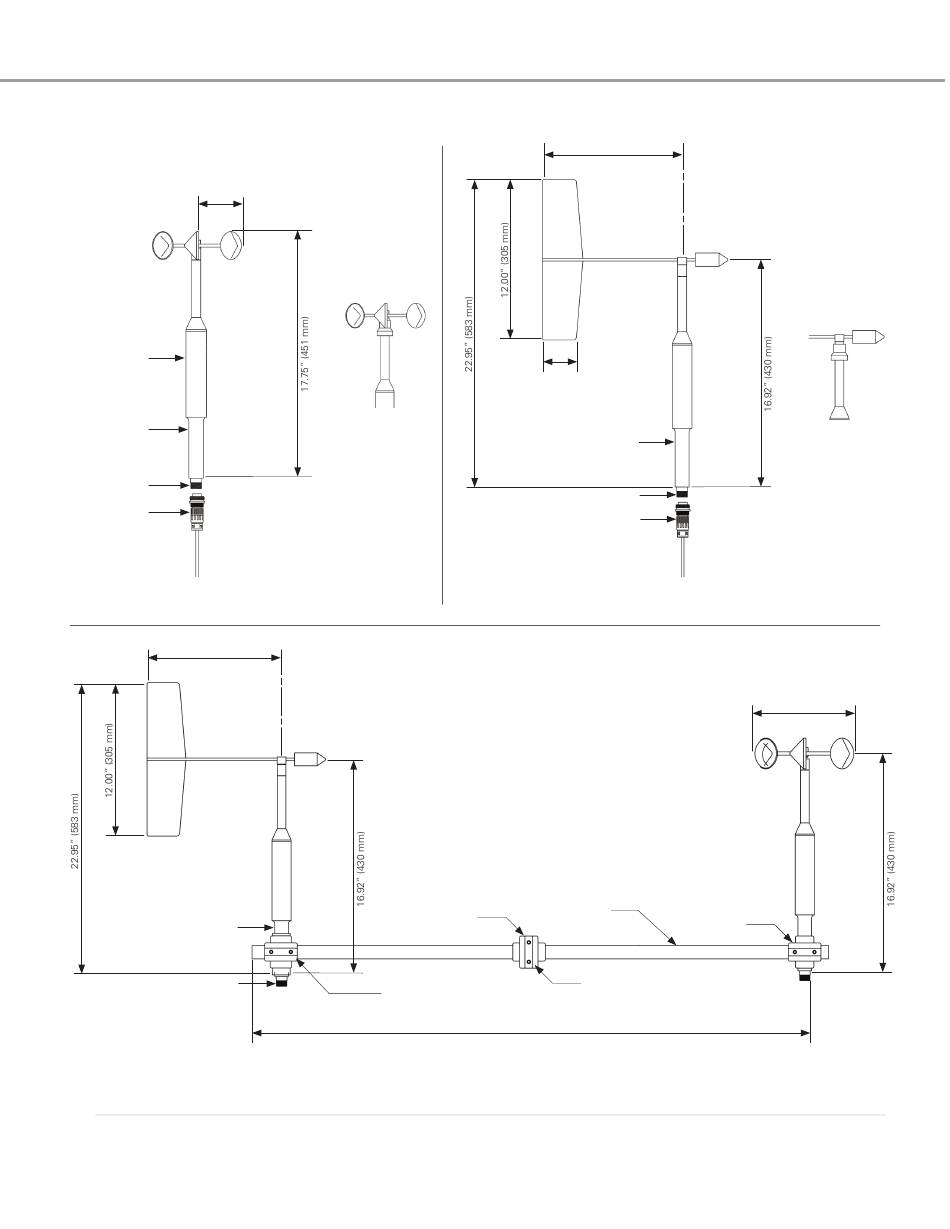

Technical Drawings
1.50 (38 mm) D
1.05 (27 mm)
DIAMETER MOUNTING
MS CONNECTOR
CABLE 1953
010C Wind Speed Sensor
10.37" (263 mm)
VANE ROTATION
DIAMETER
1.05 (27 mm) D
MS CONNECTOR
191-1 Mounting Arm & 010C-020D
B
Met One lnstruments,lnc.
1600 Washington Blvd. Grants Pass, Oregon 97526 Phone: 541.471.7111
Sales: sales@metone.com | Service: service@metone.com | Website: www.metone.com
4.50" (114 mm)
SHOWN WITH
5315 ICE SKIRT
(Optional)
C L
DIAMETER TO FIT
3/4" IPS PIPE
191-1 CROSS ARM ASSEMBLY
1553 MOUNTING ADAPTER
1686 ALIGNMENT ADAPTER
010C Wind Speed Sensor
020D Wind Direction Sensor
10.37" (263 mm)
VANE ROTATION DIAMETER
2.50" (64 mm)
1.05 (27 mm)
DIAMETER MOUNTING
MS CONNECTOR
CABLE 1957
020D Wind Direction Sensor
3/4" IPS PIPE
1" DIAMETER
1552 MOUNTING ADAPTER
60.00" (1524 mm)
C L
SHOWN WITH
5315 ICE SKIRT
(Optional)
8.00" (203 mm)
1552 MOUNTING
ADAPTER
