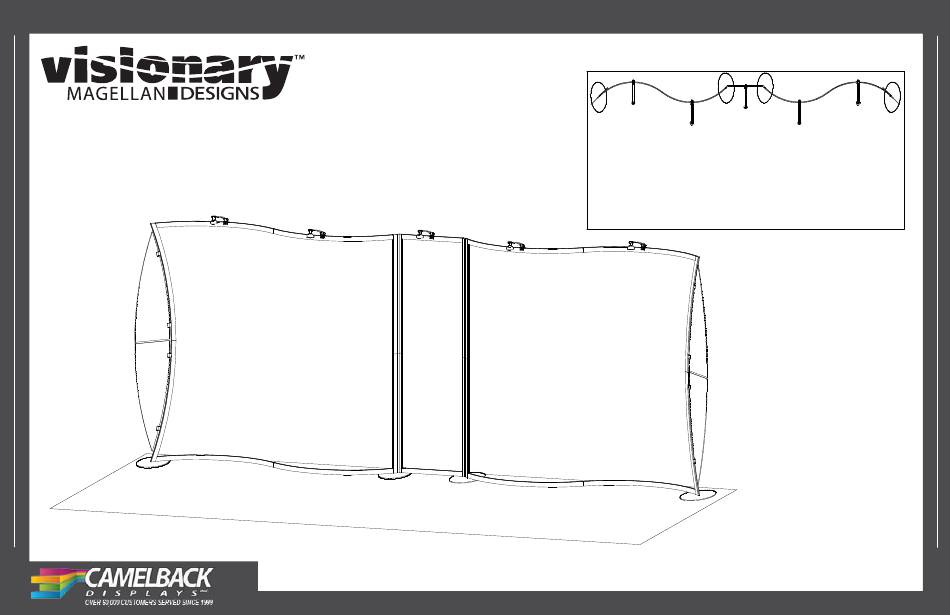

Order #XXXXX - General Information Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
Page 3
Step 1 Order #XXXXX - Backwall Assembly Part Number Description Base Plate Pressure Screw 48.115” Lower Curved Extrusion Note: Extrusions 5/5a and 4/4a 48.115” Upper Curved Extrusion must stay assembled when shipping. 47”h Lower Vertical Extrusion 47”h Upper Vertical Extrusion Velcro attched to LOWER 6a/6b 52.476”...
Page 4
Step 2 Order #XXXXX - Backwall Assembly (Cont’d) Part Number Description Base Plate 47”h Lower Vertical Extrusion 47”h Corner Extrusion 47”h Upper Vertical Extrusion Connection Velcro attched to LOWER 47”h Corner Extrusion back of extrusion bar Note: Extrusions 8/8a and 9/9 48.115”...
Page 5
Step 3 Order #XXXXX - Light and Wing Attachment Light Connection Attach Lights to Backwall where desired and tighten in place. Wing Attachment Slide A10 Clamp into groove of square extrusion. When desired location is found, tighten set screw to secure. Set- Screw Tighten black plastic...
