CAMELBACK Displays Zig-Zag Mesh Instructions

Zig-Zag Mesh Panel Frame Instructions

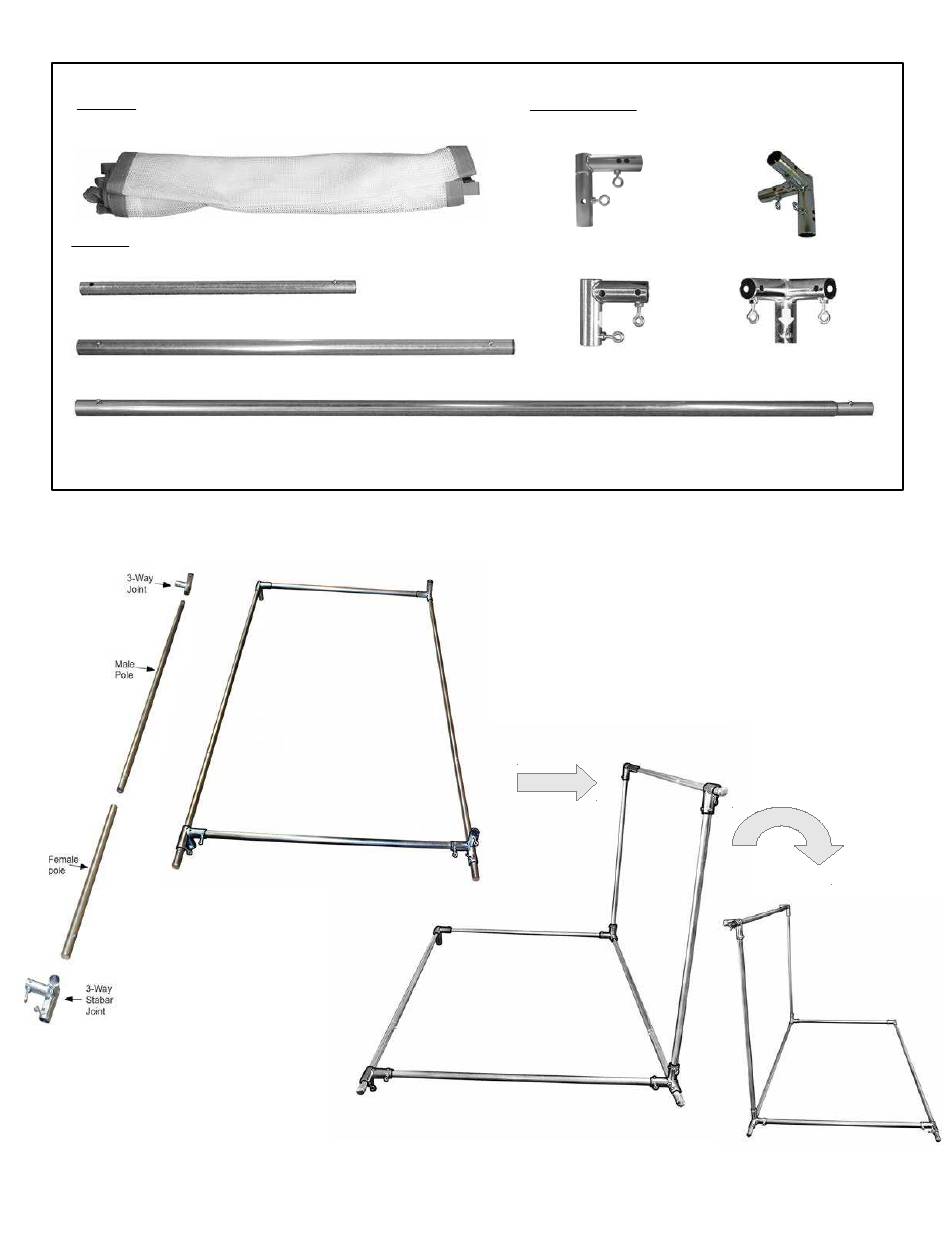

Parts:

(3) Mesh Panels

Poles:

(4) Female Poles with End Cap
(6) Horizontal Poles, snap button at both ends
(4) Male Poles
Plus: (6) Black Ball Bungees for Bundling Poles
(20) Thumbscrews for StaBar Joints
1. Assemble legs as illustrated, sliding joints onto leg pole. Assemble 2 legs using 3-way joints and
2 legs with Ell joints. Be sure to slide StaBar joints up past button at bottom of female pole.
2. Assemble first frame flat on
floor, using 2 legs with 3-way
joints. Orient left-side set of
3-way joints facing down and
right-side set facing up.

Hardware:

(2) Ell Joints
(2) StaBar Ells
3. Insert horizontal poles into
open stubs of 3-way joints on the
right, then add third leg to them
using Ell joints.
(2) 3-Way Joints
(2) StaBar 3-Ways
4. Tip unit to the right to
expose remaining set of
open 3-way stubs.
