CAMELBACK Displays HYBRID PRO HP-K-32 Manual

Hybrid pro 20x20 modular island kit 32
Hide thumbs

Advertisement

Quick Links

Download this manual

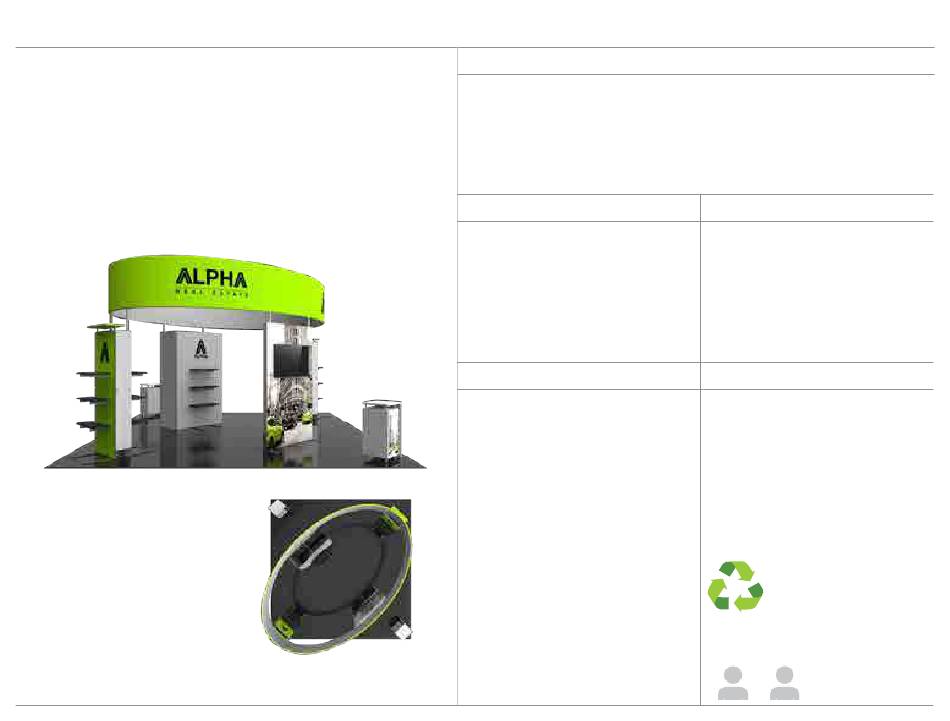

HYBRID PRO 20X20 MODULAR ISLAND KIT 32
HP-K-32
Hybrid Pro™ Modular Kit 32 is a modular 20ft x 20ft island exhibit that will captivate
your audience and draw them in to meet with you. Hybrid Pro Kit 32 offers a combi-
nation of both multimedia and plenty of shelving for small products to be on display.
Two displays anchor the exhibit on the sides - each includes six shelves, push-fit
fabric graphics behind the shelves, frosted plexiglass on the sides and a canopy that
includes puck lights to illuminate the products on display. The two other anchored
displays also offer functionality and features! Larger in footprint, one of the ground-
based displays features a storage closet with easy access and a locking door; one side
has a large/medium monitor mount and the other has three shelves for more product
display. The last wall incorporates push-fit fabric graphics and a large/medium mon-
itor mount for presentations. To top it all off, a large oval fabric structure provides
excellent real estate for company branding and messaging.
We are continually improving and modifying our product range and reserve the right to vary the specifications without prior notice.
All dimensions and weights quoted are approximate and we accept no responsibility for variance. E&OE. See Graphic Templates
for graphic bleed specifications.
01/17/2019
features and benefits:
- 11'5" tall island display
- No rigging required
- 19'w x 3'h oval fabric structure
- Two identical displays include six shelves,
canopy with puck lights, frosted plex sides
and push-fit fabric graphics
dimensions:
Hardware
Assembled unit:
279.19"w x 149.96"h x 54"d
7,092mm(w) x 3,309mm(h) x 1372mm(d)
Approximate Hardware weight:
2,412 lbs / 1095 kg
Approximate Graphic weight:
63 lbs / 29 kg
Shipping
Packing case(s):
1 FS-CREATE
1 WOODCREATE-H
Shipping dimensions:
FS-CREATE:
52"l x 29"h x 15"d
1,321mm(l) x 737mm(h) x 381mm(d)
Approximate total shipping weight:
107 lbs / 49 kg
WOODCREATE-H:
52"l x 29"h x 15"d
1,321mm(l) x 737mm(h) x 381mm(d)
Approximate total shipping weight:
107 lbs / 49 kg
- Locking strorage closet has monitor mount
on one side and three shelves on the other
- Wall display includes monitor mount for
multimedia display / presentaiton and
includes push-fit fabric graphics
- Ships freight
Graphic
Refer to related graphic template for more
information.
Visit:
www.exhibitors-handbook.com/
graphic-templates
additional information:
Graphic material:
Dye-sublimation zipper pillowcase fabric
Dye-sublimation SEG push-fit fabric
When included in a larger kit, a different
packaging solution will be listed to
accommodate all contents of the kit.
Individual packaging no longer provided.
This product may include the following
materials for recycle:
aluminum, select wood, fabric, cardboard,
paper, steel, and plastics.
2 person assembly recommended:

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYBRID PRO HP-K-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAMELBACK Displays HYBRID PRO HP-K-32

Summary of Contents for CAMELBACK Displays HYBRID PRO HP-K-32

  • Page 1 HYBRID PRO 20X20 MODULAR ISLAND KIT 32 features and benefits: HP-K-32 Hybrid Pro™ Modular Kit 32 is a modular 20ft x 20ft island exhibit that will captivate - 11’5” tall island display - Locking strorage closet has monitor mount your audience and draw them in to meet with you. Hybrid Pro Kit 32 offers a combi- - No rigging required on one side and three shelves on the other nation of both multimedia and plenty of shelving for small products to be on display.

  • Page 2: Included In Your Kit

    Included In Your Kit 5MM ALLEN-T x1 CB9 x28 IB2 x14 PHFC4-1200-L1-MCB9-SIDE x8 PHFC4-725-L-MCB9 x10 PM2S2-1200-A165-N x6 PH4-300-TG x3 PH2-578-L-L x2 PHFC4-1200-L1-MCB9 x4 CUS-PHFC4-725-L-MCB9-GR x2 PHFC2-1000-L1-MCB9 x8 CUS-PHFC2-750-MCB9-MCB9 x8 CUS-PS2-660-L-L x2...
  • Page 3 Included In Your Kit HP-K-32-T1 x2 HP-K-32-T2 x4 HP-K-32-T10 x12 HP-K-32-T5 x4 HP-K-32-T8 x2 HP-K-32-T9 x4 HP-K-32-T4 x4 HP-K-32-T3 x4 HP-K-32-T6 x2 HP-K-32-T7 x2 ES50 x14...
  • Page 4 Included In Your Kit HP-SOFFET-1 x2 HPC-01x2 PM4S3-MK-SHELF-UNIT x5 MM-M-T x2 SW-FOOT-650-LN x2 SW-FOOT-LN x8 FC-50-SPCR x8 CBE-50 x16 P90S-1200 x4 LN114-S2-650 x1 LP-CD-600-1200 x2 LP-600-1200 x2...
  • Page 5 Included In Your Kit HP-32-E2-G x1 HP-32-E3-G x1 HP-32-F2-G x1 HP-32-E5-G x1 HP-32-E6-G x1 HP-32-F3-G x1 HP-32-F5-G x1 HP-32-F6-G x1 CKSO x32...
  • Page 6 Included In Your Kit HP-32-E4-G x1 HP-32-E1-G x1 HP-32-A-G x1 HP-32-B-G x1 HP-K-32-G-G x1 HP-32-C-G x1 HP-32-D-G x1 HP-32-F1-G x1 HP-32-F4-G x1...
  • Page 7 Exploded Diagram HP-K-32 Section 1.2 Reference the Suggested Layout page for build location.
  • Page 8 Exploded Diagram HP-K-32 Section 1.2 Reference the Suggested Layout page for build location.
  • Page 9 Exploded Diagram HP-K-32 PM4S3-MK-SHELK Section 1.1, 1.2, 1.4 & 1.7 Reference the Suggested Layout page for build location. **THE PM4S3-MK-SHELF-UNIT MUST BE BUILT AND PUT IN PLACE BEFORE ATTACHING THE 2 FRAMES TOGETHER. ** TO START THE NEXT STEP REMOVE THE SHELF TOPS TO ATTACH GRAPHICS.
  • Page 10 Exploded Diagram HP-K-32 Section 1.2 & 1.7 Reference the Suggested Layout page for build location.
  • Page 11 Exploded Diagram HP-K-32 Section 1.1 Reference the Suggested Layout page for build location.
  • Page 12 Exploded Diagram HP-K-32 Section 1.1 Reference the Suggested Layout page for build location.
  • Page 13 Exploded Diagram HP-K-32 Section 1.3 Reference the Suggested Layout page for build location.
  • Page 14 Exploded Diagram HP-K-32 Section 1.3 Reference the Suggested Layout page for build location.
  • Page 15 Exploded Diagram HP-K-32 Section 1.2 & 1.7 Reference the Suggested Layout page for build location.
  • Page 16 Exploded Diagram HP-K-32 Section 1.1 & 1.6 Reference the Suggested Layout page for build location.
  • Page 17 Exploded Diagram HP-K-32 Section 1.5 Reference the Suggested Layout page for build location.
  • Page 18 Exploded Diagram HP-K-32 Section 1.5 Reference the Suggested Layout page for build location.
  • Page 19 Exploded Diagram HP-K-32 Section 1.5 Reference the Suggested Layout page for build location.
  • Page 20 Exploded Diagram HP-K-32 Section 1.1 & 1.6 Reference the Suggested Layout page for build location. Section 1.6 HPC-01 HPC-01 COMES PRE-ASSEMBLED Section 1.1 HPC-01...
  • Page 21 Suggested Kit Layout HP-K-32 Section 1.6 Section 1.4 Section 1.5 Section 1.2 Section 1.7 Section 1.1 Section 1.3...

  • Page 22: Connection Methods

    Connection Methods Connection Method 1: CB9 Connection Method 2: IB2 First, insert the corner connector into the extrusion while holding in the lock button. Then, slide First, insert the in-line connector into the extrusion while holding in the lock button. Then, slide the next extrusion onto the same corner connector again holding in the lock button.
  • Page 23 Connection Methods Connection Method 5: CBE-50 Connection Method 2: IB2 Connection Method 6: SW-FOOT-300/500/650 First, use the provides hex tool to loosen the two 5mm hex set screws. Next, compress the bracket First, loosen the thumb screws and channel bars on the stabilizing bases. Do not disassemble them. and apply it to the corner channel.
  • Page 24 Connection Methods Connection Method 9: Graphic Application Connection Method 5: CBE-50 Connection Method 2: IB2 Connection Method 10: CKSO First, insert the silicone edge frame corners into the frame graphic channel (points 1 through 4). Screw the NT toggle into the base of the CKSO barrel and then insert the TN into the channel of the Second, insert the silicone edge frame sides into the frame graphic channel (points 5 through 8).
  • Page 25 Connection Methods Connection Method 13: PS2 to PM2S2 Connection Method 5: CBE-50 Connection Method 2: IB2 Connection Method 14: CKSO First, connect PS2 to PM2S2 side with 1 channel. Once parts are connected to the proper channel, First attach the P90S to panels. Then lock them once in place with cam locks. Next step, is to attach use tool to tighten lock to scure the PS2 in place.
  • Page 26 Connection Methods Connection Method 17: ES50 TO PHFC4 Connection Method 2: IB2 Connection Method 18: ES50 TO PHFC2 Attach ES50 to PHFC4 extrusion. Make sure cam lock is loosed enough to fit inside desired channel. Attach ES50 to PHFC2 extrusion. Make sure cam lock is loosed enough to fit inside desired channel. Once in place tighten.

  • Page 27: Kit Assembly

    Kit Assembly Step by Step Step 17. Step 18. Gather the components to build Gather the components to build the frame. Use the Exploded the frame. Use the Exploded View and the Labeling Diagram View and the Labeling Diagram for part labels. for part labels.
  • Page 28 Kit Assembly Step by Step Step 21. Step 22. PH2-350-L-L Collect your extrusions and Locate the M5 thumbscrews, handtool. Using the provided LN100s, and the PM4S3- handtool, lock the extrusions into MM stabilizing bases. Slide the back channel of the three the LN100s into the middle channel PM4S3 faces as shown channel of the PM4S3.
  • Page 29 Kit Assembly Step by Step Step 25. Step 26. Attach side graphics will CKSO. Gather the components to build The CKSO will connect in the the frame. Use the Exploded View center channels of the outside of and the Labeling Diagram for part the frame.
  • Page 30 Kit Assembly Step by Step Step 29. Step 30. Attach side graphics will CKSO. Gather the components to attach The CKSO will connect in the mount. Use the Exploded View center channels of the outside of and the Labeling Diagram for part the frame.
  • Page 31 Kit Assembly Step by Step Step 33. Step 34. Gather the components to build Gather the components to build the frame. Use the Exploded View the frame. Use the Exploded View and the Labeling Diagram for part and the Labeling Diagram for part labels.
  • Page 32 Kit Assembly Step by Step Step 37. Step 38. Setup counters. Use the Exploded Attach soffets to proper area’s. View and the Labeling Diagram Use the Exploded View and the for part labels. Labeling Diagram for part labels. Reference Connection Method(s) 19 for more details.
