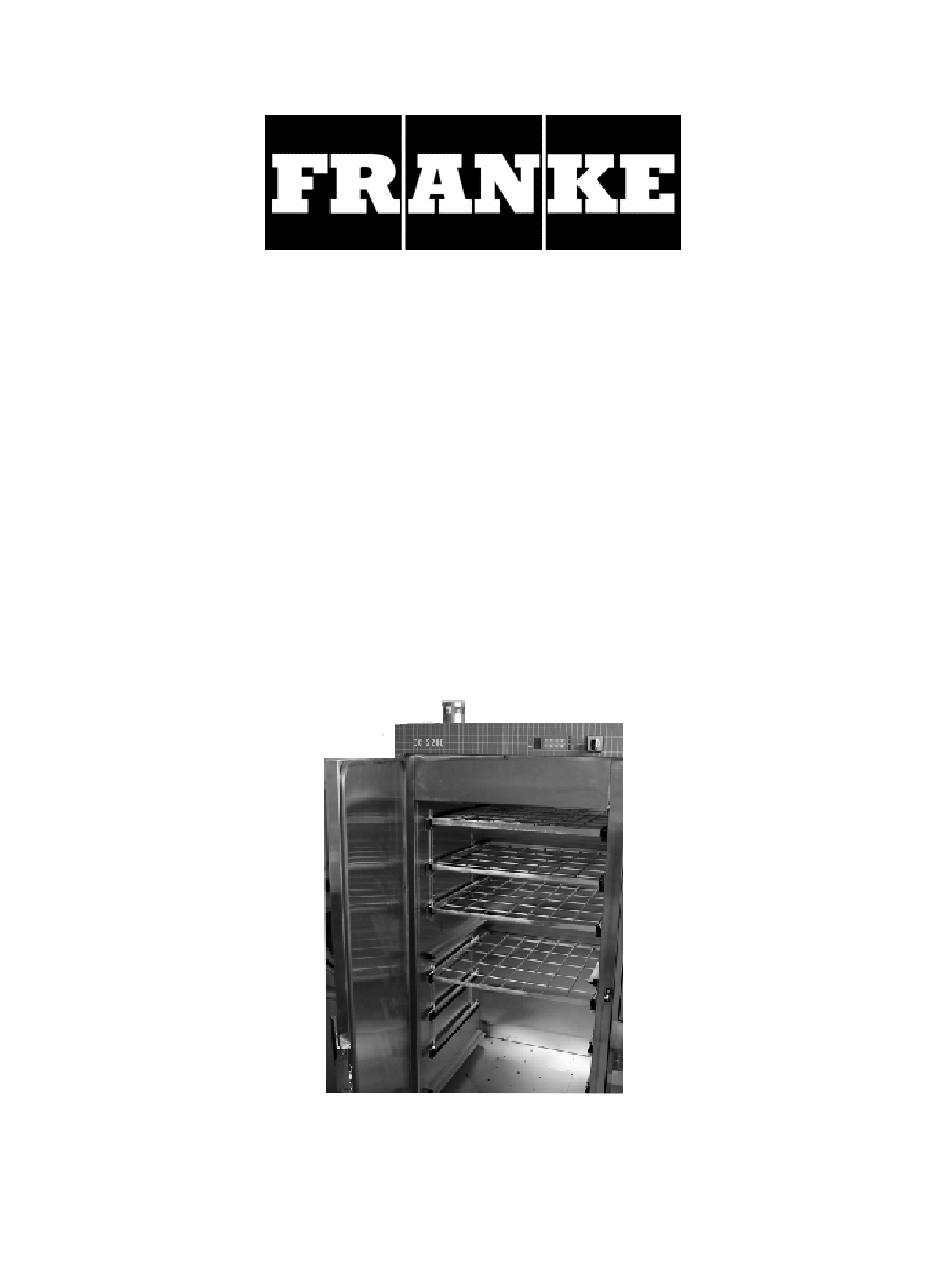

- Page 1 Franke Finland Oy User’s and Maintenance manual Rev. 16.05.2005 Serial number ___________________ DC 2200...
-
Page 2: Table Of Contents
Table of contents SAFETY INSTRUCTIONS........................3 1.0 GENERAL OF THE DRYING CABINET .................... 4 2.0 INSTALLATION INSTRUCTIONS...................... 4 3.0 OPERATION INSTRUCTION ......................5 4.0 PROGRAMS............................7 5.0 PROGRAMMING ..........................8 6.0 MAINTENANCE........................... 9 )..............10 PROGRAMME BUTTON CHECK MODE ONLY FOR CHECKING 6.2. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNINGS Chamber walls are hot. The goods and racks are hot to handle. Be aware of the 230 V voltage. -
Page 4: General Of The Drying Cabinet
GENERAL OF THE DRYING CABINET DC-2200 SINGLE DOOR DC-2200 X DOUBLE DOOR (PASS-THROUGH) The DC-2200 and DC-2200 X drying cabinets are designed especially for drying of anaesthetic equipment and hoses, surgical instruments, glassware, bowls, dishes, bottles etc. The chamber size is dimensioned for 8 shelves. Deko-2000 washer-disinfector´s shelves fit directly on the rails and any Deko´s spray racks get air blow through their tubes. -
Page 5: Operation Instruction
3.0 OPERATION INSTRUCTION CONTROL PANEL MAIN SWITCH TEMPERATURE REMAINING DRYING TIME PROGRAMME SELECTION BUTTONS PROGRAMMING BUTTONS CANCELLATION OF PROGRAMME START WITHIN 5 SECS CYCLE RUNNING (YELLOW) Door can be opened during an ongoing drying cycle - heating will stop. MALFUNCTION (FLASHING RED SIGNAL) Turn the main switch to O-position and thereafter back to position I again. - Page 6 HOW TO USE DRYING CABINET TURN MAIN SWITCH TO POSITION I. OPEN DOOR AND PLACE GOODS IN. AN-hose cassettes into the rails at the top in front. CLOSE DOOR. SELECT PROGRAM 1-5. Start program by pushing the program button. Yellow indicator will come on. PROG indicator shows the remaining drying time.
-
Page 7: Programs
4.0 PROGRAMS Prog. SPECIFICATION SYMBOL ADJUSTMENT RATE Temperature Time 30 min Temperature Time 35 min Temperature Time 40 min Empty (can be programmed) Empty (can be programmed) Adjustments Specification Symbol Rate Note one speed Temperature 20 - 90 Time 10-99 min or -- all the time... -
Page 8: Programming
5.0 PROGRAMMING Press buttons 0 and 3 for 5 sec’s. Release button 3 first and then button 0. F/I appears on display. Select the program button to be reprogrammed. Select fan speed by buttons + and - : 1 (only one speed available), (if 0 selected, the function of button ignored) Confirm settings by pressing the button 0. -
Page 9: Maintenance
6.0 MAINTENANCE CAUTION !! NO WATER ALLOWED ON THE TOP OF THE DRYING CABINET. 1. Daily Use non-aggressive washing agent and soft wash cloth, for flushing use wet wash cloth, wipe and dry. 2. Air filter Cleaning interval in normal use 3 months. Power connection plug must be disconnected before cleaning or replacing the air filter. -
Page 10: Programme Button Check Mode (Only For Checking)
6.1 programme button check mode (only for checking) 1. Press buttons 0, - and + simultaneously for 5 sec’s. 88/88 appears on display. 2. Press the program button to be checked. On display you can see (when button 4 pressed e.g.) 4F/1 = sub display = button 4 (1-5) -
Page 11: Technical Specifications
7.0 TECHNICAL SPECIFICATIONS 7.1 Dimensional drawing Electric line 3.5 m 7.1.2 Technical data Common for all: Voltage 230 V/400 V, 3-phase, 50 Hz Exhaust air 100 m Power rating 5,6 kW (heating 5,2 kW) Number of hoses 12 pcs Fuses 16 A Weight 165 kg... -
Page 12: Dimensional Drawing (Pass-Through Model)
7.2 Dimensional drawing (pass-through model) Electric line 3.5 m 7.2.2 Technical data Common for all: Voltage 230 V/400 V, 3-phase, 50 Hz Exhaust air 100 m Power rating 5,6 kW (heating 4,8 kW) Number of hoses 12 pcs Fuses 16 A Weight 165 kg Voltage... -
Page 13: Circuit Diagram
7.3 Circuit diagram L1-3 Phase advance HE Heating elements Main switch 2x2400 W C1 Contactor Transformer 12 V Fan Ventilator F1 Fuse 125 mA (T) Capacitor 6µF,400V F2 Fuse 2A (F) Overheating protector Output Input 1. Ventilator power 1 5. Common for all incoming 5. -
Page 14: Circuit Diagram / Japan Models
7.3 Circuit diagram / Japan models L1-3 Phase advance HE Heating elements Main switch 2x2000 W C1 Contactor Transformer 12 V Fan Ventilator F1 Fuse 315 mA (T) Capacitor 6µF,400V F2 Fuse 4 A (F) (2 pcs) Overheating protector Output Input 1. -
Page 15: Spare Parts Drawing
7.4 Spare Parts Drawing ELECTRICS... -
Page 16: Spare Parts List
7.5 Spare Parts List Code Description NOTE N23664A Lock N23546 Silicon sealing N22715A Fan G2E 160-AD01-21, 230 VAC N23485 Air filter, 2 pcs N22763 Heating element 220 V 1630/750 W, 2 pcs Heating element 200 V 2 x 2000 W only in Japan N22467 Microswitch 1066776... -
Page 17: Declaration Of Conformity
8.0 DECLARATION OF CONFORMITY Manufacturer: FRANKE FINLAND OY Address: Vartiokuja 1, 76850 Naarajärvi, FINLAND DC-2200 Hereby declares that: complies with the following Directives: - Machinery Directive (89/392/EEC, 91/368/EEC, 93/44/EEC) - Low voltage Directive (73/23/EEC) - EMC Directive (89/336/EEC, 92/31/EEC) and that the following harmonized standards have been applied: - EN 50081-1 Electromagnetic compatibility. -
Page 18: Guarantee Conditions
9.0 GUARANTEE CONDITIONS Dear Deko Customer, The Deko machines are manufactured with great care, prior to delivery they must pass an extensive quality control. If your machine shows any material or manufacturing defect, you will have a legitimate claim against the company from which you bought your Deko machine. - Page 19 Franke Finland Oy Guarantee certificate Model: Serial number: Installed & commissioned: The guarantee is valid for 1 year after installation and commissioning. Installer: Inspections: Inspector / Date Leakage test Test drive Electrical test Washing pressure test General inspection This product complies with the Medical Device Directive...
