Summary of Contents for Franke SU05
- Page 1 USER MANUAL SU05 FCS4048...
- Page 2 Read the user manual before working on the equipment. Keep the manual with the equipment and pass the manual on to the next user if the equipment is sold or transferred to a third party.
-
Page 3: Table Of Contents
Installation .................... 9 Intended use .................... 9 Non-authorized use ................... 10 Function.................... 10 Function of the FoamMaster .............. 10 Operation and care.................. 11 Malfunctions ..................... 11 Transport, storage, decommissioning............ 11 Disposal .................... 12 Technical data - SU05 ................ 13 iii / 16... -
Page 4: For Your Safety
Ensure that the machine and the power cord are not near any hot sur- faces such as gas or electric stoves or ovens. d) Ensure that the power cord is not pinched and does not chafe on sharp edges. User manual SU05... - Page 5 When transporting and installing the cooling unit, make sure that no part of the refrigeration circuit is damaged. b) Installation must only be performed by an authorized Franke specialist. c) The appliance must be installed in a room with sufficient space.
- Page 6 Cleaners must not find their way into drinks. CAUTION Spoiled milk Spoiled milk could represent a health hazard. a) Use only fresh, refrigerated milk. b) Observe the storage conditions for milk. c) Observe the shelf life of the milk used. User manual SU05...
- Page 7 Only use pasteurized or long-life milk. Do you have any questions that are not addressed in these instructions? Please do not hesitate to contact your local customer service partner, Franke Customer Service, or Franke Kaffeemaschinen AG in Aarburg. NOTICE Spoiled milk Insufficient cooling or hygiene can cause milk to spoil.
- Page 8 Do not use jets of water or steam for cleaning. d) Do not expose the device to the elements, such as rain, frost or direct sunlight. e) Place the device only on a level, stable surface. User manual SU05...
-
Page 9: Instructions
Franke Kaffeemaschinen AG Instructions | 2 INSTRUCTIONS Installation Assembly may only be performed by a specialist authorized by Franke. Tasks – Unpack the device – Check that the required free space (50 mm) has been left behind the de- vice –... -
Page 10: Non-Authorized Use

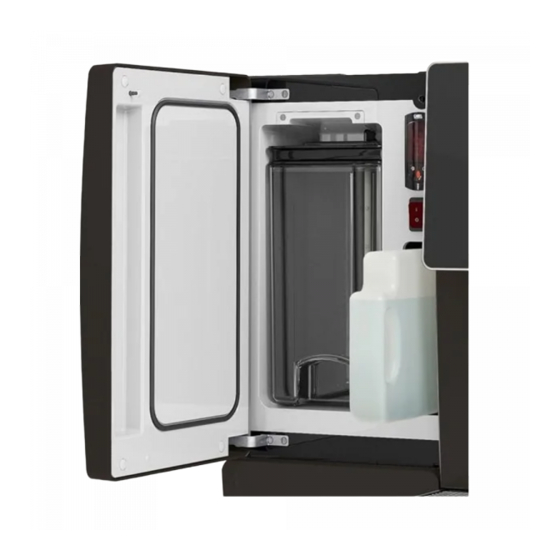

– Setting the cooling temperature – Monitoring the milk fill level – Preventing unauthorized access via a lockable door Function of the FoamMaster The FoamMaster also has the following functions: – Warming milk for the beverages – Creating milk foam User manual SU05... -
Page 11: Operation And Care
– Clean the device – Secure the device against accidents and do not set it up in an inclined position – Use suitable packaging for transport and storage – Comply with the ambient conditions provided in the technical data User manual SU05... -
Page 12: Disposal
The refrigerant inside the device must not be allowed to contaminate the environment. The illegal or improper disposal may be a crime and may lead to prosecution in accordance with the applicable laws. User manual SU05... -
Page 13: Technical Data - Su05
Franke Kaffeemaschinen AG Technical data - SU05 | 3 TECHNICAL DATA - SU05 Device type FCS4048 Milk container Cooling temperature 2.0−5.0 °C Ambient conditions Humidity: max. 80 % Ambient temperature: 10–32 °C Refrigerant R600a/12 g Climate class N/4 temperate climate suitable for operation at an ambient temperature: 16–32 °C... - Page 14 3 | Technical data - SU05 Franke Kaffeemaschinen AG Type Country Current consumption (SU05 MS EC) 0.3 A 1L N PE 1L N PE Voltage 115 V Frequency 60 Hz Power rating (SU05 FM CM) 1.44 kW Current consumption (SU05 MS EC) 0.5 A Connection...
- Page 16 Franke Kaffeemaschinen AG Franke-Str. 9 CH-4663 Aarburg Switzerland Hotline-Phone: +41 62 787 37 37 Fax: +41 62 787 97 37 Internet www.franke.com...
