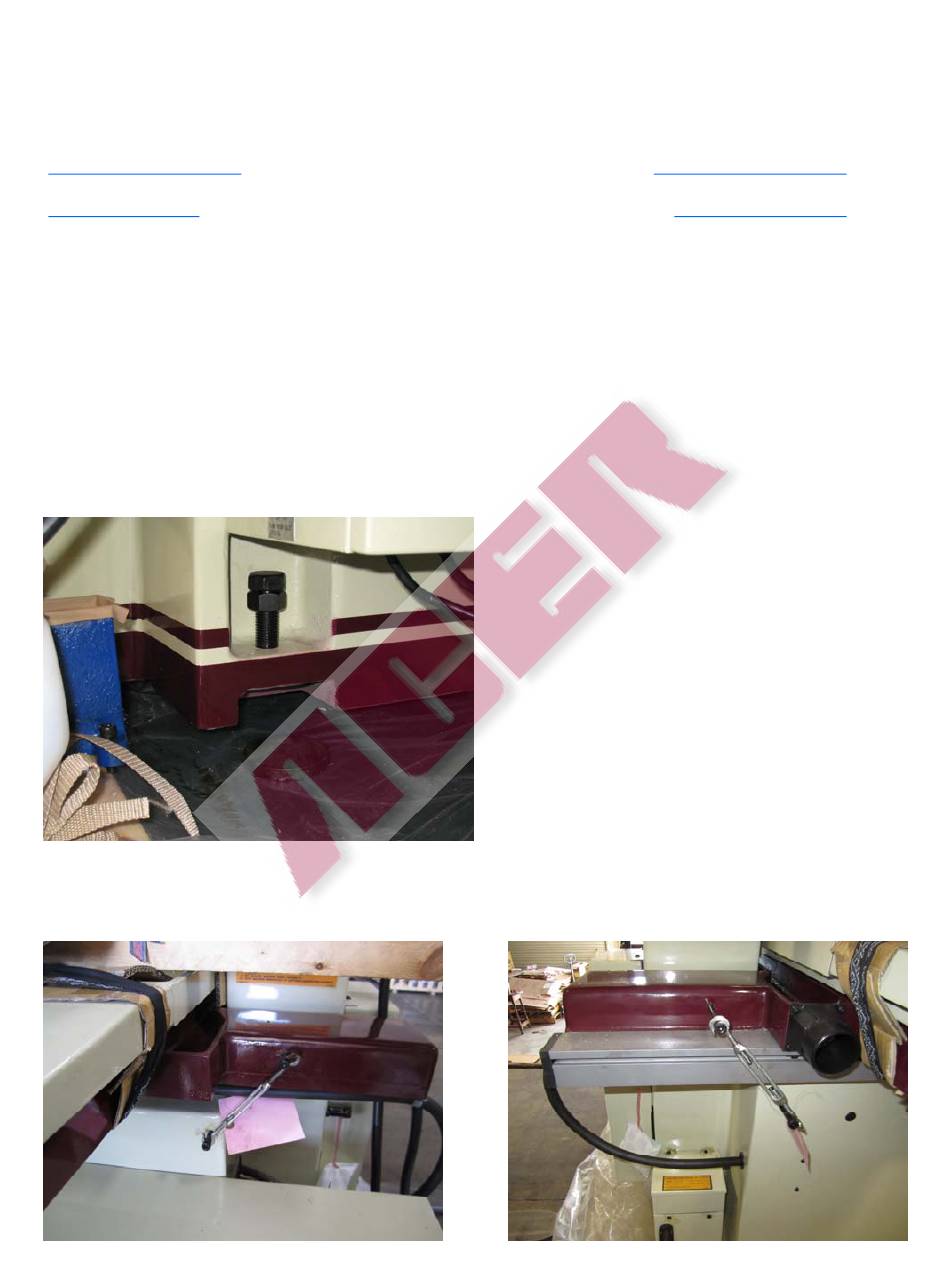

PROCEDURE TO SETUP SUPRA 818PD SURFACE GRINDER 1. Unwrap the machine and check out machine for any physical dam- age. If so, report to your dealer as soon as possible. Touch-up paint is inside the toolbox. Use it as needed.
3. Check input power that will be used for the machine. Power required for our machines are: 230V three phase (3Φ) or 460V three phase (3Φ). Power must be first specified upon ordering. Please connect the power to L1, L2, L3, Ground terminal as follows with minimum current of 15 amps (230V).
4. Hook up electronic conduct connectors and wire, from hydraulic system, one from dust suction and one from the dust suction and coolant system. 5. Connect two corresponding hydraulic hoses: A-A, B-B as labeled. 6. Fill up hydraulic oil (minimum 20 gallons) and lubricating oil . Make sure filling gauge is at F.
7. Turn on control. Make sure all the motors are running clockwise (spindle motor, hydraulic motor, cross-feed motor, vertical rapid motor, and coolant pump motor). 1) Release (pull) emergency button. (See Fig. 1) 2) Press spindle (See Fig. 2 & 3), hydraulic (See Fig. 4 & 5) and dust suction and coolant system buttons (See Fig.
Coolant On/Off Push Button Fig. 1 Fig 2. Tap wheel with an object. Make sure the wheel is not cracked. The sound should be clear and consistent. Fig.3 Push On and Off immedi- ately. Make sure spindle rota- tion is clockwise.
Fig. 4 Fig. 5 Make sure hydraulic motor ro- tation is clockwise. Fig. 6 Make sure the dust collector Fig. 7 Make sure the coolant pump is motor is running. running clockwise. clockwise.
Fig. 8 Make sure table crossfeed moving direction is correct. Fig. 9 Make sure Rapid Up/Down direction is correct. If opposite direction, please turn off main power by pushing emergency button. Switch any two power lines that go into the machine.
Should you have any questions or comments, please contact your local dealer first. They will then refer you to Acer 714-632-9701 (West Coast) or 732-752-9100 (East Coast) for further assistance.
