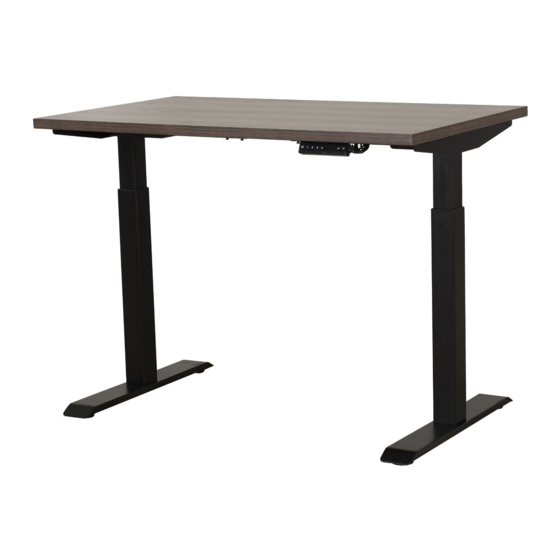

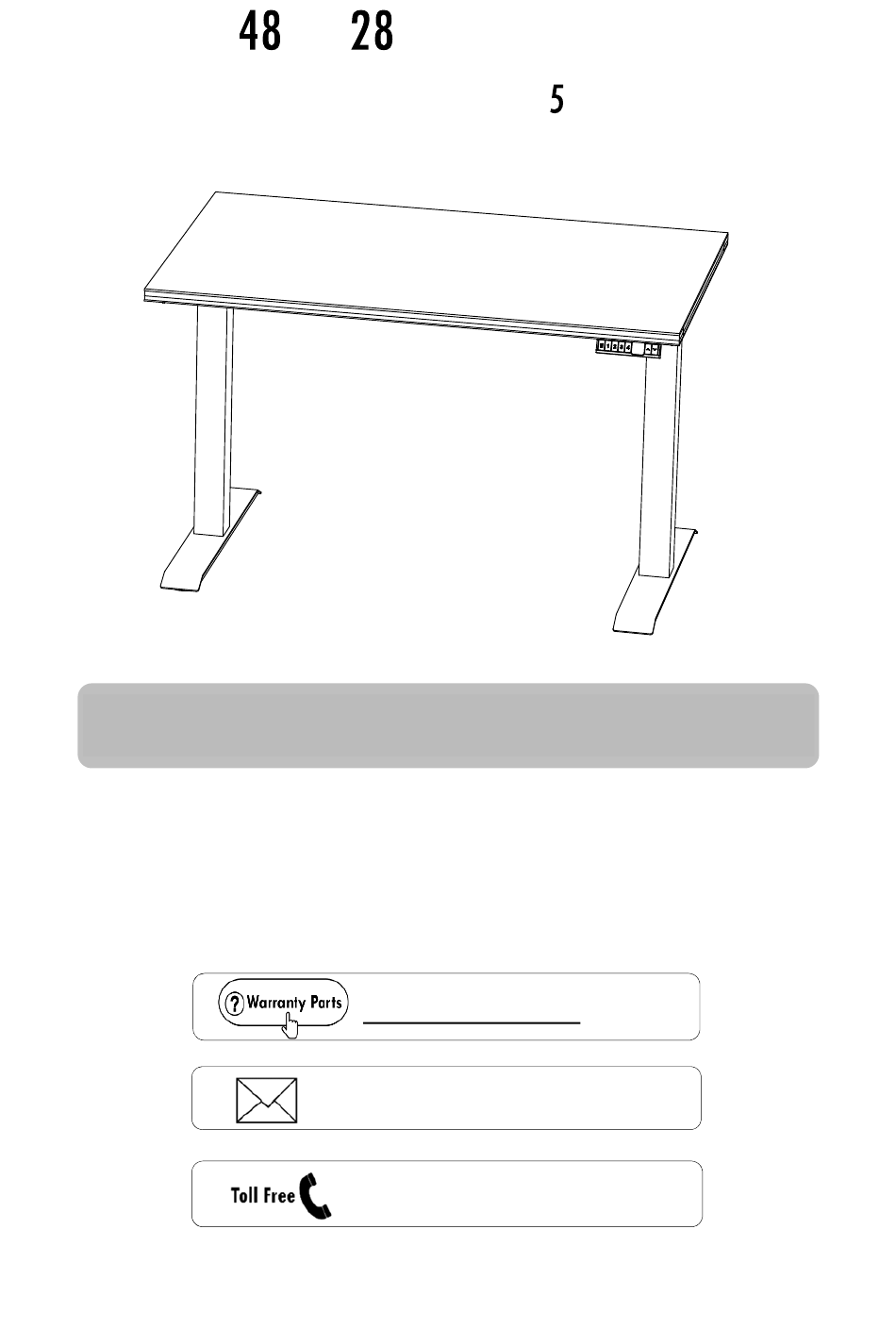

- Page 1 Collison ” x ” Electric Sit Stand Desk Item No.: B201000 02 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com BJ@sunjoygroup.com 1-(866)-578-6569...
-
Page 2: Exploded Drawing
Exploded Drawing... -
Page 3: Parts List
Parts List Label Part Number Description Part Image P000400557 Crossbar P000501543 Leg Frame P005400211 Foot Base P005000219 Side Bracket P005200026 Control Box P005200027 Keypad P005200017 Power Cord P002100430 Desktop... -
Page 4: Hardware Pack
Hardware Pack Label Part Number Description Spare Part Image H010140017 M8*16 Bolt H090030002 Allen Key 4mm H090030005 Allen Key 5mm H030071026 ST4.8*19 Screw H030070492 ST3.5*19 Screw P007600076 Rubber Cushion H010050012 M6*12 Bolt M6*10 Bolt H010140016 (preassembled) P008300008 Clips Leveler P005300052 (preassembled) P002200307 Plastic Pad... - Page 8 Loosen all 8pcs bolts (HH) at this step. ...
- Page 9 ...
-
Page 14: System Initialization
System Initialization After assembly of desk is complete, it is necessary to reset or initialize the motor system 1‐ Plug the power cord into an outlet or power strip, display will flash. 2‐ Press and continue to hold both the up (^) and down (v) buttons simultaneously, the display will show “E00” when reaching 4’’ to the lowest height, then followed by a beep and the desk is at its lowest height, the display will show the lowest height. The buttons can be released now. Notes If initialization is interrupted by releasing buttons prematurely and display read “E00”, of if the desk does not begin moving, repeat step 2. Gyro sensor anti‐collison system ensures safety during lifting, it will run in the opposite direction when encountering obstacles or user slightly tap the table top edge (display read “E03”), or when the control box is not installed properly (display read “E04”), please remove obstacles or check the control box installation to ensure the gyro sensor anti‐collison system works properly. 3‐ Press the up (^) button to raise the desk to the highest position. Now release the button. 4‐ Press the down (v) button to lower the desk to the lowest position. Now release the button. 5‐ The system has now been successfully initialized the synced. ... - Page 15 Height Adjustable Operation Guide NORMAL OPERATION Raise or lower the desk by pressing and holding the up (^) and down (v) buttons until the desired height is reached. INSTRUCTIONS FOR PROGRAMMING MEMORY POSITIONS 1‐ Press both the up (^) and down (v) buttons until the desired height. 2‐ Press the "M" button and hold until the number flashes. 3‐ Select to which memory the height will be associated by pressing the chosen number (1‐2‐3‐4), and now four different heights position have been memorized. Note: memorized positons will remain even if power is lost. INSTRUCTIONS FOR USING MEMORY POSITIONS To adjust the table to the heights stored in memory, press and hold the desired memory (1‐2‐3‐4) until the height is reached. INSTRUCTIONS FOR IMPERIAL AND METRIC SWITCHING 1‐ Initialized number reads in imperial. 2‐ Press the "1","2" and "M" buttons simultaneously for 5 seconds until "C‐I" flashes. Now release the buttons. 3‐ Press "1" button to show metric height. 4‐ Repeat step 2 and press "2" to show imperial height. USB FUNCTIONS Connect desired USB compatible device to USB port to charge. Use the desk with actual technical parameters as shown in below. Input Voltage 110‐240V Output Voltage 32V Max Load 120 kg / 264.6 lbs Load speed 30mm (1.2 inch) /s ...
-
Page 16: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish. Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing. Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may creates potting within the furniture finish. It is best to keep your furniture in a climate‐controlled environment. Extreme temperature and humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct sunlight as sun may damage the finish. Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful tips will enhance your furniture as it ages. ONE‐YEAR LIMITED WARRANTY This limited warranty is extended to the original purchaser and applies to defects in material and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The manufacturer warrants for this item is free of defects in material and workmanship for a period of one year. If any defect is found, please call our customer service department at 1‐866‐578‐6569 or email at staples@sunjoygroup.com for help. The manufacturer will not cover transportation or delivery costs or compensate the individual or any outside party for assembling or disassembling the product. Country of Origin: China Production Number:2020100261 ...
Need help?
Do you have a question about the Collison B201000502 and is the answer not in the manual?
Questions and answers
What does error code E31 mean? Sun Joy Collision 28 X 48 Electric Sit Stand Desk
