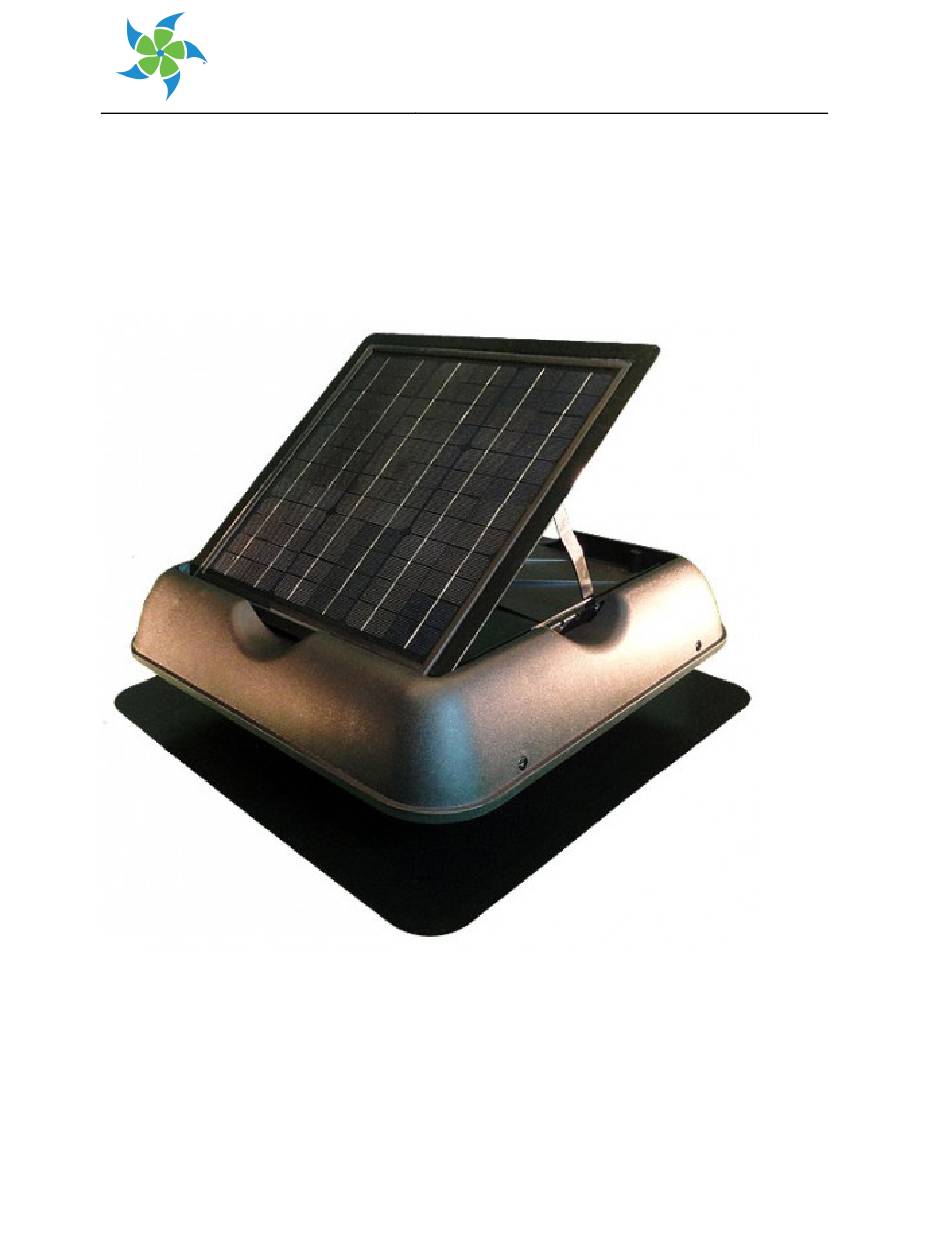

- Page 1 Solar Royal, LLC Solar Royal SR1800 Series Installation Manual Solar Royal SR1800 Series Installation Manual Solar Ventilation (Attic) Fan Installation Rev6 RS/vm 2018...
- Page 2 Solar Royal SR1800 Series Installation Manual Table of Contents Introduction ....................3 Purpose ......................3 Installation Manual ..................3 Pre-requisites ....................3 Pre-installation Tasks..................4 Installation Procedure ..................4...
- Page 3 SR1800 can be easily placed and then securely snapped into place. Purpose This document is provided to serve as a guide for installing the Solar Royal SR1800 on composite shingle roofs. Installing an attic fan is fairly easy but Solar Royal, LLC recommends that if you...
- Page 4 Once the fan is installed, the white film should be removed so that the SR1800 will work properly. *Please contact Solar Royal regarding painting the unit. Please note once the unit has been painted, it is now altered and no longer can be returned.
- Page 5 Solar Royal SR1800 Series Installation Manual 2.3.1 Measuring and Cutting the Hole On either 24”/16” center construction, we recommend cutting a 15” round hole between the rafters. We recommend installing the SR1800 between the rafters but if not possible it is OK to install the SR1800 over a rafter.
- Page 6 Solar Royal SR1800 Series Installation Manual Removing obstructions *Flashing after being slide in *If possible and to make it look cleaner, replacing the shingles on the bottom third of the flashing. This is not a requirement, just optional. 2.3.3 Sealing and Securing the Flashing...
- Page 7 Solar Royal SR1800 Series Installation Manual Drill 8 mounting holes (along bottom and exposed sides). Use the eight (8) #10 1-1/2” wood screws (pan head) to mount the unit while making sure the unit is properly squared with the roof edge or side before securing the second screw. Not having the unit properly squared will make for an uneven look from the ground so it’s important to aligned it...
- Page 8 Solar Royal SR1800 Series Installation Manual Then, carefully set the SR1800 down (centered) on the metal base (flashing) making sure the thermoball/cable is not being pinched and is hanging down within the attic space. IS CRUCIAL TO MAKE SURE THE THERMOBALL/CABLE IS NOT...
