IMPORTANT NOTE
Installing an attic fan is fairly easy but Solar Royal,
LLC recommends that if you have not worked on a
roof, installed something on your roof before, or are
not familiar with working on a roof that you should
hire an insured and bonded professional to install
anything on your roof, including a solar attic fan.
This guide applies and assumes the product is
being installed on a composite shingle roof.
PRECAUTIONS
1. Work with extreme caution on the roof,
when using tools and waking on roofs.
2. Be careful not to cut any
rafters, framing, etc.
3. Meaure four times and cut once.
-TOOLS NEEDED -
• Safety goggles
• Measuring tape
• Marking Pencil
• Utility knife
• Screws (Provided)
• Caulk (ie.. MP1 or similar)

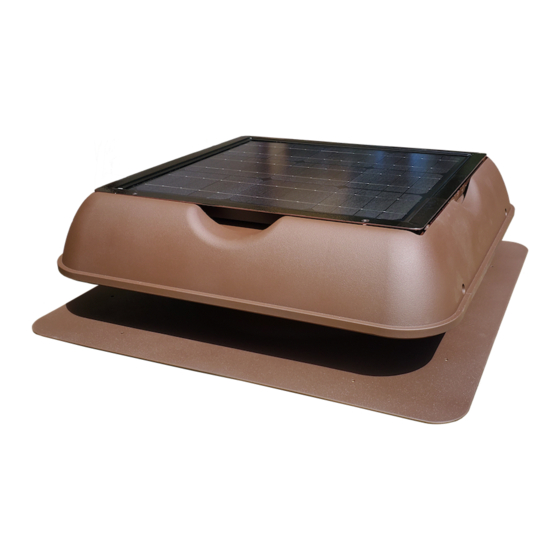

Thank you for purchasing the Solar Royal, LLC (SR1800). Before installing the unit be sure you
make yourself familiar with the different components. Carefully unpacking the unit and review
above items suggested to install the unit. The SR1800 is the easiest solar attic fan to install because
the separate flashing (metal base) is made to be installed before the rest of the unit so the attic fan
is easier to mount. Once the flashing is installed, the hood unit of the SR1800 can be easily placed
and then securely snapped into place.
NOTE:
• For best operation, install solar fan where it will receive direct sunlight. South or West facing roof
slopes will work best. if a southern exposure is not feasible, the fan can be installed on any other exposure
as the solar panel can be adjusted to accommodate the maximum sunlight capture.
• For your protection the SR1800 is delivered with a safety film that covers the solar panel. The safety
film serves to protect the installer from the blade rotating on the roof which could damage the unit and
also injure the installer. Also, if the client wishes to have the unit in another color, the SR1800 can be
painted to match the home and/or roof color. Once the fan is installed, the white film should be removed
so that the SR1800 will work properly.
SR1800 INSTALLATION
• Stud finder
• Drill w/ phillips bit
• Flat pry bar
• Caulk Gun
• Reciprocating Saw
GUIDE
Advertisement
Table of Contents
Related Manuals for Solar Royal SR1800
Summary of Contents for Solar Royal SR1800
- Page 1 Also, if the client wishes to have the unit in another color, the SR1800 can be painted to match the home and/or roof color. Once the fan is installed, the white film should be removed...
- Page 2 - remember to take into consideration where and how the panel is set to angle to make sure you click into place correctly. The SR1800 when placed on the base is slightly off and not exactly squared with the metal base unit, once the unit is (turned to the left) clicked into place, you will hear a very distinct secure metal clip that locks the solar attic fan into place.
