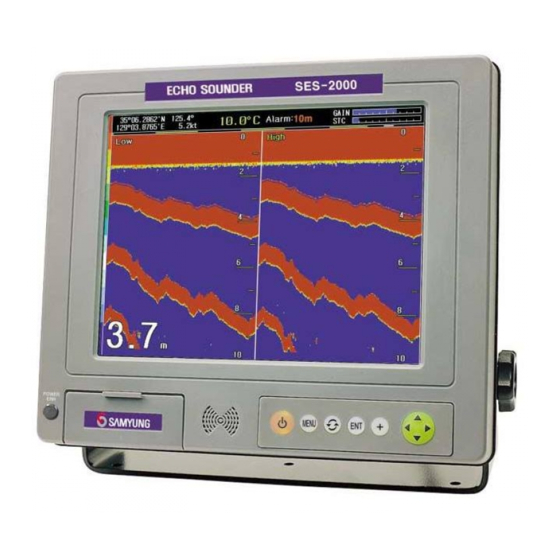

Samyung ENC SES-2000 Quick Reference Manual

Quick reference Guide
1. Key and Operation
③ ③ ③ ③
① ① ① ① ② ② ② ②
⑥ ⑥ ⑥ ⑥
⑦ ⑦ ⑦ ⑦
⑧ ⑧ ⑧ ⑧
⑩ ⑩ ⑩ ⑩
Power ON/OFF.
ON : Holding press 1 sec OFF : same way about
2sec.
Selecting menu.
Changing display mode.
Stop alarm or select/change items in menu.
Press cursor to show changeable rod. Press one
more time it is disappeared..
( )
Highlighted cursor. Adjustable by [▲][▼].
Selecting work, Moving or input data, cursor and
changing depth.
[◀ ◀ ◀ ◀ ][▶ ▶ ▶ ▶ ] checking previous data & Setting position,
Gain, STC.
[▲][▼] Moving cursor or setting depth range, input
data.
Less 12V, It is flashing LED with alarm.
2. Echo Sounder Screen
④ ④ ④ ④
① Ownship Lat/Long : Lat/Long of Ownship position(Present) in
② Temperature
⑤ ⑤ ⑤ ⑤
③ Depth Alarm Range : Sounding Alarm & flashing Depth within
④ GAIN
⑤ STC
⑥ Frequency
⑦ 5Min Time Mark : In time mark 15min, Displayed automatic
⑧ Depth
⑨ Menu
⑩ Time Mark Line : Time Mark Line in red is displayed based
3. Auto Gain by soft key
Auto Gain is to set GAIN automatically, Press
USE( ) / CANCEL(
select adjusting bar, [◀],[▶] is to adjust setting value.
Example
Select
[Echo Sounder]
In Auto Gain set, Not available to set GAIN/STC manually.
case of being connected by ex. data
: Present temperature measured by
thermometer
(in connected thermometer)
range of depth alarm.
: Displaying Gain value in receiver
: Displaying STC value to see the screen
removed plankton, bubble etc under
the water about 100m less
: The frequency to measure by transducer
(In dual frequency, Displayed by yellow
letter)
time mark per 5min. (GPS Lat/Long)
: Measured depth (set by m(meter) or
ft(feet)
: Displaying main menu each function
on set time.
then set
) one after the other. Direction [▼],[▲] is to
4. Echo Sounder Set
Select
[Echo Sounder]
In order to return previous menu after set value,
Press .
[S.Speed ] Set The Example is following,
Example
Select
[Echo Sounder]
Select
[S.Speed]
