Summary of Contents for ACE INSTRUMENTS ACE-1000

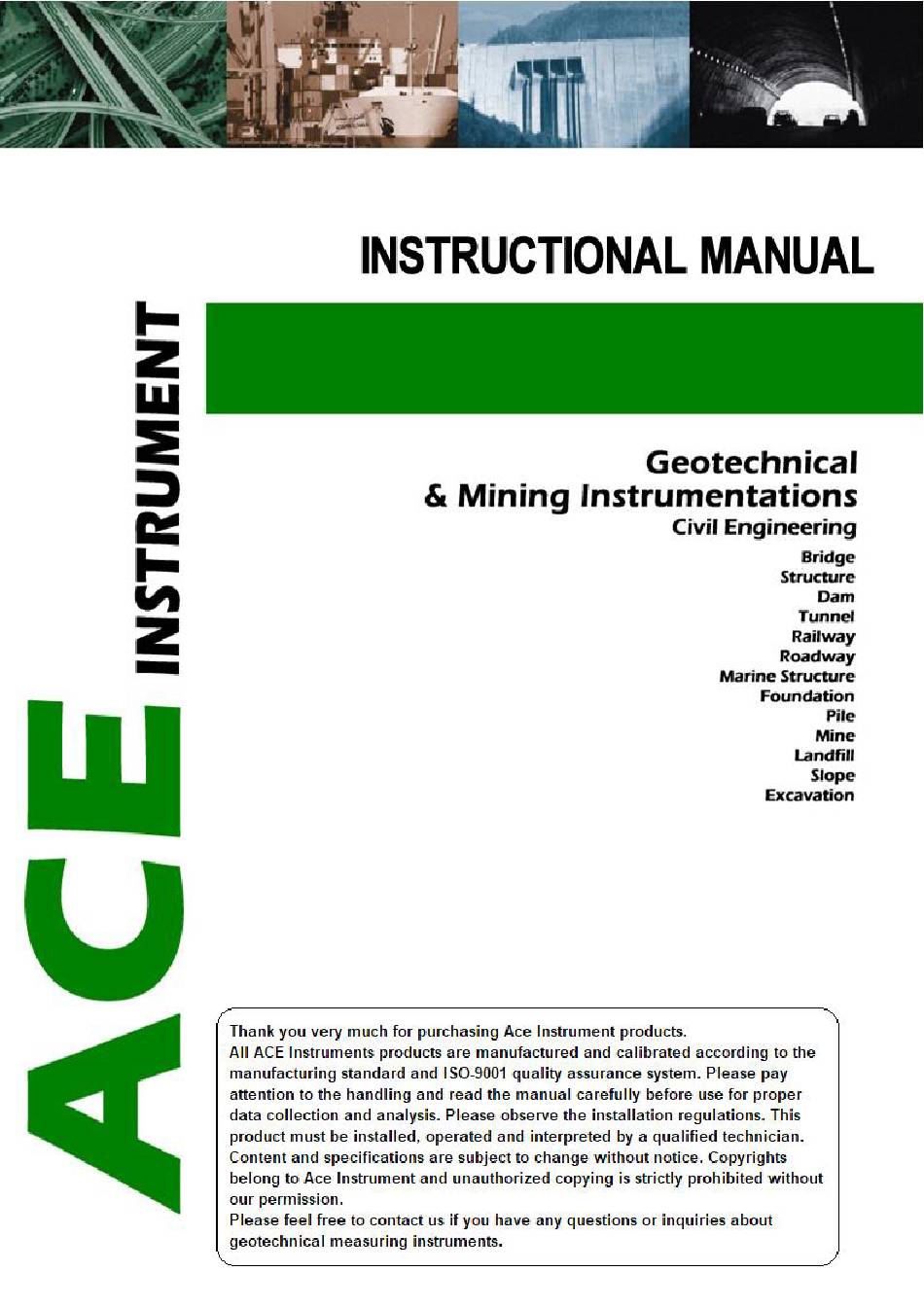

- Page 1 Warranty VW Data Recorder [ Model ACE-1000 ]...
- Page 2 Warranty Limited Warranty 1. ACE INSTRUMENT CO., LTD. holds the full responsibility of our products regardless of purchasing places and how you get it. The product passed a rigorous test and was under the quality management by top engineers. 2. If any defects of manufacturing are found or any breakdown happens within 3 years from purchasing date, we guarantee repair, adjustment and verification at no cost.
-
Page 3: Table Of Contents
Detail description for the function ································································· 5 Description of MENU ················································································· 6 How to use ACE-1000················································································ 7 4. Program usage ····································································································· 8 Connect ACE-1000 to computer ···································································· 9 A1000Pro (Connect) ··················································································· 9 A1000Pro (Edit) ························································································· 10 A1000Pro (Down) ······················································································ 13 A1000Pro (Exit) ·························································································... -
Page 4: Introduction
4.8VDC low current charging circuit. The ACE-1000 can store up to 4,000 measurement values for up to 64 data sets, and this data can be transmitted to the computer via RS-232 communication, so it is useful in a large field and the software has data sorting function It is possible to sort by sensor ID, date, and time. -
Page 5: Name & Explanation For Each Part
1. Introduction 1-4 Name & Explanation for each part ① It shows date of measurement, measurement mode (Sweep, Unit), measured data and LCD Display temperature, remained battery, and saved ID. ② - [ON] : Turn on the power Membrane Button - [OFF] : Turn off the power. -
Page 6: Specifications
2. Specifications 2. Specifications Model ACE-1000 Applied sensor VW type sensor Frequency range 450∼6,000 Hz , μsec, ℃, με0.3911, με0.7756, με3.304, με4.062 Displayed units Hz, 10 Resolution 0.01% FSR (0.1Hz) Accuracy 0.02% FSR (0.1Hz) Operating -20∼50 ℃ temperature Communication port... -
Page 7: Description For Using
3. Description for Using 3-1 Detail description for the function ■ Setting the Sweep and Measuring Unit [MENU], [ENTER] Like the below table it is recommendable to change them by using [MENU], [ENTER] and [▲/LIGHT] [▲/LIGHT] buttons, depending on the situations on the site. [▲/LIGHT] [MENU] [ENTER]... -
Page 8: Description Of Menu
3. Description for Using ■ Saving Measurement [MENU], [ENTER] Like the below table it is useful to save the values in the VW data recorder by using [▲/LIGHT], [▼/SAVE] [MENU], [ENTER], [▲/LIGHT] and [▼/SAVE]. [▲/LIGHT] [▼/SAVE] [MENU] [ENTER] Indication of LCD Display Indication of measured data 1 Click ID setting screen... -
Page 9: How To Use Ace-1000
Applying display unit by As the below table, apply the measuring unit, depending on the change in the Display Changes in Mode Mode. VW ACE-1000 readout unit shows frequency (Hz) always, and simultaneously the chosen display unit is shown as below. MODE... -
Page 10: Program Usage
4. Program usage Description The "A1000Pro" is only program for model ACE-1000 VW data recorder. This is program that you can check with download data in store data recorder and you can use with change data to operation program like MS Excel. Only Ace Instrument offers "A1000Pro". -
Page 11: Connect Ace-1000 To Computer
4. Program usage 4-1 Connect ACE-1000 to computer RS-232 Cable Connection Connect the 10Pin male connector of the RS-232 cable included with the ACE-1000 and connect the other 9pin female connector to the serial port of the computer with the A1000Pro program. -
Page 12: A1000Pro (Edit)
4. Program usage 4-3 A1000Pro (Edit) A1000Pro Edit In the screen with connect; click the [Edit] icon. Then, display window that able to check for battery of data recorder and set an option of Clock setup, Reading setup, Save option, Auto power break. - Page 13 4. Program usage Reading setup Reading setup menu can be remote control the Sweep mode and Temperature sensor type [ ACE-1000 Sweep mode change ] [ ACE-1000 Temp, Sensor Type change ] - 11...
- Page 14 4. Program usage Save option The save option is two ways as the below picture. If you choose "Overwrite oldest readings [Continue recording]" mode, the oldest data is deleted and the latest data is saved when the save capacity is full. If you choice "Stop recording"...
-
Page 15: A1000Pro (Down)
4. Program usage 4-4 A1000Pro (Down) A1000Pro Down If click the [Down] icon in the connected screen, display the screen that arranged all saved data in VW data recorder as follows. When a screen listing all saved data appears, click [ID:] option item to sort by all data values or ID order. - Page 16 4. Program usage Save data In the case of save data in down screen, click the [Save] button. Then, display the save option window as the below picture. File type option has function that able to choose extension of saved data. This make use of extension of *.csv and *.dat for using in operation program like MS Excel.
-
Page 17: A1000Pro (Exit)
4. Program usage Data Delete When the storage is completed, you should check the storage space and delete the data. If you click the [Erase] button on the [Down] screen, a question about full deletion will be displayed. After confirmation, all data will be deleted. 4-5 A1000Pro (Exit) A1000Pro Exit Close the program with click [Exit] icon of A1000pro main screen. -
Page 18: Calibration & Service
5-2 Calibration & service Calibration Model ACE-1000 VW data recorder is revised and shipped with exact input / output specifications of the electric circuit by using each special rectifier. Therefore it allows for highly stable and reliable values in every VW sensor. -
Page 19: Geotechnical Instruments Installation And Operation Tips
6. Geotechnical Instruments Installation and Operation Tips 1. Handling caution 8. Atmospheric pressure adjustment Engineering measuring instrument is precisely When manometer is chosen as sensor, it is very sensitive manufactured and sensitive. Don’t drop it and don’t allow it to change in atmospheric pressure. Therefore, for precise to be exposed to external shocks. - Page 20 - 17...
