Assembly Instructions
Model:
TXNCT37
TXNCCT37
TXNCRT37
TXNCBT37
__(1) Table top
__(4) Leg
__(2) Foot
__(2) Brace
__(1) Umbrella support
__(1) Hardware pack
TOOLS NEEDED
4mm HEX KEY: INCLUDED
Qty.
Description
1
Table plug
A - 1/4-20 X 1-1/2 WAFER SHCS
1
B - 1/4-20 X 2-1/4 WAFER SHCS
4
C - 14 X 2-1/2 SOCKET WAFER "B"
8
D - 14 X 3 SOCKET WAFER "B"
6

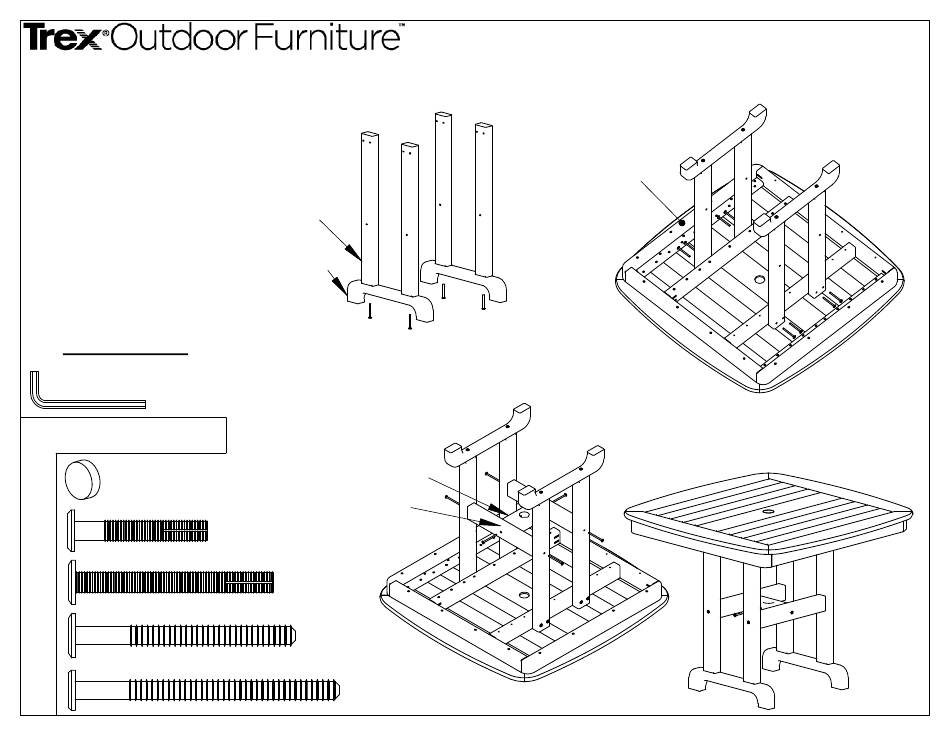

Step 1
Attach feet to legs using (4) 2¼" Chair bolts.
Leg
Foot
Step 3
Attach the leg braces to the leg assemblies using
(4) 14x3" screws
Attach the umbrella support using
(2) 14x3" screws
Umbrella
support
Brace
course thread
ALL HARDWARE IS COATED STAINLESS STEEL
course thread
Step 2
Lay table top on flat surface.
Attach the leg assemblies to the table frame using
(8) 14x2
Table top
B
Step 4
Set table upright and tighten all bolts.
The 1½" Chair bolt secures the umbrella pole.
B
B
½
" screws *Do not tighten until last step
B
B
A
6/2/2011
