Assembly Instructions
Model:
TXNCT44
TXNCCT44
TXNCRT44
TXNCBT44
__(1) Table top
__(4) Leg
__(2) Foot
__(2) Brace
__(1) Hardware pack
TOOLS NEEDED
4mm HEX KEY: INCLUDED
Qty.
Description
1
Table plug
A - 14 X 2-1/2 SOCKET WAFER "B"
8
course thread
B - 14 X 3 SOCKET WAFER "B"
4
C - 1/4-20 X 3-1/4 WAFER SHCS
4

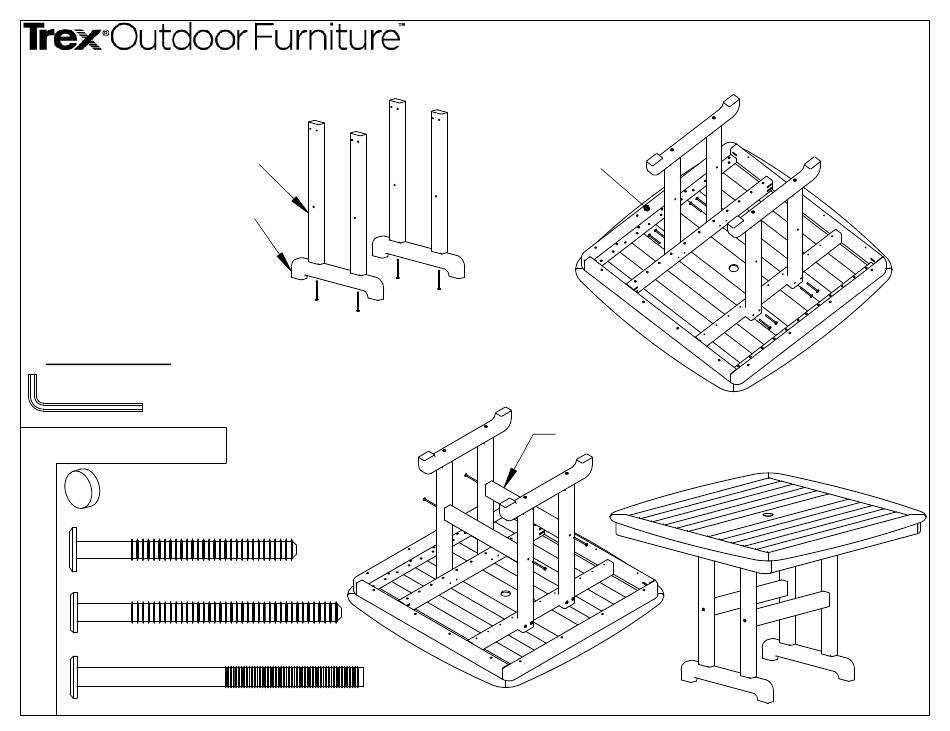

Step 1
Attach feet to legs using (4) 3¼" Chair bolts.
Leg
Foot
C
Step 3
Attach the leg braces to the leg assemblies using
(4) 14x3" screw
course thread
fine thread
ALL HARDWARE IS COATED STAINLESS STEEL
Step 2
Lay table top on flat surface.
Attach the leg assemblies to the table frame using
14x2½" screw
(8)
Table top
Brace
A
A
*Do not tighten until last step
A
A
Step 4
Set table upright and tighten all bolts.
