SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other
hazards please read all warnings and instructions.
Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
Installation and service of Lowering Devices should be performed by a qualified licensed electrician and mechanical technician.
Maintenance of the Lowering Devices should be performed by person(s) familiar with the Lowering Devices construction and
operation and any hazards involved.
DO NOT INSTALL DAMAGED PRODUCT! This Lowering Device has been properly packed so that no parts should have been
damaged during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced.
These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet
in connection with installation, operation, or maintenance. Should further information be desired or should particular problems
arise which are not covered sufficiently for the purchaser's or owner's purposes, this matter should be referred to Acuity Brands
Lighting, Inc.
Disconnect or turn off power before installation or servicing.
Verify that supply voltage is correct by comparing it with the luminaire label information.
Make all electrical and grounded connections in accordance with the National Electrical Code (NEC) and any applicable local
code requirements.
All wiring connections should be capped with UL approved recognized wire connectors.
Do not stand directly beneath the pole or lowering device during installation except as instructed to in this manual.
Do not depend on the lowering device cables to tether a slip-fit type pole. Failure to use a tethering cable may result in injury
or death.
Operate the lowering device only while standing at the maximum distance from the pole allowed by the twenty foot long
remote control cord. Failure to follow this procedure may result in injury or death.
Wear gloves, safety glasses, hardhats and safety shoes at all times when removing
servicing or performing maintenance.
Follow pole manufacture installation instruction.
Follow luminaire manufacture installation instruction when attaching to the lowering device.
Do not expose the torque limiter or shear pin to damaging elements or mistreatment such as sand, mud, salt spray or other
conditions which could render either safety mechanism inoperable. Do not attempt to adjust the torque limiting clutch or
replace the shear pin. If repairs are necessary, replace damaged equipment with replacement components from Holophane.
Failure to follow these warnings may result in injury or death.
For a complete listing of product Terms and Conditions, please visit www.acuitybrands.com.
Our Brands
Indoor/Outdoor
Lithonia Lighting
Carandini
Holophane
RELOC
Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless installation or handling of its products.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
RISK OF ELECTRIC SHOCK
Failure to follow any of these instructions could void product warranties.
Indoor Lighting
Gotham
Mark Architectural Lighting
Peerless
Renaissance Lighting
Winona Lighting
© 2010 Acuity Brands Lighting, Inc. All rights reserved. 6/03/13

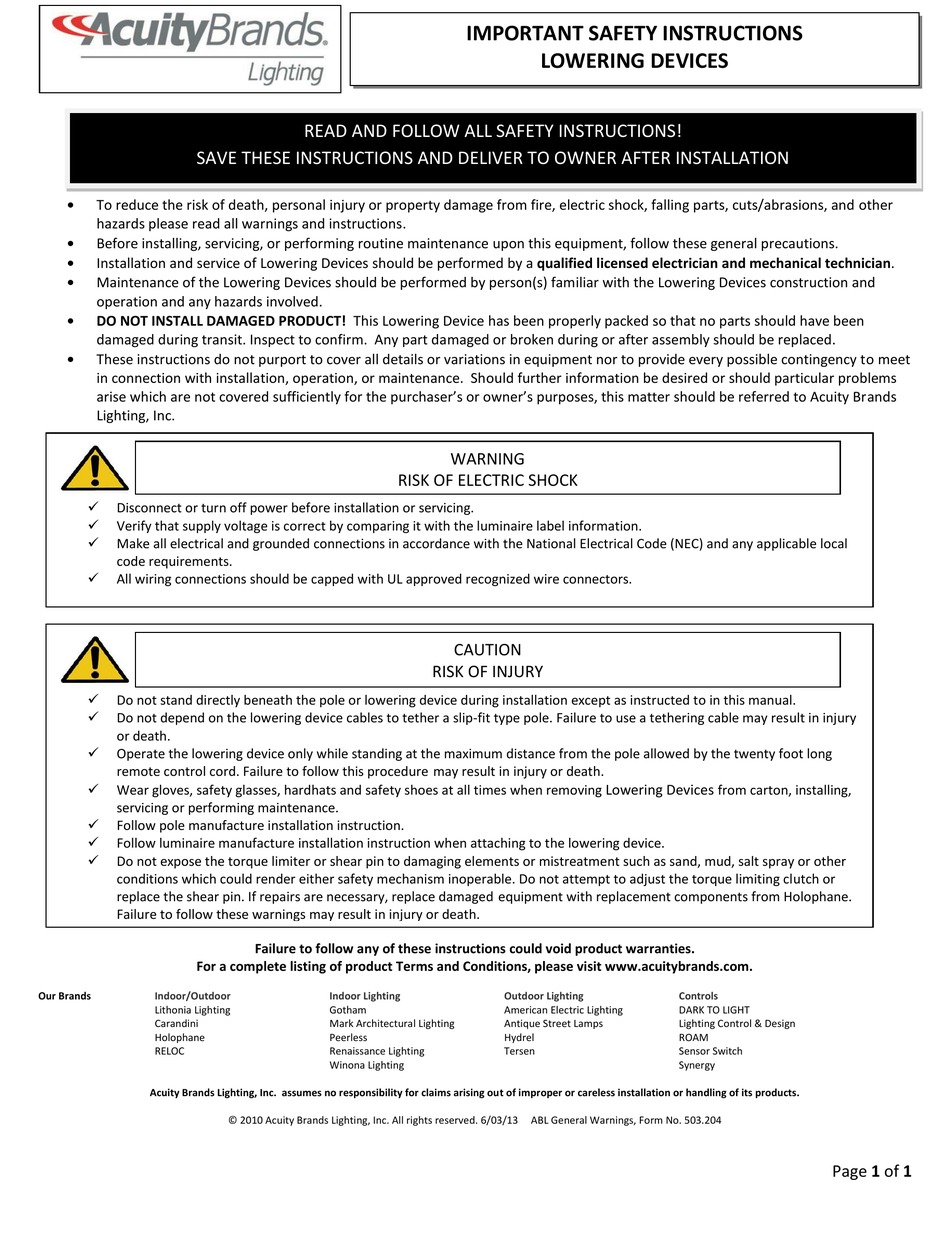

IMPORTANT SAFETY INSTRUCTIONS
LOWERING DEVICES
WARNING
CAUTION
RISK OF INJURY
Lowering Devices
Outdoor Lighting
American Electric Lighting
Antique Street Lamps
Hydrel
Tersen
ABL General Warnings, Form No. 503.204
from carton, installing,
Controls
DARK TO LIGHT
Lighting Control & Design
ROAM
Sensor Switch
Synergy
Page 1 of 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holophane 25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acuity Brands Lighting Holophane 25

  • Page 1 Winona Lighting Synergy Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless installation or handling of its products. © 2010 Acuity Brands Lighting, Inc. All rights reserved. 6/03/13 ABL General Warnings, Form No. 503.204...
  • Page 2 HIGH MAST 25 and 28 LOWERING DEVICES LD TYPE 25: TOP LATCHING, CENTERING ARM, INTERNAL WINCH AND INTERNAL DRIVE MOTOR LD TYPE 28: TOP LATCHING, BUMPER, INTERNAL WINCH AND INTERNAL DRIVE MOTOR OWNER’S MANUAL This manual must remain with the lowering device and always be available to the owner and operator.
  • Page 3 PLEASE READ THIS NOTICE A copy of this manual is to remain with the lowering device at all times. Keep it in the sealed plastic protective cover provided and store inside the pole handhole cover. Operating and maintenance personnel must read and understand completely Sections III and IV.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section I Lowering Device Material List Section II Assembly Instructions Section III Operating Instructions Section IV Maintenance Instructions LUBRICATION REPLACING THE WINCH CABLE DRIVE MOTOR SHAFT REPLACEMENT POWER CORD REPLACEMENT LUMINAIRE REMOVAL LATCH SYNCHRONIZATION ADJUSTMENT AND LATCHING Section V Attachments...
  • Page 5 High Mast SECTION I HOLOPHANE Lowering Devices LOWERING DEVICE MATERIAL LIST Assemblies Supplied With Each Device: Headframe assembly with cover (one per) Mounting ring assembly (one per) Power cord and ring junction box (one per) Clevis assembly with coiled hoisting cables (one per) Winch and winch mounting plate with circuit breaker enclosure (one per) Luminaire mounting arms (quantity as required) Hardware box (one per)
  • Page 6 GR1129...
  • Page 7 High Mast SECTION II HOLOPHANE Lowering Devices ASSEMBLY INSTRUCTIONS 2.1 Pole Preparation 2.2.3 Unpack the junction box with the main power cord and place near the top of pole. Uncoil the power 2.1.1 See pole supplier or contact Holophane Cus- cord halfway down along the pole and back to the top.
  • Page 8 High Mast SECTION II HOLOPHANE Lowering Devices 2.2.9 Feed the power cord through the large center hole in the clevis approximately 2 feet, making certain it is centered in the three hoisting cables. CAUTION The power cord and cables must not be crossed or wrapped around each other.
  • Page 9 HOLOPHANE High Mast SECTION II Lowering Devices 2.3.5 Remove the two hex head bolts located below the motor. Without lifting, slide the motor away from the winch. 2.3.6 Locate the No. 606 Woodruff key. Normally this key will remain in its keyway in the winch shaft. Do not lose this key.
  • Page 10 High Mast SECTION II HOLOPHANE Lowering Devices 2.4.3 At the top of the pole, orient the LD ring so that 2.4.6 Install the cable terminal fitting on the cable as the strain plate mounting hole on the top flange of the follows: ring aligns with the power cord slot on the headframe.
  • Page 11 High Mast SECTION II HOLOPHANE Lowering Devices insure that they have set properly. Cable should not be pulled into the terminal cable fitting more than 1/4”. CAUTION If the cable has moved more than 1/4” through any of the cable terminal fittings, the fitting has not set prop- erly.
  • Page 12 High Mast SECTION II HOLOPHANE Lowering Devices 2.5.4 Install the junction box onto the left side of the NOTE junction box arm using the four 1/4-20 locknuts and It may be helpful to apply a thin coat of oil to the lockwashers supplied in the bag attached to the strain lightning rod before installing the headframe cover.
  • Page 13 HOLOPHANE High Mast SECTION II Lowering Devices LUMINAIRE CONFIGURATION (TOP VIEW OF RING) JUNCTION BOX (TYP) *FAA Marker locations. Mount the FAA marker at these locations on lowering devices with 2, 3, 4, and 6 luminaires. For devices with 8, 9, or 10 luminaires, mount the FAA marker at any vacant luminaire mounting position.
  • Page 14 HOLOPHANE High Mast SECTION II Lowering Devices 2.5.11 Install the luminaire mounting arms at the Install rubber plug cover if required. For details of rubber appropriate location. (See Figure 18) Do NOT mount cover installation, see Figure 20. The rubber plug cover the luminaires at this time.
  • Page 15 High Mast SECTION II HOLOPHANE Lowering Devices 2.7.6 When included, mount the counter-weight to the 2.7.2 Uncoil the 20 ft. control cord. Rotate the power lowering ring adjacent to the junction box using the unit drum switch to the “REV” position. Since the stainless steel bolts and nuts supplied.
  • Page 16 HOLOPHANE High Mast SECTION II Lowering Devices 2.8.5 Lower the ring to no less than four feet above pole 2.8.8 Rotate each latch and flag to be certain that they base. Make sure the ring is hanging free on the hoisting rotate freely.
  • Page 17 SINGLE CIRCUIT WIRING DIAGRAMS GR1165 GR1164 GR1166...
  • Page 18 DOUBLE CIRCUIT WIRING DIAGRAMS GR1168 GR1167...
  • Page 19 HOLOPHANE High Mast SECTION III Lowering Devices OPERATING INSTRUCTIONS EVERY PERSON WHO INTENDS TO OPERATE THE LOWERING DEVICE SHOULD READ COMPLETELY AND UNDERSTAND FULLY THESE INSTRUCTIONS BEFORE OPERATING THE DEVICE. possible problems are as follows and can be checked 3.0 General Comments using a high powered flashlight.
  • Page 20 High Mast SECTION III HOLOPHANE Lowering Devices LD RING LATCH POSITION INDICATOR LATCH AT TOP OF BARREL. UNIT LOWERED INTO UNIT BEING RAISED. UNIT READY TO LOWER LATCHED POSITION. LATCH ENTERING BARREL. INTO LATCHED POSITION. CABLE IS SLACK. LATCH EXISTING BARREL. LATCH RAISED TO TOP OF UNIT UNLATCHED AND BARREL.
  • Page 21: Maintenance Instructions

    High Mast SECTION IV HOLOPHANE Lowering Devices MAINTENANCE INSTRUCTIONS 4.1 LUBRICATION 4.4 POWER CORD REPLACEMENT 4.1.1 Winch The winch gear housing, as received from 4.4.1 Remove the handhole cover. Turn the circuit Holophane is lubricated and sealed. Additional lubrica- breaker off. Disconnect the plug and connector. tion is not required.
  • Page 22: Luminaire Removal

    High Mast SECTION IV HOLOPHANE Lowering Devices 4.4.13 Disconnect the old cord from the cord clamp and junction box on the ring and cut the new cord just above the splice and thread it down through the cord clamp and into the junction box.
  • Page 23 HOLOPHANE High Mast SECTION V Lowering Devices ATTACHMENTS...
  • Page 24 Acuity Lighting Group, Inc. Field Service Department. P.O.Box 3004, Newark, OH 43058-3004 IM-188-D 6/13 ©2013 Acuity Brands Inc. Visit our web site at www.holophane.com Printed in USA...
