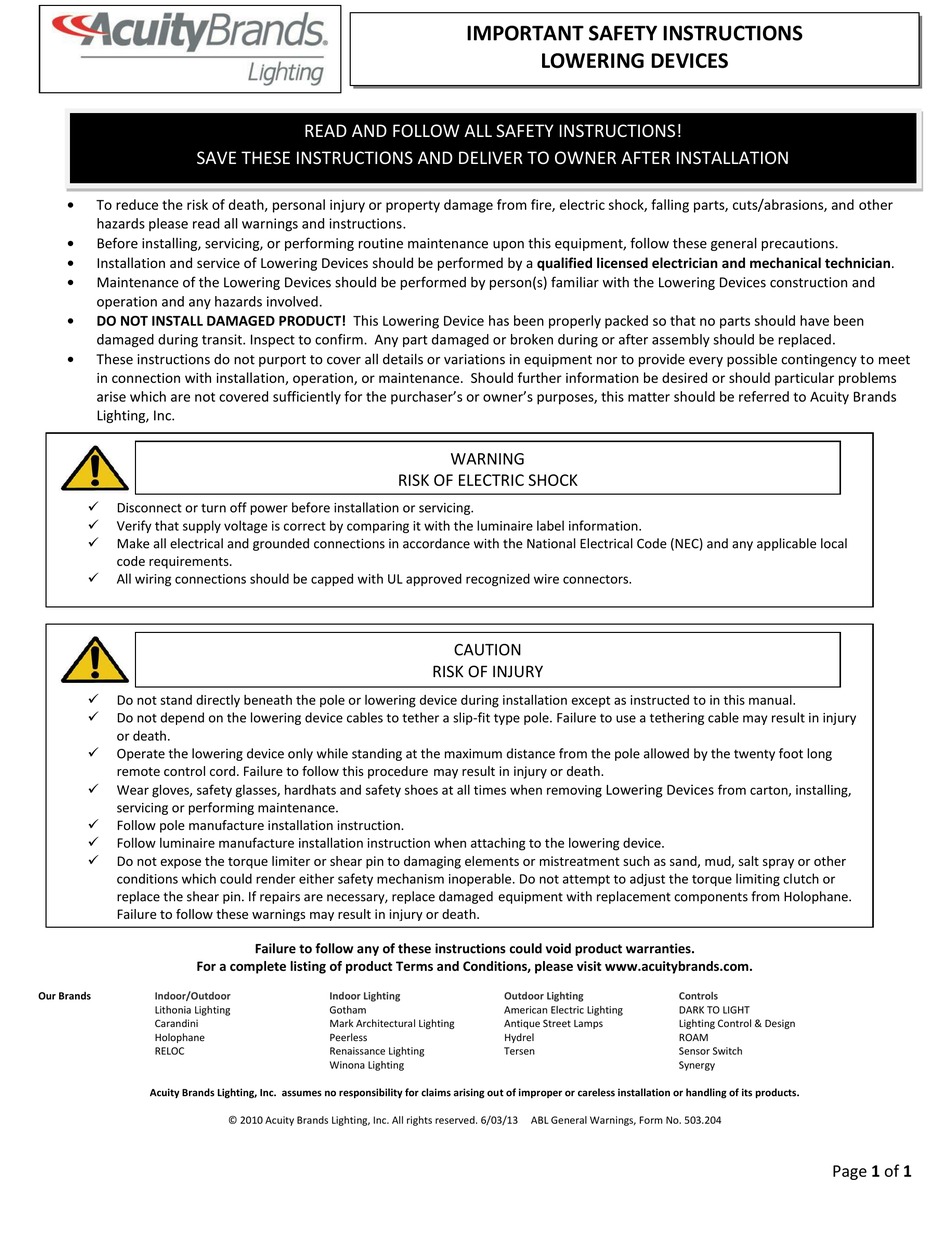

SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other
hazards please read all warnings and instructions.
Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
Installation and service of Lowering Devices should be performed by a qualified licensed electrician and mechanical technician.
Maintenance of the Lowering Devices should be performed by person(s) familiar with the Lowering Devices construction and
operation and any hazards involved.
DO NOT INSTALL DAMAGED PRODUCT! This Lowering Device has been properly packed so that no parts should have been
damaged during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced.
These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet
in connection with installation, operation, or maintenance. Should further information be desired or should particular problems
arise which are not covered sufficiently for the purchaser's or owner's purposes, this matter should be referred to Acuity Brands
Lighting, Inc.
Disconnect or turn off power before installation or servicing.
Verify that supply voltage is correct by comparing it with the luminaire label information.
Make all electrical and grounded connections in accordance with the National Electrical Code (NEC) and any applicable local
code requirements.
All wiring connections should be capped with UL approved recognized wire connectors.
Do not stand directly beneath the pole or lowering device during installation except as instructed to in this manual.
Do not depend on the lowering device cables to tether a slip-fit type pole. Failure to use a tethering cable may result in injury
or death.
Operate the lowering device only while standing at the maximum distance from the pole allowed by the twenty foot long
remote control cord. Failure to follow this procedure may result in injury or death.
Wear gloves, safety glasses, hardhats and safety shoes at all times when removing
servicing or performing maintenance.
Follow pole manufacture installation instruction.
Follow luminaire manufacture installation instruction when attaching to the lowering device.
Do not expose the torque limiter or shear pin to damaging elements or mistreatment such as sand, mud, salt spray or other
conditions which could render either safety mechanism inoperable. Do not attempt to adjust the torque limiting clutch or
replace the shear pin. If repairs are necessary, replace damaged equipment with replacement components from Holophane.
Failure to follow these warnings may result in injury or death.
For a complete listing of product Terms and Conditions, please visit www.acuitybrands.com.
Our Brands
Indoor/Outdoor
Lithonia Lighting
Carandini
Holophane
RELOC
Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless installation or handling of its products.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
RISK OF ELECTRIC SHOCK
Failure to follow any of these instructions could void product warranties.
Indoor Lighting
Gotham
Mark Architectural Lighting
Peerless
Renaissance Lighting
Winona Lighting
© 2010 Acuity Brands Lighting, Inc. All rights reserved. 6/03/13
IMPORTANT SAFETY INSTRUCTIONS
LOWERING DEVICES
WARNING
CAUTION
RISK OF INJURY
Lowering Devices
Outdoor Lighting
American Electric Lighting
Antique Street Lamps
Hydrel
Tersen
ABL General Warnings, Form No. 503.204
from carton, installing,
Controls
DARK TO LIGHT
Lighting Control & Design
ROAM
Sensor Switch
Synergy
Page 1 of 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holophane 05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Acuity Brands Lighting Holophane 05

  • Page 1 Winona Lighting Synergy Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless installation or handling of its products. © 2010 Acuity Brands Lighting, Inc. All rights reserved. 6/03/13 ABL General Warnings, Form No. 503.204...
  • Page 2 HIGH MAST 05 and 08 LOWERING DEVICES LD TYPE 05: TOP LATCHING, CENTERING ARM, INTERNAL WINCH AND PORTABLE DRIVE MOTOR LD TYPE 08: TOP LATCHING, BUMPER, INTERNAL WINCH AND PORTABLE DRIVE MOTOR OWNER’S MANUAL This manual must remain with the lowering device and always be available to the owner and operator.
  • Page 3 PLEASE READ THIS NOTICE A copy of this manual is to remain with the lowering device at all times. Keep it in the sealed plastic protective cover provided and store inside the pole handhole cover. Operating and maintenance personnel must read and understand completely Sections III and IV.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section I Lowering Device Material List Section II Assembly Instructions Section III Operating Instructions Section IV Maintenance Instructions LUBRICATION REPLACING THE WINCH CABLE PORTABLE DRIVE MOTOR SHAFT REPLACEMENT POWER CORD REPLACEMENT LUMINAIRE REMOVAL LATCH SYNCHRONIZATION ADJUSTMENT AND LATCHING Section V Attachments...
  • Page 5 High Mast SECTION I HOLOPHANE Lowering Devices LOWERING DEVICE MATERIAL LIST Assemblies Supplied With Each Device: Headframe assembly with cover (one per) Mounting ring assembly (one per) Power cord and ring junction box (one per) Clevis assembly with coiled hoisting cables (one per) Winch and winch mounting plate with circuit breaker enclosure (one per) Luminaire mounting arms (quantity as required) Hardware box (one per)
  • Page 6 GR1129...
  • Page 7 High Mast SECTION II HOLOPHANE Lowering Devices ASSEMBLY INSTRUCTIONS 2.1 Pole Preparation 2.2.3 Unpack the junction box with the main power cord and place near the top of pole. Uncoil the power 2.1.1 See pole supplier or contact Holophane Cus- cord halfway down along the pole and back to the top.
  • Page 8 High Mast SECTION II HOLOPHANE Lowering Devices 2.2.9 Feed the power cord through the large center hole in the clevis approximately 2 feet, making certain it is centered in the three hoisting cables. CAUTION The power cord and cables must not be crossed or wrapped around each other.
  • Page 9 HOLOPHANE High Mast SECTION II Lowering Devices 2.4 Hoisting Cable Rigging and Adjustment 2.4.1 Rotate the winch drum, using a 5/8” socket or wrench to adjust the position of cable-end swivel fitting. The pin in the swivel should be 29 ±1 in. above the center line of the winch drum.
  • Page 10 High Mast SECTION II HOLOPHANE Lowering Devices 2.4.6.5 Force the cable 2.4.4 Insert the free end of each of the hoisting cables through the fitting. Do not down through its corresponding latch pin on the LD pull back on the cable once ring.
  • Page 11 High Mast SECTION II HOLOPHANE Lowering Devices 2.4.10 Make a small loop in each cable below the fitting LOCKNUT RING and secure the loop with a U-bolt cable clamp. Position the U-bolt clamp 1/2" to 3/4" below the terminal fitting. Securely tighten the nuts on the U-bolt clamp.
  • Page 12 High Mast SECTION II HOLOPHANE Lowering Devices LUMINAIRE CONFIGURATION (TOP VIEW OF RING) JUNCTION BOX (TYP) *FAA Marker locations. Mount the FAA marker at these locations on lowering devices with 2, 3, 4, and 6 luminaires. For devices with 8, 9, or 10 luminaires, mount the FAA marker at any vacant luminaire mounting position.
  • Page 13 HOLOPHANE High Mast SECTION II Lowering Devices 2.5.5 Install the power cord strain plate, attached to the power cord, to the underside of the top flange of the ring using the 3/8” bolt and locknut supplied. (See Figure 17) GR1143 Figure 17 GR1280 2.5.6 Pull the power cord down the pole until tightly...
  • Page 14 HOLOPHANE High Mast SECTION II Lowering Devices NOTE Do not leave this too long since it can become entangled Install the mounting arm bolts from the inside of the ring with the winch cable. Reference the wiring diagram toward the arm. Tighten the nut onto the bolt against inserted in this manual and install and wire the plug.
  • Page 15 High Mast SECTION II HOLOPHANE Lowering Devices unit drum switch to the “REV” position. Since the 2.7.7 When included, mount the counter-weight to the system is not latched, the mounting ring will lower. Do lowering ring adjacent to the wiring box using the not lower to less than four feet above pole base.
  • Page 16 HOLOPHANE High Mast SECTION II Lowering Devices 2.8.4 Carefully move the device upward until the three 2.8.7 Remove the cable markers from the hoisting markers are just touching the latch barrels. At this cables and store with portable drive motor. point, move the ring upward another foot.
  • Page 17 SINGLE CIRCUIT WIRING DIAGRAMS GR1165 GR1164 GR1166...
  • Page 18 DOUBLE CIRCUIT WIRING DIAGRAMS GR1168 GR1167...
  • Page 19 HOLOPHANE High Mast SECTION III Lowering Devices OPERATING INSTRUCTIONS EVERY PERSON WHO INTENDS TO OPERATE THE LOWERING DEVICE SHOULD READ COMPLETELY AND UNDERSTAND FULLY THESE INSTRUCTIONS BEFORE OPERATING THE DEVICE. 3.0 General Comments using a high powered flashlight. 3.0.1 The portable drive motor is provided with a twenty •...
  • Page 20 High Mast SECTION III HOLOPHANE Lowering Devices LD RING LATCH POSITION INDICATOR UNIT BEING RAISED. LATCH AT TOP OF BARREL. UNIT LOWERED INTO LATCH ENTERING BARREL. UNIT READY TO LOWER LATCHED POSITION. INTO LATCHED POSITION. CABLE IS SLACK. LATCH RAISED TO TOP OF LATCH EXISTING BARREL.
  • Page 21 High Mast SECTION III HOLOPHANE Lowering Devices 3.5.3 Turn on the circuit breaker. 3.3 Testing the Luminaires at Ground Level 3.5.4 Remove the power unit from the pole as follows: WARNING Do not break and make the circuit with the plug and 3.5.4.1 Wrap the 20 ft.
  • Page 22: Maintenance Instructions

    High Mast SECTION IV HOLOPHANE Lowering Devices MAINTENANCE INSTRUCTIONS 4.1 LUBRICATION 4.2.3 Attach the new cable obtained from Holophane, in the same manner that the old cable was attached. 4.1.1 Winch The winch gear housing, as received from Holophane is lubricated and sealed. Additional lubrica- 4.2.4 While rewinding the winch, wrap as tightly and tion is not required.
  • Page 23: Power Cord Replacement

    HOLOPHANE High Mast SECTION IV Lowering Devices junction box on the ring and cut the new cord just above 4.4 POWER CORD REPLACEMENT the splice and thread it down through the cord clamp and into the junction box. 4.4.1 Remove the handhole cover. Turn the circuit breaker off.
  • Page 24 HOLOPHANE High Mast SECTION V Lowering Devices ATTACHMENTS...
  • Page 25 Acuity Lighting Group, Inc. Field Service Department P.O.Box 3004, Newark, OH 43058-3004 IM-185-D 6/13 ©2013 Acuity Brands Inc. Visit our web site at www.holophane.com Printed in USA...
