Summary of Contents for Itek ITMC32V241FHD

  • Page 1: Table Of Contents

    ITMC32V241FHD User Manual Table Of Contents 1. Safety Precautions 2. Maintenance Guidelines 3. Box Contents 4. Product Overview 5. Stand lnstallation 6. Mount Installation 7. Connectivity Options 8. Basic Operation 9. Indicator Light 10. OSD 11. ECO Modes and Gameplus Switching 12.
  • Page 3: Safety Precautions

    1. Safety Precautions WARNING:Safety Instructions Do not place the monitor in rain,humid environment or open the monitor case to avoid any shock, electrical hazards,and/or mechanical hazards. Operation • Keep the monitor out of direct sunlight and away from stoves or any other heat source.
  • Page 4: Box Contents

    (for Stand lnstallation) (for Stand lnstallation) (for Wall Mounting) VESA Connector Up x 1 VESA Connector Down x 1 DP Cable x 1 ITMC32V241FHD User Manual Table Of Contents 1. Safety Precautions 2. Maintenance Guidelines 3. Box Contents 4. Product Overview 5.

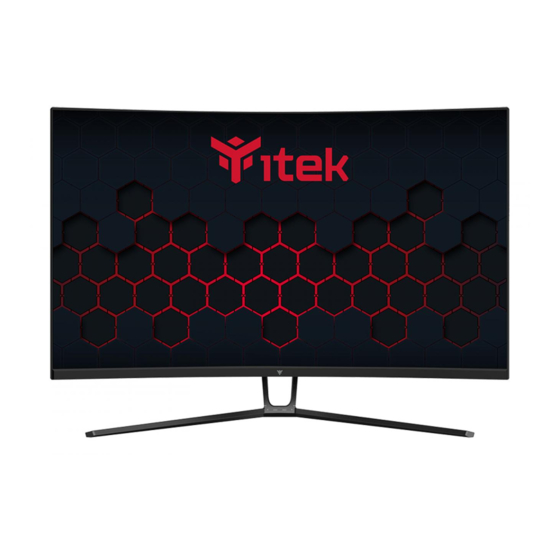

  • Page 5: Product Overview

    4. Product Overview 4.1– Monitor Buttons : Press to display the OSD menu or enter sub-menus. M Menu Button : Press to move down in the menus. Down Button : Press to move up in the menus. Up Button : Press to exit. E Exit Button : Press to turn the monitor on/off.
  • Page 6: Stand Lnstallation

    5. Stand Installation Make sure the monitor is laid on a flat surface before removing the stand. 1. Open the package, take out the product out with the protective foam still attached and gently lay it flat on a desk or table. Remove the extra parts and the foam covering the back of the monitor.
  • Page 7: Mount Installation

    6. Mount Installation This monitor only includes screws which may be used when attaching the monitor to a VESA 75*75mm type mount. No VESA mount or mounting accessory is included. 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.
  • Page 8: Connectivity Options

    7. Connectivity Options 7.1- Connecting the Power Cable Connect the included power cable to the power connector, and then plug the other end into an wall outlet. Power Cable 7.2- Connecting Your Earphones Plug in your earphones to receive audio signals from your monitor. Earphones (not included) Exposure to loud audio for prolonged periods of time may permanently damage your hearing.
  • Page 9 7.3- HDMI Connectivity For the monitor to receive HDMl signals from the computer, use the HDMI cable to connect the monitor to the computer. HDMI Cable (not included) 7.4- DP Connectivity For the monitor to receive DP signals from the computer, use the DP cable to connect the monitor to the computer.
  • Page 10: Basic Operation

    8. Basic Operation 1. Insert one end of the DP cable into your PC's graphics card. A HDMl cable may also be used. 2. Connect the other end of the cable to the corresponding connector on your monitor. Connettore HDMI Connettore DP 3.
  • Page 11: Osd

    10. OSD The On-Screen Display(OSD) Menu may be used to adjust your monitor's settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer's configuration and parts etc.
  • Page 12 10.1-OSD Menu Functions Main Menu Sub-Menu Options Description Input Source NONE Switch to DP signal input NONE HDMI1(2.0) Switch to HDMI1 signal input HDMI2(1.4) NONE Switch to HDMI2 signal input NONE HDMI3(1.4) Switch to HDMI3 signal input Brightness/ Brightness 0~100 Adjust display brightness Contrast Blacklevel...
  • Page 13 Main Menu Sub-Menu Options Description Multi-Window Multi-Window Off, PIP Mode, Select PIP/PBP modes according to the PBP 2Win number of input signals etc. Sub Win2 Input DP, HDMI1, Select according to input signal for PIP/ PBP mode HDMI2, HDMI3 PIP Size Small, Medium, Adjust the PIP/PBP display window size Large...
  • Page 14: Eco Modes And Gameplus Switching

    11. ECO Modes and Gameplus Switching 1. Press any of the buttons ( M, , , E, ) to activate the navigation window. 2. Press button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
  • Page 15: Technical Specifications

    12. Technical Specifications ITMC32V241FHD Model 31.5" Screen Size 16:9 Aspect Rstio E-LED Backlight Min.250cd/m Typ.300cd/m Brightness Panel DP1.2: 1920*1080@240Hz Resolution HDMI1.4: 1920*1080@120Hz HDMI2.0: 1920*1080@240Hz 240Hz Refresh Rate Response Time 1ms MPRT 178°(H) / 178°(V) Viewing Angle 3000:1 Contrast Ratio 75*75mm...
  • Page 17 ITMC32V241FHD Manuale utente Sommario 1. Misure di sicurezza 2. Linee guida per la manutenzione 3. Contenuto della scatola 4. Panoramica del prodotto 5. Installazione Stand 6. Installazione del supporto 7. Opzioni di connettività 8. Funzionamento di base 9. lndicatore LED 10.
  • Page 19: Misure Di Sicurezza

    1. Misure di sicurezza AWISO: lstruzioni di sicurezza Non posizionare il monitor in presenza di liquidi, umidità o aprire la scocca per evitare scosse, pericoli elettrici e/o meccanici. Funzionamento • Tenere il monitor lontano dalla luce solare diretta e da qualsiasi altra fonte di calore. •...
  • Page 20: Contenuto Della Scatola

    Connettore VESA Connettore VESA DP x 1 Cavo superiore x 1 inferiore x 1 ITMC32V241FHD Manuale utente Sommario 1. Misure di sicurezza 2. Linee guida per la manutenzione 3. Contenuto della scatola 4. Panoramica del prodotto 5. Installazione Stand 6.
  • Page 21: Panoramica Del Prodotto

    4. Panoramica del prodotto 4.1 - Pulsanti del monitor M Pulsante Menu: Premere per visualizzare il menu OSD o i sottomenu. Tasto Giù: Premere per spostarsi verso il basso nei menu. Pulsante Su: Premere per spostarsi verso l'alto nei menu. E Pulsante di uscita: Premere per uscire.
  • Page 22: Installazione Stand

    5. lnstallazione Stand Assicurarsi che il monitor sia posizionato su una superficie piana prima di rimuovere lo stand . 1. Aprire la confezione, estrarre il prodotto con l’imballo di polistirolo e posizionarlo delicatamente sopra un tavolo. Rimuovere le parti extra e il polistirolo che copre la parte posteriore del monitor.
  • Page 23: Installazione Del Supporto

    6. lnstallazione del supporto Questo monitor include solo viti che possono essere utilizzate quando si collega il monitor a un supporto di tipo VESA 75*75 mm. Nessun supporto VESA o accessorio di montaggio è incluso. 1. Aprire la confezione, estrarre il prodotto con l’imballo di polistirolo e posizionarlo delicatamente sopra un tavolo.
  • Page 24: Opzioni Di Connettività

    7. Opzioni di connettività 7.1 – Collegamento del cavo di alimentazione Collegare il cavo di alimentazione incluso al connettore di alimentazione, quindi collegare l'altra estremità in una presa a murot. Power Cable 7.2 – Collegamento degli auricolari Collega gli auricolari per ricevere i segnali audio dal monitor. Earphones (not included) L'ascolto di suoni a volume troppo elevato per un periodo prolungato potrebbe danneggiare in modo permanente l'udito.
  • Page 25 7.4 – Connettività HDMI Affinché il monitor riceva segnali HDMI dal computer, utilizzare il cavo HDMI per collegare il monitor al computer. HDMI Cable (not included) 7.3 – Connettività DP Affinché il monitor riceva segnali DP dal computer, utilizzare il cavo DP per collegare il monitor al computer.
  • Page 26: Funzionamento Di Base

    8. Funzionamento di base 1. lnserire un'estremità del cavo DP nella scheda grafica del PC. Può essere utilizzato anche un cavo HDMI. 2. Collegare l'altra estremità del cavo al connettore corrispondente sul monitor. HDMI Connector DP Connector 3. Collegare il cavo di alimentazione al monitor, quindi collegare l'altra estremità alla fonte di alimentazione.
  • Page 27: Osd

    10. OSD II menu OSD (On-Screen Display) può essere utilizzato per regolare le impostazioni del monitor e viene visualizzato sullo schermo dopo aver acceso il monitor e aver premuto il tasto M. Quando si utilizza il monitor per la prima volta, le impostazioni verranno automaticamente regolate sulle impostazioni ottimali in base alla configurazione e alle componenti del computer, ecc.
  • Page 28 10.1– Funzioni del menu OSD Menu Sotto-menu Opzioni Descrizione Principale Origine Nessuna Segnale di ingresso DP ingresso HDMI1(2.0) Nessuna Segnale di ingresso HDMI1 HDMI2(1.4) Segnale di ingresso HDMI2 Nessuna HDMI3(1.4) Nessuna Segnale di ingresso HDMI3 Luminosità/ Luminosità 0~100 Regola la luminosità del display Contrasto Livello del ner 0~100...
  • Page 29 Menu Sotto-menu Opzioni Descrizione Principale Audio Disattiva audio Attiva, Disattiva Attiva / disattiva la modalità silenziosa Volume 0-100 Regola il volume dell'audio Origine Audio HDMI1, HDM2, Seleziona l'ingresso del segnale audio HDMI3, DP tramite HDMI o DP Multifinestra Multifinestra Disattiva, Modalità Seleziona le modalità...
  • Page 30: Modalità Eco E Gameplus

    11. Modalita ECO e Gameplus 1. Premere uno dei pulsanti ( ) per attivare la finestra di navigazione. M, , , E, 2. Premere per selezionare la modalità Gameplus. In base alle esigenze del gioco, scegliere l'icona del gioco corrispondente. Queste icone di gioco sono progettate principalmente per ottimizzare l'obiettivo durante i giochi di tiro, anche se possono essere utilizzate per altri scenari.
  • Page 31: Specifiche Tecniche

    Specifiche tecniche ITMC32V241FHD Modello Dimensioni dello schermo 31.5" 16:9 Proporzioni E-LED Retroilluminazione Luminosita Min.250cd/m Typ.300cd/m Pannello Risoluzione DP1.2: 1920*1080@240Hz HDMI1.4: 1920*1080@120Hz HDMI2.0: 1920*1080@240Hz 240Hz Frequenza 1ms MPRT Tempo di risposta 178°(H) / 178°(V) Angolo di visualizzazione 3000:1 Rapporto di contrasto...
  • Page 33 32G6H ITMC32V241FHD 说明书 iTek 2021.08.31 140*210mm 100G 双胶纸 彩色 骑马钉 龙艳兰 备注:页码P数不够,可在封页内加空白页...
