Camp Chef BS40C Instruction Manual

WARNING: Read Thoroughly
Before Use
DO NOT DISCARD THESE SAFETY
INSTRUCTIONS
IF YOU SMELL GAS
1. Disconnect gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately leave the
premises and call your gas supplier or local
fire department.
FOR OUTDOOR USE ONLY
If stored indoors, detach hoses and leave
fuel cylinder outdoors, with valve closed
and plugged.
FUEL TYPE
This unit is designed for use with propane
only. No other fuel is approved for use with
this unit.
FUEL CYLINDER
Always store fuel bottles in a safe outdoor
area with valve closed and plugged. Follow
the manufacturer's recommendation
for proper use and storage of propane
cylinders. Do Not Place Propane Cylinders
Directly Under Any Part of the Burners.
CAUTION
Place the tank so as to minimize the
possibility of someone tripping over the
connection hoses while the cooker is set
up. Never Lean Over or Stand too Near the
Cooker, or Allow Children or Pets Near the
Cooker During Use.
COMBUSTIBLE MATERIALS
During operation of cooker, insure proper
clearance from any combustible materials,
in relation to the top, sides and back of
cooking appliance. For outside use only.
Do not use near flammable walls or under
eaves or overhangs of homes or garages.
Never leave unattended while hot or in use.
Allow cooker to cool before take down and
storage. The propane tank must always be
stored outdoors in a well ventilated space.
Never Stand or Lean Over Cooker Burner
While Lighting.
FOR YOUR SAFETY
Follow all safety, set-up, lighting and
cooking instructions. Do not store or use
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THIS PRODUCT.

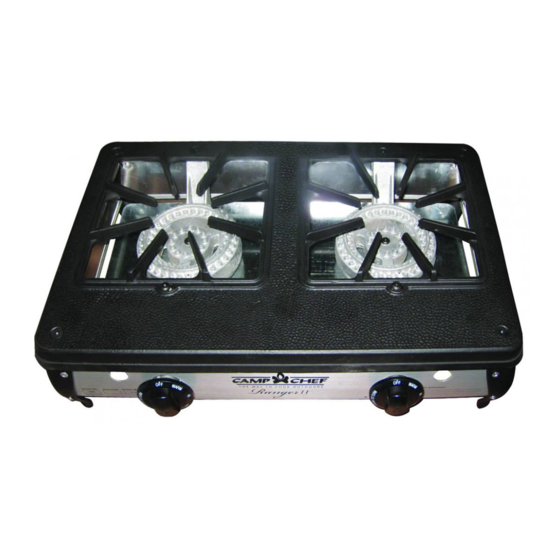

2 Burner Blind Stove
Model: BS40C
• Two Universal Output (34,000 BTU/hr)
Cast Burners
• Appliance Style Temperature Controls
• Built-in Ignitor in Control Knobs
3 Burner Blind Stove
Model: BS60C
• Three Universal Output (51,000 BTU/hr)
Cast Burners
• Appliance Style Temperature Controls
• Built-in Ignitor in Control Knobs
Regulator Model #
150/451
10" Maximum Pot Diameter
S T E P 1
Use an adjustable or 3/4" wrench to connect flare fitting
to stove fitting.Tighten securely with wrench.
DO NOT OVER-TIGHTEN.
Before attaching regulator to tank, ensure that all
valves are in the OFF position.
S T E P 2
Attach regulator to tank. Check all connections to
ensure tightness. With all valves in the off position,
apply a soapy water solution to all fittings, valves and
connections. Turn gas on at the tank and check for
leaks at all connections. Small bubbles will appear if
connection leaks. Tighten as needed.
S T E P 3
Turn Tank on slowly. Turn control valve slowly to the
High position. Cooker will ignite. Adjust controls to
desired temperature. If ignition does not occur in 5
seconds, turn the burner control(s) off, wait 5 minutes,
and repeat lighting procedure.
If built-in ignitor will not ignite burner, turn the
controls to high and use a long nose ignitor to ignite
the stove.
R E G U L A T O R
New Type 1 Connection: Right hand turn to connect
securely to New Type 1 tank.
T R O U B L E S H O O T I N G
PROBLEM WITH FLAME?
(Flame should burn blue with a hint of yellow.) Yellow
Flame: Adjust air shutter open until burner shows blue
flame.
Still Yellow: Shut off valve(s) at stove and fuel tank
Through air shutter opening, clean venturi (burner
neck) of obstructions such as cobwebs, dirt or bugs.
Open Tank Valve Slowly
Small Flame: Flame will not adjust any larger... (Safety
Feature: New Low Pressure Regulator will detect a
sudden use of gas and automatically go into a "low
flow" mode and needs to be reset) Turn off all valves
at stove and at tank. Assure all fittings are tight and in
good repair. Test for leaks. Repeat steps 2, 3 and 4.
Open Tank Valve Slowly
Low Pressure
Burner
KEEP FOR FUTURE REFERENCE
