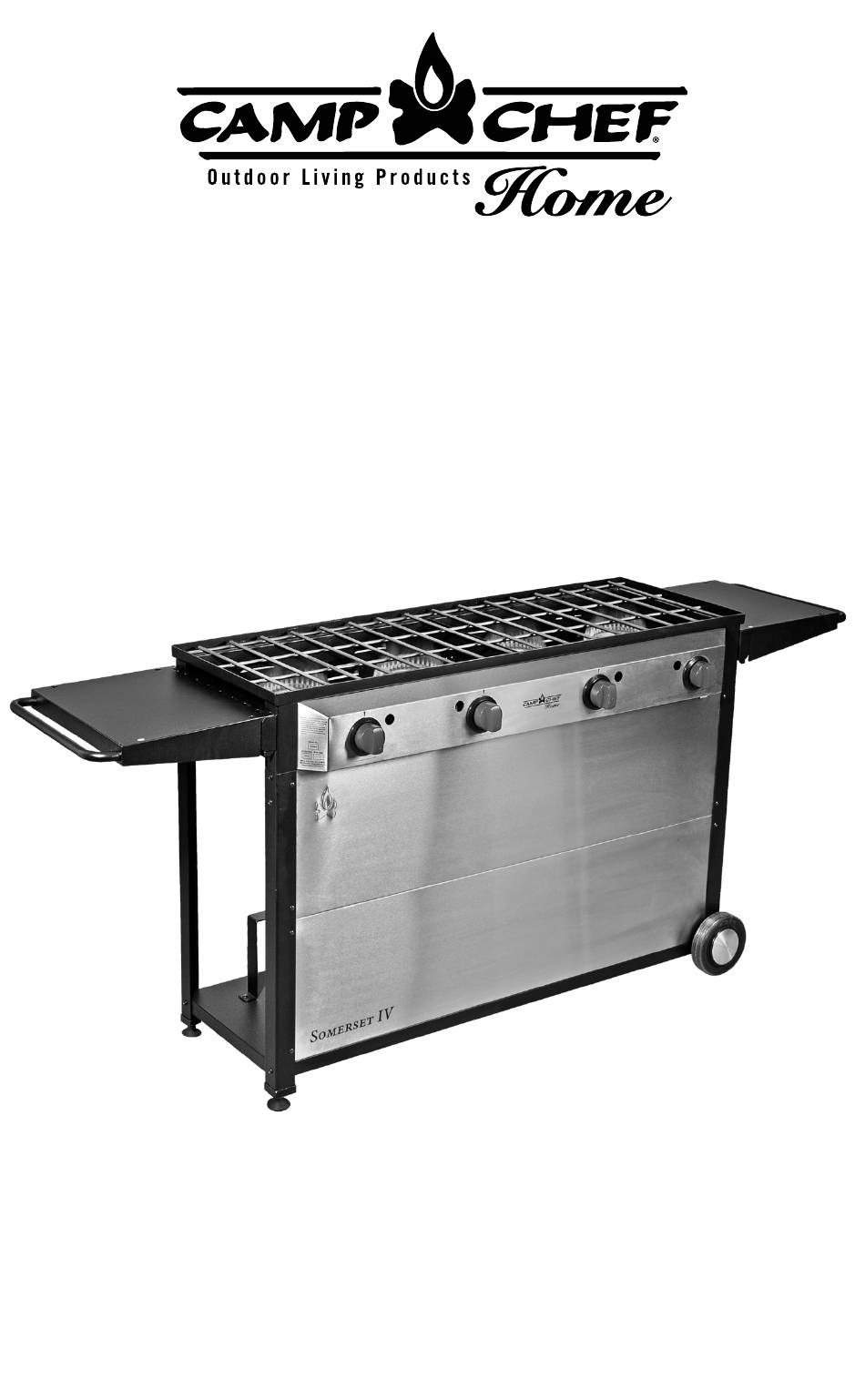

SOMERSET IV
CCH4 STOVE ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Home Somerset IV and is the answer not in the manual?

Questions and answers

Summary of Contents for Camp Chef Home Somerset IV

  • Page 1 SOMERSET IV CCH4 STOVE ASSEMBLY INSTRUCTIONS...
  • Page 2 READ ALL ASSEMBLY INSTRUCTIONS BEFORE BEGINNING THE ASSEMBLY PROCESS. Remove the top pot grate(s) and set aside. 1. Place stove upside down with the front facing forward. Install the 4 legs as shown using M6 x 12MM Button Head Screws and 6MM lock washers. Note that the rear legs use 4 screws each and the front legs use 2 screws each.
  • Page 3 6mm LOCK WASHER 2. Install the top panel using the supplied screws as shown. Do not tighten hardware at this point. 3. Install the bottom panel using the supplied screws as shown. Do not tighten M6 X 12mm LONG BUTTON HEAD SCREW hardware at this point.
  • Page 4 13. Assemble side shelves by inserting hook over the bottom rod of the brackets. Lift 6mm LOCK WASHER shelf up and rotate into upper rod. Press shelf down to lock into position. CART SHELF 14. Reinstall pot grates. WWW.CAMPCHEF.COM 1115_CCH_Instructions © 2016 Camp Chef...
