Sunex HD 5740 Manual

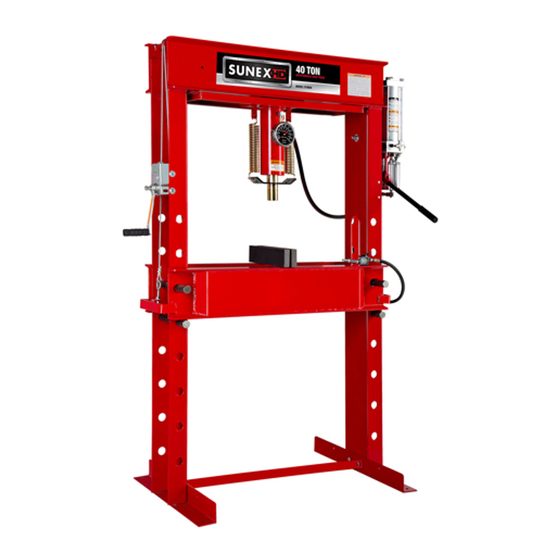

40 ton hydraulic shop press w/ winch
Hide thumbs

Advertisement

Quick Links

MANUAL
CONTENTS:
Page 1 Specifications
2 Safety Information and Warranty Information
9
10
11-12
Winch Kit List and Winch Installation Instructions
15-16 Notes
PRESS SPECIFICATIONS
Sunex Part No.
Total Height
5740
74"
5750
74"
5740, 5750
5740 - 40 Ton Hydraulic Shop Press w/ Winch
5750 - 50 Ton Hydraulic Shop Press w/ Winch
Inside Width
Press Feet Length
35"
29.75"
35"
29.75"
Bed Width
Ram Stroke
Pin Diameter
13"
6.75"
1.25"
13"
6.75"
1.25"
PB Winch
Sliding Head
Press Plates Included
Y
Y
Y
Y
Y(2)
Y(2)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5740 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunex HD 5740

Summary of Contents for Sunex HD 5740

  • Page 1: Table Of Contents

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch MANUAL CONTENTS: Page 1 Specifications 2 Safety Information and Warranty Information 3 Parts List 4-8 Assembly Instructions Procedure for Bleeding Air Pump Instructions...
  • Page 2 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch SAFETY INFORMATION THIS OPERATING MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. READ CAREFULLY AND UNDERSTAND ALL INFORMATION BEFORE OPERATING THIS TOOL. SAVE THIS MANUAL FOR FUTURE USE.

  • Page 3: Parts List

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch PARTS LIST ESTIMATED ASSEMBLY TIME: 45 MINUTES Two Stage Pump and Ram - 1 Press Frame - 1 Ram Frame - 1...

  • Page 4: Assembly Instructions

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch ASSEMBLY INSTRUCTIONS Note: In the upright position, inner bracing should form an inverted "v" with the narrower space facing the top of the press.
  • Page 5 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch ASSEMBLY INSTRUCTIONS CONTINUED Use bolts, washers and nuts to attach Z Bar to both sides of the press. Cross-section of press Note: Check all bolts for tightness.
  • Page 6 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch ASSEMBLY INSTRUCTIONS CONTINUED WARNING Pins must be COMPLETELY through BOTH SIDES of frame. Stand unit upright Slide bed above holes and hold in place...
  • Page 7 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch RAM FRAME ASSEMBLY INSTRUCTIONS Note: Handle ram carefully to avoid damage to gauge or gauge face. Do not disconnect hoses prior to assembly.
  • Page 8 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch PUMP AND RAM ASSEMBLY INSTRUCTIONS Note: There are two sets of holes for bolts. Use centermost holes on the side. Note: Hose must run BEHIND frame.

  • Page 9: Procedure For Bleeding Air

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch WARNING DO NOT attempt to operate pump unless the BREATHER VALVE IS OPEN. Valve is closed prior to shipping to prevent the loss of hydraulic fluid.

  • Page 10: Pump Instructions

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch PUMP INSTRUCTIONS This symbol alerts you to the possibility WARNING of serious injury or death if instructions are not followed. Failure to heed these warnings may result in loss of load, damage to the press and/or failure resulting in property damage, personal or fatal injury.
  • Page 11 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch WINCH KIT PARTS LIST Cable Clamp - 1 Winch - 1 1/2"-13 x 1-1/2" Hex Head Bolts - 2 Long Cable - 1 1/2"...
  • Page 12 5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch Note: Refer to manual from winch manufacturer for detailed instructions on winch assembly and cable threading procedure. WINCH INSTALLATION INSTRUCTIONS CONTINUED LONG CABLE top view of press...

  • Page 13: Replacement Parts List

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch REPLACEMENT PARTS LIST Hydraulic Shop Press With Winch ITEM NO. SUNEX PART NO. DESCRIPTION QTY. ITEM NO. SUNEX PART NO. DESCRIPTION QTY.

  • Page 14: Pump And Ram Exploded Parts Diagram

    5740 - 40 Ton Hydraulic Shop Press w/ Winch 5750 - 50 Ton Hydraulic Shop Press w/ Winch PUMP AND RAM EXPLODED PARTS DIAGRAM See Replacement Parts List for parts available separately. Individual parts pictured are components of the Seal Kit, RSCBP1217.

This manual is also suitable for:

5750
