Sunex HD 5740AH Owner's Manual

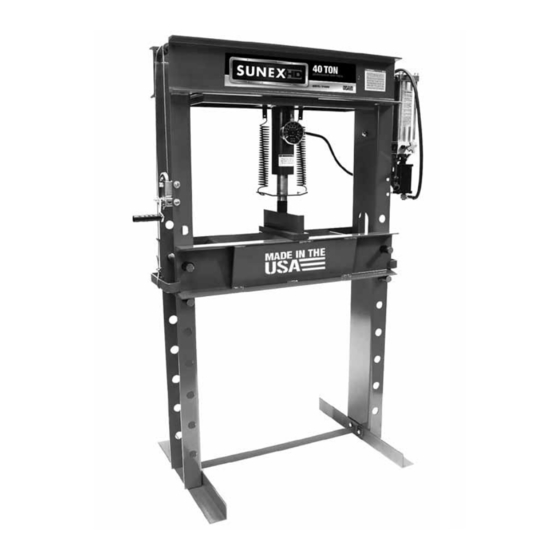

40 / 50 ton air/hydraulic shop press
Hide thumbs

Advertisement

Quick Links

OWNER'S MANUAL
CONTENTS:
Page 1 Specifications
2 Safety Information and Warranty Information
7
8
9
10-11 Winch Kit Parts List and Winch Installation Instructions
PRESS SPECIFICATIONS
Sunex Part No.
Total Height
5740AH
74"
5750AH
74"
5740AH, 5750AH
Inside Width
Press Feet Length
35"
29.75"
35"
29.75"
5740AH - 40 Ton Air/Hydraulic Shop Press
5750AH - 50 Ton Air/Hydraulic Shop Press
Bed Width
Ram Stroke
Pin Diameter
8.25"
6"
1.25"
8.25"
6"
1.25"
PB Winch
Sliding Head
Press Plates Included
Y
Y
Y
Y
© Copyright 2014, Sunex Tools ®
Y(2)
Y(2)
rev. 12/05/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5740AH and is the answer not in the manual?

Questions and answers

Related Manuals for Sunex HD 5740AH

Summary of Contents for Sunex HD 5740AH

  • Page 1: Table Of Contents

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press OWNER'S MANUAL CONTENTS: Page 1 Specifications 2 Safety Information and Warranty Information 3 Parts List 4-6 Assembly Instructions Pump and Ram Assembly Instructions Procedure for Bleeding Air...
  • Page 2 5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press SAFETY INFORMATION THIS OPERATING MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. READ CAREFULLY AND UNDERSTAND ALL INFORMATION BEFORE OPERATING THIS TOOL. SAVE THIS MANUAL FOR FUTURE USE. This symbol alerts you to the possibility...

  • Page 3: Parts List

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press PARTS LIST ESTIMATED ASSEMBLY TIME: 30 MINUTES Air Motor Pump and Ram - 1 Press Frame - 1 Press Bed - 1 Pump Extension Handle - 1...
  • Page 4 5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press ASSEMBLY INSTRUCTIONS Note: In the upright position, inner bracing should form an inverted "v" with the narrower space facing the top of the press. WARNING Be aware of jagged edges on frame.
  • Page 5 5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press ASSEMBLY INSTRUCTIONS CONTINUED Use bolts, washers and nuts to attach Z Bar to both sides of the press. Cross-section of press Note: Check all bolts for tightness.

  • Page 6: Assembly Instructions

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press ASSEMBLY INSTRUCTIONS CONTINUED WARNING Pins must be COMPLETELY through BOTH SIDES of frame. Stand unit upright Slide bed above holes and hold in place Secure pins underneath bed, one at a time...

  • Page 7: Pump And Ram Assembly Instructions

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press PUMP AND RAM ASSEMBLY INSTRUCTIONS Note: Handle ram carefully to avoid damage to gauge or gauge face. Do not disconnect hoses prior to assembly. Note: There are two sets of holes for bolts.

  • Page 8: Procedure For Bleeding Air

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press WARNING DO NOT attempt to operate pump unless the BREATHER VALVE IS OPEN. Valve is closed prior to shipping to prevent the loss of hydraulic fluid.

  • Page 9: Pump Instructions

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press PUMP INSTRUCTIONS WARNING This symbol alerts you to the possibility of serious injury or death if instructions are not followed. Failure to heed these warnings may result in loss of load, damage to the press and/or failure resulting in property damage, personal or fatal injury.
  • Page 10 5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press WINCH KIT PARTS LIST Cable Clamp - 1 Winch - 1 1/2"-13 x 1-1/2" Hex Head Bolts - 2 Long Cable - 1 1/2" Nuts - 2...
  • Page 11 5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press Note: Refer to manual from winch manufacturer for detailed instructions on winch assembly and cable threading procedure. WINCH INSTALLATION INSTRUCTIONS CONTINUED LONG CABLE top view of press...

  • Page 12: Replacement Parts List

    5740AH - 40 Ton Air/Hydraulic Shop Press 5750AH - 50 Ton Air/Hydraulic Shop Press REPLACEMENT PARTS LIST Air/Hydraulic Shop Press ITEM NO. SUNEX PART NO. DESCRIPTION QTY. ITEM NO. SUNEX PART NO. DESCRIPTION QTY. RS345009 2" Pushing Adaptor (Spring) RSCBP1204 Hose &...

This manual is also suitable for:

5750ah
