- Page 1 User Manual PT-MA-HD44M User Manual 4x4 Matrix 4K (60Hz 4:4:4) HDR10 and Audio Extraction Model PT-MA-HD44M Designed in Germany © 2021 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Table Of Contents
User Manual PT-MA-HD44M Preface ............................3 Trademarks ............................ 3 SAFETY PRECAUTIONS ........................ 3 Introduction to PT-MA-HD44M ....................4 Features ............................4 Package Contents ........................4 Specifications ..........................4 Panel Descriptions ........................5 Connecting and Operating ......................6 Application Diagram ........................7 Remote Control Description ..................... -
Page 3: Preface
User Manual PT-MA-HD44M Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. -
Page 4: Introduction To Pt-Ma-Hd44M
PT-MA-HD44M Introduction to PT-MA-HD44M The PT-MA-HD44M is a HDMI 2.0 4x4 Matrix supporting 4K@60Hz (4:4:4) HDMI. It enables any one of the 4 HDMI sources to any one of the 4 HDMI displays, and with Phoenix and Coaxial ports for audio extraction. As well as supporting multiple control modes, such as... -
Page 5: Panel Descriptions

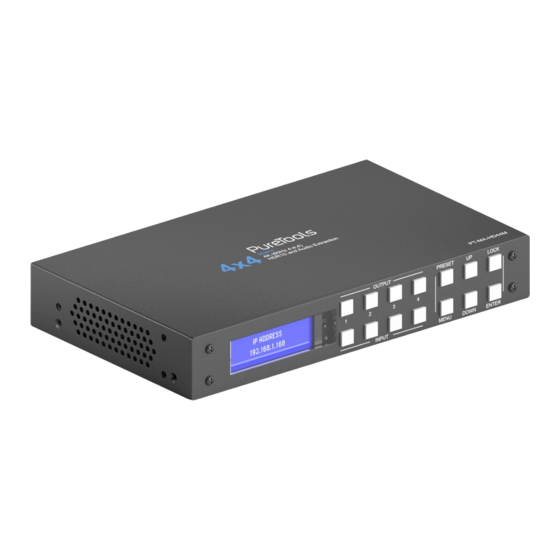

User Manual PT-MA-HD44M Panel Descriptions Front panel ① IR receive window. ② Output 1-4: Short press to choose one output, press again to cancel; Long press to choose all output, long press again to cancel. ③ Input 1-4: Short press to choose one input (workable only if choose the output already);... -
Page 6: Connecting And Operating
User Manual PT-MA-HD44M Rare panel ① Analog audio out ② S/PDIF audio out ③ RS232 for control ④ IR-Ext ⑤ Ethernet port ⑥ DC12V/2A input ⑦ HDMI output port ⑧ HDMI input port Connecting and Operating 1. Connect source devices to input ports of the matrix 2. -
Page 7: Application Diagram
User Manual PT-MA-HD44M Application Diagram Remote Control Description ① Power on/Standby. ② M: Mute the HDMI output audio ③ W: Lock remote control ④ Output 1-4 ⑤ All outputs select INPUT-Y: a. Press all button b. Press INPUT-Y button (Y = input 1 to 4), then INPUT-Y switched to ALL OUTPUTS. -
Page 8: Panel Control Description
User Manual PT-MA-HD44M Note: all buttons are short press, no function for long press Power on/standby: short press to standby mode, LCD screen will show ”System Shutdown”, HDMI output 5V will disconnect and TV will go blank. Short press again to wake device, HDMI output returns to normal. -
Page 9: Video Control
User Manual PT-MA-HD44M 1.2 Video control There are 2 sub-menus in video interface:1. switching 2. On/Off Video switching ① select "Video “in the main menu, press "ENTER" button. Operation: ② press “up and down” button to choose “Switching” . ③ press "ENTER” to enter the next sub-menu ④press the “up and down”... - Page 10 User Manual PT-MA-HD44M Output switch control You can image mute any output port,or image mute all output ports. Output video is default not muted ① in the main menu, select "Video" and press "ENTER" button Operation: ② press “up and down “button to select “On/Off”...
-
Page 11: Audio Control Interface
User Manual PT-MA-HD44M 1.3 Audio control interface There are 2 sub-menus in audio control interface: Line out, De-Embed (both are default open) Switch output audio “Line out “means switch HDMI output audio, able to mute the TV sound from any one channel HDMI output. -
Page 12: Edid Setting Interface
User Manual PT-MA-HD44M Audio extraction control “De -Embed” - Select the output audio for both analog and SPDIF audio Channel audio output, or mute ① select “Audio” in main menu and press ”ENTER” button. Operation： ② press “up and down” button to select “De -Embed”, press “ENTER” button, the bottom color of the selected turns to white，... - Page 13 User Manual PT-MA-HD44M Example: switch default1 to output1: Operation： 1. select “EDID” in main menu and press ”ENTER” button 2. press “up and down” button to select “Input 1”（All = all inputs） 3. press "ENTER" button to enter the next sub-menu 4.
-
Page 14: Preset Application
User Manual PT-MA-HD44M 1.5 Preset application Preset interface can save the current video,audio, EDID, system setting, etc..., supports 8 different presets, can preset through web, command, panel button, and recall. Preset control interface has three sub-menu: Call scene Save scene Clear scene ①select “Preset”... -
Page 15: Setup Interface
User Manual PT-MA-HD44M 1.6 Setup interface Setup interface can set serial port baud rate, DHCP switch, device reboot and factory reset. Baud rate setting 4 options for baud rate setting: 9600,19200,57600,115200. The default serial port is 115200 Below example is setting baud rate to 9600. - Page 16 User Manual PT-MA-HD44M Press “ENTER” to complete setting DHCP switch DHCP On: dynamic IP address; DHCP Off: static IP address (default is DHCP off) DHCP on operation: 1. Select “Setup” in main menu and press ”ENTER” button. 2. Press “up and down” button to select “DHCP” setting 3.
- Page 17 User Manual PT-MA-HD44M Factory reset It is an initializing setting for the device function(default is “NO”).There are two factory settings: 1.Factory common: factory reset for video switch, EDID, audio and setting (IP address can’t be factory rest when under “common”).
-
Page 18: Query Information Interface
User Manual PT-MA-HD44M 1.7 Query information interface Query IP and system information. System interface: query company name,device name and version information IP interface: query device IP address, MAC address and DHCP status. ①select “INFO” in main menu and press ”ENTER” button Operation: ②press “up and down”... - Page 19 User Manual PT-MA-HD44M...
-
Page 20: Rs232 Control
User Manual PT-MA-HD44M RS232 Control Comport setting: Choose correct COM port that connect to PC in parameter configuration area Baud Rate: 115200 bps(Default) Parity: None Data Bit: 8 bit Stop Bit: 1 bit Enter Port Command in Send options. Command List 1). -
Page 21: Web Control
User Manual PT-MA-HD44M The following table is only an example.Please refer to the list of instructions. Type Format Value Regulation Command head #cmd Can be used to search command,after receiving command, the system Explain will feedback all open command format fields... - Page 22 User Manual PT-MA-HD44M Log in by browser Type in user name and password (default user name: admin; default password: admin) Note:suggest to use latest version of Google, firefox, IE11 browser for better compatibility.
- Page 23 User Manual PT-MA-HD44M...
- Page 24 User Manual PT-MA-HD44M...
-
Page 25: Firmware Upgrade
User Manual PT-MA-HD44M Firmware Upgrade Web upgrading after MCU application layer upgrade（Both Web and MCU application layer Support RS232 port upgrading), if burning with encrypted firmware, it may fail to burn or can’t work normally.Should decrypt firmware before burning. Burning ways as below: MCU application layer upgrade Connect unit to PC with USB2.0 to RS232 cable, open software... - Page 26 User Manual PT-MA-HD44M Web Upgrade Connect unit to PC with USB2.0 to RS232 cable open software”UART_ISP_V1.6.exe” select correct port set baud rate:115200 type in “F0” in PORT select PATH click UPDATA to finish upgrading.
-
Page 27: After-Sales Service
User Manual PT-MA-HD44M After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). -
Page 28: Asking For Assistance
User Manual PT-MA-HD44M Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
