- Page 1 User Manual PT-PMS-82S User Manual 8x2 HDMI 2.0 Seamless Matrix Switcher Model PT-PMS-82S Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-PMS-82S Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-PMS-82S REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PMS-82S complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PMS-82S complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PMS-82S SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Specification ..........................3 2.1 PT-PMS-82S Matrix Switcher ..................3 2.2 PT-HDBT-200 Extender Kit ..................... 5 3. Panel Description ........................7 3.1 Matrix Switcher Front Panel ................... 7 3.2 Matrix Switcher Rear Panel .................... - Page 6 User Manual PT-PMS-82S 7.4.2 EDID Management ..................... 21 7.4.3 Relay Control ...................... 22 7.5 CEC Control ........................23 7.6 Tags Setting ........................26 7.7 RS232 Control ........................ 27 7.8 Network Setting ......................29 7.9 Password Setting ......................30 7.10 GUI Upgrade ......................... 31 8.
-
Page 7: Product Introduction

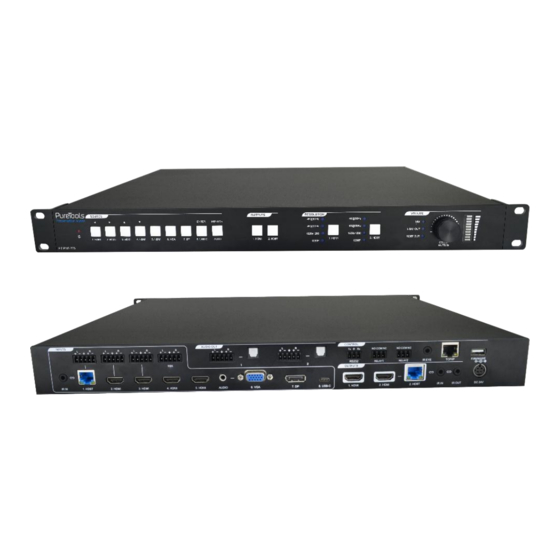

User Manual PT-PMS-82S 1. Product Introduction Thanks for choosing the PT-PMS-82S 8x2 multi-format seamless presentation matrix switcher with one PT-HDBT-200 extender kit! The matrix switcher simplifies meeting room and presentation space system integration by providing one HDBaseT input, four HDMI inputs, one VGA input, one DP input, one USB-C input, one HDBaseT output and one HDMI output. -
Page 8: Package List
Controllable via RS232 local and pass-through, IR local and pass-through, TCP/IP, relay, CEC and on OSD. 1.2 Package List 1x PT-PMS-82S 8x2 HDMI 2.0 Seamless Matrix Switcher 2x Mounting Ears with 6 Screws 4x Plastic Cushions ... -
Page 9: Specification
User Manual PT-PMS-82S 2. Specification 2.1 PT-PMS-82S Matrix Switcher Video Input Video Input (1) HDBaseT, (4) HDMI, (1) Display Port, (1) VGA, (1) USB-C (1) RJ45, (4) Type-A female HDMI, (1) Type-A female DisplayPort, Video Input Connector (1) 15-pin female VGA, (1) Type-C USB 3.0... - Page 10 User Manual PT-PMS-82S Audio Output (1) Balanced audio (L+R) for 1-HDMI output audio de-embedding (1) Digital SPDIF audio (L+R) for 1-HDMI output audio de-embedding Audio Output (1) Balanced audio (L+R) for 2-HDBT output audio de-embedding (1) Digital SPDIF audio (L+R) for 2-HDBT output audio de-embedding...
-
Page 11: Hdbt-200 Extender Kit
User Manual PT-PMS-82S General External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 6A Power Consumption 85W (Max) Dimension (W*H*D) 436.4mm x 44mm x 356.5mm Net Weight 2.87KG 2.2 PT-HDBT-200 Extender Kit Transmitter (TX) Input (1) HDMI Input Connector... - Page 12 User Manual PT-PMS-82S General Transmission Mode HDBaseT 1080P@60Hz ≤ 230 feet (70 meters), Transmission Distance 4K@60Hz ≤ 131 feet (40 meters) HDMI Version HDCP Version Bandwidth 18Gbps Power Consumption 14W (max) Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃...
-
Page 13: Panel Description
User Manual PT-PMS-82S 3. Panel Description 3.1 Matrix Switcher Front Panel SOURCE OUTPUTS RESOLUTION VOLUME 4K@60Hz 4K@60Hz Presentation Matrix ENTER MENU/2s 4K@30Hz 4K@30Hz HDMI OUT 1920x1200 1920x1200 HDBT OUT 1. HDBT 2. HDMI 3. HDMI 4. HDMI 5. HDMI 6. VGA 7. -
Page 14: Matrix Switcher Rear Panel
User Manual PT-PMS-82S ⑤ VOLUME: Press the volume knob in to toggle among MIX, HDMI OUT and HDBT OUT audio control, and the corresponding LED will illuminate blue. Rotate the knob to increase or decrease the volume of the selected audio. - Page 15 User Manual PT-PMS-82S 8-USB-C: Type-C USB port to connect the device with SlimPort output, e.g. Macbook. IR IN: 3.5mm jack to connect the IR receiver for IR pass-through. MIX: 5-pin terminal block to connect the audio source for global audio ...
-
Page 16: Transmitter Front And Rear Panel
User Manual PT-PMS-82S 3.3 Transmitter Front and Rear Panel HDBT OUT DC 12V UPDATE B UPDATE A CTRL ① MODE SWITCH: Put the Mode switch in the CTRL position for normal operation and to allow RS232 control pass-through. Put the switch in the UPDATE A position to update the Valens IC program. -
Page 17: Receiver Front And Rear Panel
User Manual PT-PMS-82S 3.4 Receiver Front and Rear Panel HDBT IN DC 12V UPDATE B UPDATE A CTRL ① MODE SWITCH: Put the Mode switch in the CTRL position for normal operation and to allow RS232 control pass-through. Put the switch in the UPDATE A position to update the Valens IC program. -
Page 18: System Connection
User Manual PT-PMS-82S 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 19: Button Control
User Manual PT-PMS-82S 5. Button Control 5.1 Manual Switching When the switcher is in manual switching mode, the AUTO button LED goes out. Please following the below steps to switch input source to output channel. 1) Press any one of eight input buttons to select input source, and the corresponding button LED turns blue. -
Page 20: Resolution Selection
User Manual PT-PMS-82S When in auto mode, the switcher will switch according to the following rules: The switcher will switch to the first available active input starting at input 1 to 8. New input: The switcher will automatically select the new input once detecting a ... -
Page 21: Ir Remote Control
User Manual PT-PMS-82S 6. IR Remote Control Connect IR receiver to the IR EYE port, the switcher can be controlled by the following IR remote. ① Select input source ② Select output channel ③ Press AUTO to enable automatic switching mode, and then select output channel. -
Page 22: Gui Control
User Manual PT-PMS-82S 7. GUI Control The switcher also be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.250.0 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage: Username: admin Password: admin Type the user name and password, and then click Login to enter the section for video switching. -
Page 23: Video Switching
User Manual PT-PMS-82S 7.1 Video Switching HDMI OUTPUT: Switch the selected input source to HDMI output. Click AUTO to enable/disable automatic switching mode. HDBT OUTPUT: Switch the selected input source to HDBT output. Click AUTO to enable/disable automatic switching mode. -
Page 24: Resolution Selection
User Manual PT-PMS-82S 7.2 Resolution Selection HDMI OUTPUT: Select the HDMI output video resolution. Press AUTO to automatically select the best output resolution for satisfying the connected display. HDBT OUTPUT: Select the HDBT output video resolution. Press AUTO to ... -
Page 25: Audio Control
User Manual PT-PMS-82S 7.3 Audio Control 1.HDBT Embedded: Select the external balanced audio (5-pin) to embed in 1.HDBT video input. 2.HDMI Embedded: Select the external balanced audio (5-pin) to embed in 2.HDMI video input. 3.HDMI Embedded: Select the external balanced audio (5-pin) to embed in ... -
Page 26: Configuration
User Manual PT-PMS-82S 7.4 Configuration PoC Setting 7.4.1 Turn on or off PoC for HDBT output port. Turn on or off PoC for HDBT input port. ... -
Page 27: Edid Management
User Manual PT-PMS-82S EDID Management 7.4.2 Select the compatible built-in EDID for the selected input source. Upload user-define EDID. ... -
Page 28: Relay Control
User Manual PT-PMS-82S Relay Control 7.4.3 Set Momentary or Latching relay control mode for Relay 1 and Relay 2. After setting the auto stop time, click Momentary, the projector screen starts to be rolled up or dropped down until the auto stop time is up. -
Page 29: Cec Control
User Manual PT-PMS-82S When click Latching, the NO connection closes, and the NC connection opens. When the delay time is up, the NO connection opens, and the NC connection closes. 7.5 CEC Control If the input sources and display support CEC, they can be controlled by the below control buttons to replace IR remote. - Page 30 User Manual PT-PMS-82S 2) Display Control Select the output display which needs to be control, and then press function button as need.
- Page 31 User Manual PT-PMS-82S 3) User-define The switcher also provides user-define CEC functions, the CEC command can be edited and saved in the Trigger textbox. Select the input source, and then type CEC command in the Trigger 1 or Trigger ...
-
Page 32: Tags Setting
User Manual PT-PMS-82S 7.6 Tags Setting INPUTS: Modify the label of input sources. Preset: Modify the label of presets. ... -
Page 33: Rs232 Control
User Manual PT-PMS-82S 7.7 RS232 Control 1) Port Mode HDBT Transmitter Pass Through: Establish RS232 pass-through communication between the switcher and the HDBaseT transmitter (e.g. PT-HDBT-200-TX). The RS232 port of the switcher can be used to transfer commands to control the third-party device which is connected to the HDBaseT transmitter. - Page 34 User Manual PT-PMS-82S 2) Command Select Local, HDBT In or HDBT Out control mode. Local: Send RS232 commands to control the local third-party which is connected to the RS232 port of the switcher. HDBT In: Send RS232 commands to control the far-end third-party which is connected to the RS232 port of HDBaseT transmitter.
-
Page 35: Network Setting
User Manual PT-PMS-82S 7.8 Network Setting Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. ... -
Page 36: Password Setting
User Manual PT-PMS-82S 7.9 Password Setting Modify the login password. Lock or unlock the front panel buttons. ... -
Page 37: Gui Upgrade
User Manual PT-PMS-82S 7.10 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the desired update file and press Apply, it will start upgrading then. -
Page 38: Rs232 Control
User Manual PT-PMS-82S 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. - Page 39 User Manual PT-PMS-82S The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area.
-
Page 40: Rs232 Communication Command
User Manual PT-PMS-82S 8.2 RS232 Communication Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: All commands not need to end with“<CR><LF>”. In the commands, “[”and “]” are symbols for easy reading and do not need to be ... -
Page 41: Source Switching
User Manual PT-PMS-82S Source Switching 8.2.2 Command Description Feedback Example Demo Mode AV: AV: 1-> 1 AV: 1-> 2 … AV: 1-> 7 Switch to demo testing mode, switch AV AV: 1-> 8 Demo. 1>1, 2>2 and so on. AV: 2-> 1 AV: 2->... -
Page 42: Preset Setting
User Manual PT-PMS-82S Command Description Feedback Example Status[x]. Report the output [x] status. x=1~2 AV: 5-> 1 Report the input channel on output AV:01->01 Status. channel one by one. AV:01->02 Report the connection status of all 01 02 03 04 inputs. -
Page 43: Output Resolution Setting
User Manual PT-PMS-82S Output Resolution Setting 8.2.4 Command Description Feedback Example Set the output resolution of port [X] to [Y]. 1) X=9/10: Output Port HDMI HDBT 2) Y=1~10: Resolution Outport HDMI:720p@50Hz 4K@60Hz VRES/X:Y. Outport HDBT:720p@50Hz 4K@30Hz 1920X1200@60Hz 1080P@60Hz 1080P@50Hz 1600x1200@60Hz... -
Page 44: Audio Control
User Manual PT-PMS-82S Audio Control 8.2.5 Command Description Feedback Example Select external balanced audio (L+R) for Embedded:[x]. HDBT1 Embedded input [x]. x=1~3. Select internal audio for input [x]. UnEmbedded:[x]. HDBT1 UnEmbedded x=1~3. The output [x] audio is mixed with MIX MIXOUT:[x]. -
Page 45: Edid Management
User Manual PT-PMS-82S Command Description Feedback Example HDBT Unmute. %9941. Report the audio status. HDMI Mute. MIX Mute. Volume of HDBT: 9. %9942. Report the audio volume. Volume of HDMI: 30. Volume of MIX: 6. HDBT1 UnEmbedded %9943. Report the external audio status. -
Page 46: Relay Control
User Manual PT-PMS-82S Command Description Feedback Example Example: EDIDM1B1. Set the EDID data of output [x] to input Feedback: EDIDM[x]B[y]. [y]. x=1~2, y=1~5, 7. Input 1 EDID Upgrade OK By 01 EXT EDID! Reset factory default EDID to all input All input EDID Set Default EDIDMInit. -
Page 47: Switcher Baud Rate Setting
User Manual PT-PMS-82S Command Description Feedback Example Auto-adjust the color temperature to SetVGAColorTemp:X. X. X=0~3 (Normal/Cool/Warm) Set the aspect ratio to X. X=0~2 (16:9/ SetVGAAspetRatio:X. 4:3/auto) Set the image mode to X. X=0~3. SetVGAPicMode:X. (dynamic/standard/mild/user) Switcher Baud Rate Setting 8.2.9... -
Page 48: Cec Control
User Manual PT-PMS-82S CEC Control 8.2.10 If the input sources and displays support CEC, they can be controlled by sending CEC commands to replace IR remote. Step 1: According to the below command to enable CEC control. Command Description Feedback Example CECON. - Page 49 User Manual PT-PMS-82S Command Description Example and Feedback CECI0105. CECI[port]05. RIGHT. [CEC]: blue ray right. CECI0109. CECI[port]09. Back to submenu. [CEC]: blue ray menu. CECI010D. CECI[port]0D. Exit. [CEC]: blue ray Exit. CECI0141. CECI[port]41. Volume up. [CEC]: Source VOL + CECI0142.
- Page 50 User Manual PT-PMS-82S Command Description Example and Feedback CECI014C. CECI[port]4C. Backward. [CEC]: blue ray skid backward. CECI016C. CECI[port]6C. Power off. [CEC]: Source Power off. CECI016D. CECI[port]6D. Power on. [CEC]: Source Power on. Control the output display: Command Description Example and Feedback CECO0634.
-
Page 51: Third-Party Device Control
User Manual PT-PMS-82S Third-party Device Control 8.2.11 The switcher supports RS232 pass-through control, the third-party device can be controlled by RS232 command, and the command format as shown below: Command Function Command Example RS232 mode selection: Y=0, Local Control: The RS232 ... - Page 52 User Manual PT-PMS-82S Command Function Command Example xxx: ASCII characters. /+3/3:123456. Y: Represents the RS232 port. Y=1: The RS232 port of switcher. Y=2: The RS232 port of HDBaseT receiver. Y=3: The RS232 port of HDBaseT transmitter. X: Represents the baud rate of ...
-
Page 53: Osd Control
User Manual PT-PMS-82S 9. OSD Control The PT-PMS-82S provides a powerful OSD operation menu, contains 3 parts: optional settings, image settings, and system setting etc. There are two ways to enter OSD menu: 1) Press and hold the MENU/2s button at least two seconds on the front panel. - Page 54 User Manual PT-PMS-82S Note: When set the Picture Mode to User, the Picture Adjust and Colortemp Adjust are available. SOUND MENU OPTION MENU...
- Page 55 User Manual PT-PMS-82S SYSTEM MENU INFO MENU...
-
Page 56: Panel Drawing
OUTPUTS IR IN 1. HDBT 2. HDMI 3. HDMI 4. HDMI 5. HDMI AUDIO 6. VGA 7. DP 8. USB-C 1. HDMI 2. HDMI 2. HDBT IR IN IR OUT DC 24V PT-PMS-82S Matrix Switcher 115.0 mm PT-HDBT-200-TX HDBaseT Transmitter... - Page 57 User Manual PT-PMS-82S 115.0 mm PT-HDBT-200-RX HDBaseT Receiver...
-
Page 58: Troubleshooting And Maintenance
User Manual PT-PMS-82S 11. Troubleshooting and Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable cable. Output image with white noise. Fail or loose Make sure the connection is connection good Check with oscilloscope or... -
Page 59: After-Sales Service
User Manual PT-PMS-82S 12. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 60 User Manual PT-PMS-82S Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
