QUICK USER GUIDE

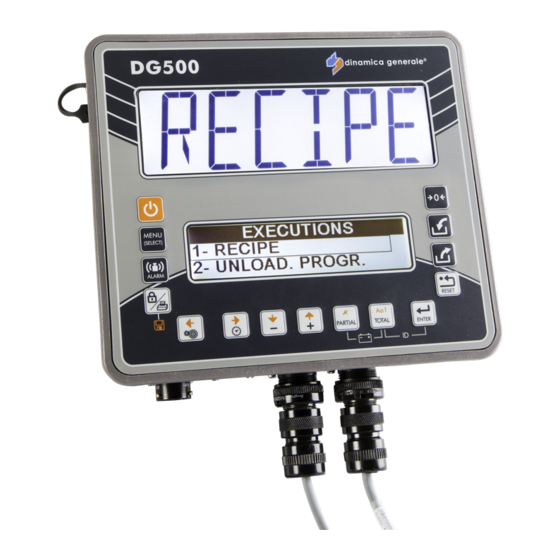

DG500
Feeding Monitoring
IMPORTANT INFORMATION
Please read the DG500 Operator's Manual for a complete description of features and
procedures by visiting:
https://bit.ly/DG500-Man
You must have an Internet connection to view the Operator's Manual.
As a guarantee for safe use, this document does not replace the operator's manual.
The original language is Italian. All other languages are translations from the original.

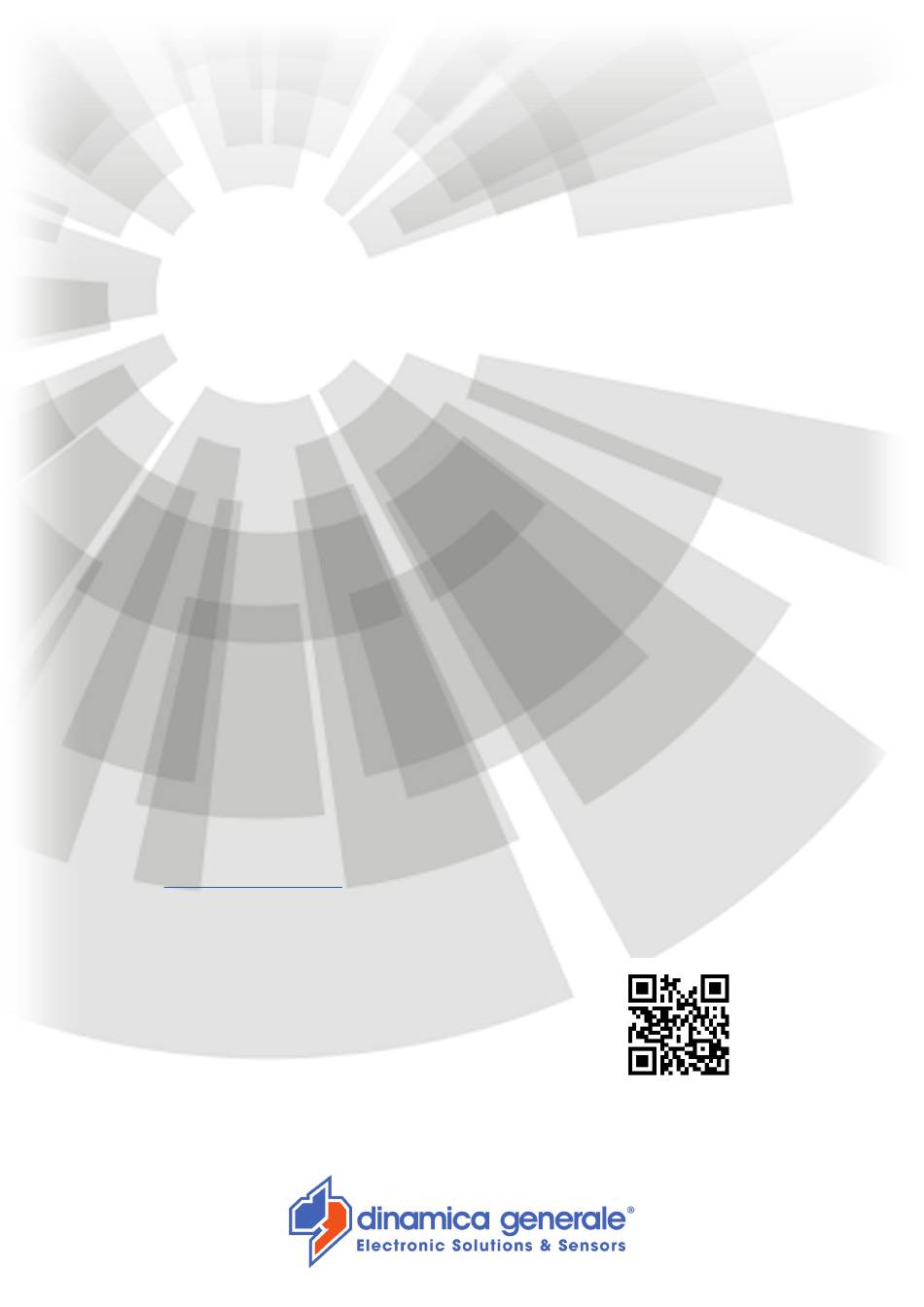

Scan the QR code to quickly access the Operator's Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dinamica Generale DG500
Summary of Contents for Dinamica Generale DG500
- Page 1 QUICK USER GUIDE DG500 Feeding Monitoring IMPORTANT INFORMATION Please read the DG500 Operator’s Manual for a complete description of features and procedures by visiting: https://bit.ly/DG500-Man You must have an Internet connection to view the Operator’s Manual. As a guarantee for safe use, this document does not replace the operator’s manual.
- Page 3 Use Rev A1 SECTION 1 ‐ Settings 1) From the “TOTAL WEIGHT” mode press and choose PARAMETERS 2) Move through the list using ↓↑ and press 2) ENTER to select the parameter to modify. a. Modify each parameter with “ ” and ‐ “ “ keys. b. Press ENTER to confirm. c. Press to save changes d. Press to undo the last change 4) 3) Select CONTRAST from the list using ↓↑ and press ENTER. 4) Modify the contrast using ↓↑ and press ENTER to confirm. ...
- Page 4 Rev A1 SECTION 2 ‐ How to use the edit function (name of components, recipes, unloading points, unloading programs, feeding processes) 1) Press ENTER to move the cursor down to the virtual keyboard. 2) To change the type of characters press . Press ↓↑→← to move the cursor and press ENTER to select the character. 3) Press to move the cursor out of the virtual keyboard or to delete a selected character. 4) Press to save changes. 5) Press to exit without saving. SECTION 3 ‐ How to create components and recipes Before start working, create components and recipes. NOTE: If you are working with DTM, components and recipes can be created directly on PC then imported to the indicator. Create/Modify a component 1) Press , select EDITING then COMPONENTS 2) by pressing ENTER. 2) Select the component from the list, then create/modify it using ↓↑ press ENTER to ...
- Page 5 Use Rev A1 5) Choose components from the list using ↓↑ and press ENTER. Type the weight and press ENTER. Set the mixing time and press ENTER. 6) Repeat the operation for each component. Press to save the program. 6) Press ENTER to confirm the Total Programmed. 7) Type the total mixing time (minutes). Press ENTER to confirm. SECTION 4 ‐ How to create unloading points and unloading programs 2) Create / Modify unloading points. 1) Press , select EDITING, then UNLOADING POINTS by pressing ENTER. 2) Select the unloading point from the list then create/modify it using ↓↑. Press ENTER to continue 3) For editing details, see SECTION 2. ...
- Page 6 Rev A1 SECTION 5 ‐ How to tare the scale Whether you are in partial or total weighing mode, you need to zero the system before start loading 1) Press for 3 seconds until you see the message “Settings OK!” The weight visualized on the scale is 0. From that moment, you can start loading. SECTION 6 ‐ How to run a recipe 1) With the scale on Total weight mode, press 2) , select the recipe using the ↑↓ and press ENTER. 2) Confirm/modify number of animal or total weight to load. This value can be modified using ↑↓. Press ENTER to confirm. 3) From that moment, the first component to 3) load will appear on the display. Load the component until the weight reaches “0” then the scale go automatically to the next component. 4) At the end of the load of the last component, the message “Total Loaded” indicates that all ...
- Page 7 3) From that moment, the first Unloading Point to feed will appear on the display. Unload the TMR until the weight reaches “zero”. The scale will go automatically to the next Unloading Point. 4) 4) Repeat the procedure for each Unloading Point until the message “Total Unloaded” will appear. SECTION 8 ‐ How to export data If you are working with the DTM, you need to transfer data to the software. You need a USB key (or Memory Card, depending on the type of your indicator) 1) USB key: data are stored in the internal memory of the indicator. Plug the USB key to the indicator, press and select USB KEY. Press ENTER to confirm data export. 1) NOTE: you can store up to 700 executions in the internal memory of DG500. Once memory is full, exporting is required. 5 Dinamica generale S.p.A. ...
- Page 8 Rules Rev A1 WARNINGS The power cable has to be connected directly to the battery or to a regulated power source. If this is not the case DG does not respond to any eventual damage to the indicator. Disconnect the power cable from the indicator when the battery of the machine is being charged. If this is not the case DG does not respond to any eventual damage to the indicator. Disconnect all cables from the indicator before performing welding operations on the machine. If this is not the case DG does not respond to any eventual damage to the indicator. For correct functioning, regularly check that the battery tension level remains over 10.5 Volt. Before cleansing the feed mixer with high‐pressure washer, protect the indicator from possible water seepage. Furthermore, be very careful to not expose sensors, junction box, acoustic alarm, cables or other accessories to direct water jets. If the indicator needs to be cleansed, use a soft, damp, lint‐free cloth. Never use sprays, solvents, abrasives, sharp or pointed objects that could damage the indicator. ENVIRONMENT: Disposal Rules This marking on the product or on its packaging means that this product can not be disposed with normal household waste. You are responsible for disposal of this equipement in a correct way and in according to local regulations. Electronic equipement, which has become useless, must be collected ...
- Page 9 dinamica generale® has the faculty to modify the content of this user’s manual due to hardware and software implementations in order to improve the products and therefore guarantee the best service to their users. 7 ...
- Page 10 CONFORMIDAD ‐ ДЕКЛАРАЦИЯ О СООТВЕТСТВИИ Nr 26/16 IT Il sottoscritto, designato a legale rappresentante della Dinamica Generale s.p.a. , via Mondadori 15, Poggio Rusco (MN) ‐ Italy, dichiara che i prodotti sottoelencati: EN The undersigned, an authorized officer of Dinamica Generale s.p.a. , via Mondadori 15, Poggio Rusco (MN) ‐ Italy, hereby declares that the products listed hereunder: D Der Unterzeichner, rechtlicher Vertreter der Dinamica Generale s.p.a. , via Mondadori 15, Poggio Rusco (MN) – Italy, erklärt, daß die nachstehend beschriebenen Produkte: FR Je soussigné, représentant légal désigné de Dinamica Generale s.p.a. , via Mondadori 15, Poggio Rusco (MN) ‐ Italie, déclare que les produits énumérés ci‐après: ES El suscrito, nombrado representante legal de la Dinamica Generale s.p.a. , via Mondadori 15, Poggio Rusco (MN) ‐ Italy, declara que los productos indicatos a continuación: RU Нижеподписавшийся, являющийся законным представителем компании Dinamica Generale s.p.a., расположенной по адресу via Mondadori 15, Poggio Rusco (MN) – Italy, заявляет, что продукция ниже DG500 IT Sono conformi a quanto prescritto dalle seguenti direttive: EN Are compliant with the following directives: 2014/30/EU D Mit den Vorschriften konform sind, die in den folgenden Richtlinien: FR Sont conformes aux prescriptions des directives suivantes: ES Respetan las prescripciones contenidas en las siguientes directivas: ...
-
