Summary of Contents for MACGREGOR WM-S-R Series

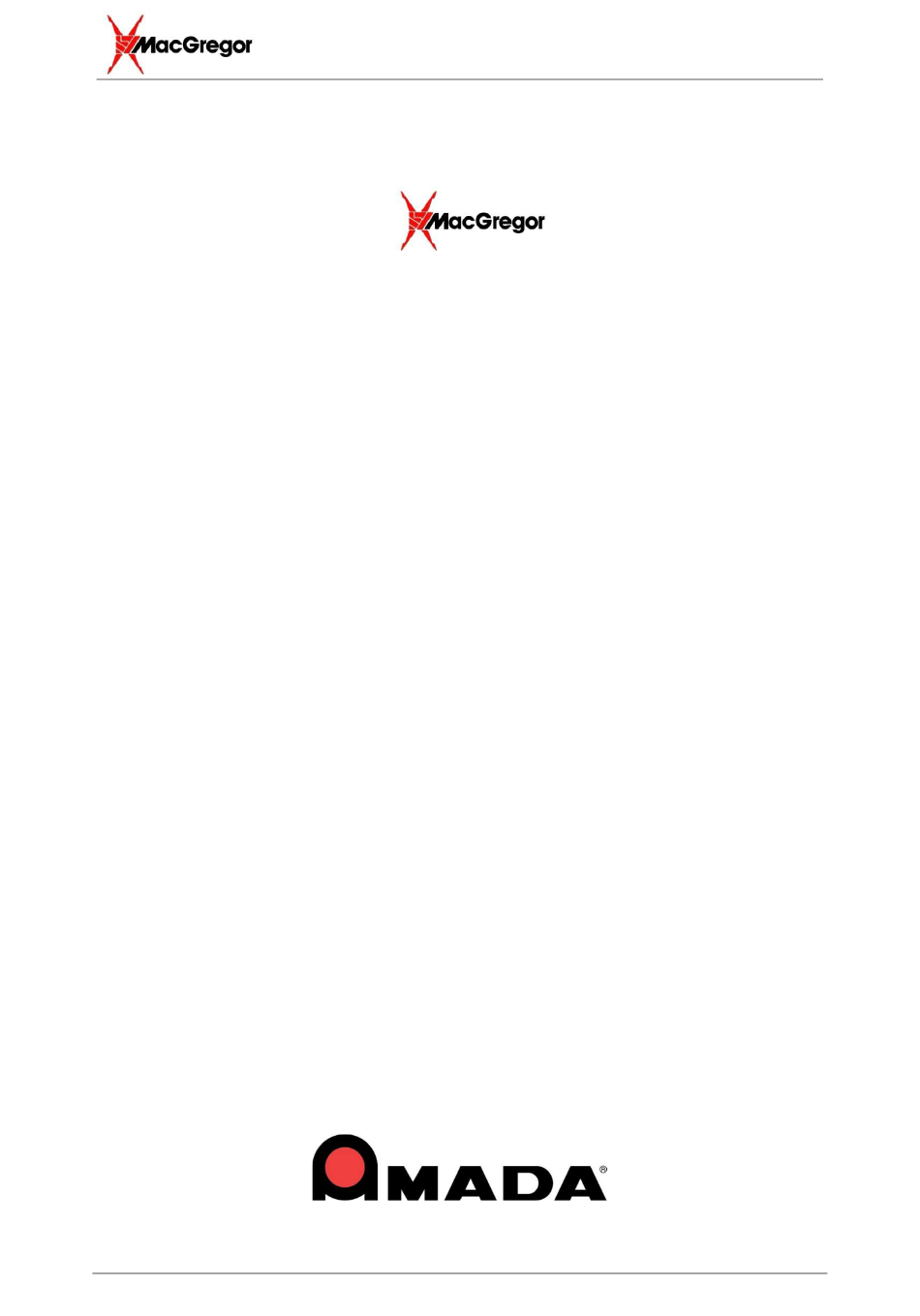

- Page 1 Operating Instructions Weldhead Module WM-S-R-x-x-x, WM-S-L-x-x-x OPERATION MANUAL 961-31915 rev2...
- Page 2 Operating Instructions General Information Incorrect or inappropriate configuration, installation, settings, handling or use can cause mechanical, electrical or thermal hazards, which may result in serious damage or injury. Ensure the correct execution of these points and follow the respective notes in the Danger operating instructions.
- Page 3 Operating Instructions Installation Installation requires the attachment of the module to the customers weld system via the M5 tapped holes in the rear of the module (fig 1). Suitable extra flexible cable or braid should be attached to the current connector attached to the main shaft. The size of the hole is 4.5mm suitable for an M4 screw. Inflexible cables or joints will prevent the correct movement of the electrode holder carrier.
- Page 4 Operating Instructions Setup and Operation 6.1.1 Weld Force The weld force is set by the force adjustment knob on the top of the head module. An arbitrary scale can be seen on the front of the module with the top of the scale being the lightest force and the bottom the highest.
