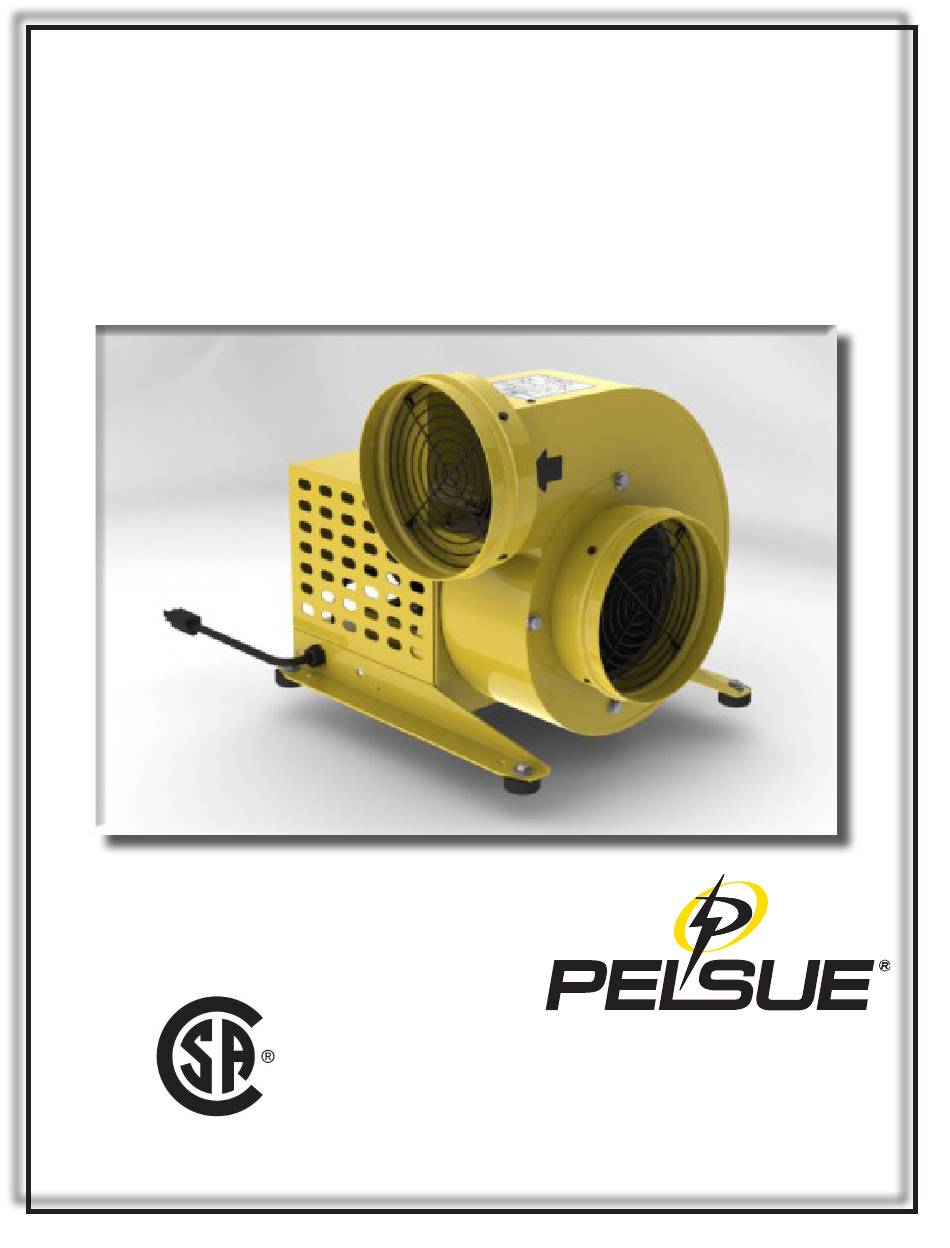

- Page 1 Part #112920-001 Product Manual: Model #1000 Centrifugal Blower IS O 9 0 0 1 Certified T.A. Pelsue Company 2500 South Tejon Street Englewood, Colorado, USA 80110 Tel. 800-525-8460 or 303-936-7432 Fax. 303-934-5581 Internet: www.pelsue.com Email: sales@pelsue.com...
- Page 2 Page 2 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015...
- Page 3 Pelsue continues the dedication that industry throughout the world. has made us pre-eminent in this field. Page 3 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015...
-
Page 4: Table Of Contents
4.0........Safety............11 4.1......Safety Alert Symbol 4.2......General Safety Information 5.0........Product Operation........13 5.1 ......Product Description & Capabilities 5.2 ......Start-Up & Operating Procedures Page 4 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015... -
Page 5: General Information
EVERY T.A. PELSUE COMPANY EMPLOYEE IS ExPECTED TO COMMIT TO THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASkS. QUALITY FIRST! T.A. PELSUE COMPANY SENIOR MANAGEMENT TEAM Page 5 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015... -
Page 6: Pelsue Product Warranty
• In the event of failure of any components of a Pelsue product within the warranty period, service must be pre- approved by the T.A. Pelsue Company and service must be performed by the T.A. Pelsue Company Parts and Service Department in Englewood Colorado, or at the option of T.A. -
Page 7: Introduction & Product Information
This manual covers the Pelsue Model #1000 Centrifugal Blower. Use the Table of Contents as a guide to find specific information. -
Page 8: Configuration & Assembly
3.0 - Configuration & Assembly Upon initial receipt of the Model #1000 Centrifugal Blower, inspect the packaging for any evidence that the product may have been damaged in shipment. While unpacking the product, inspect all of the components for damage. If damage to any of the components is discovered, Alert the shipping carrier immediately of the damage to the shipment. - Page 9 RIVET - STAVEx, BLIND FLANGE DOME, BLACk, 0.188" DIA 100604-010 SCREW - CAP, HEX HD, 1/4-2� UNC X 1" PLATED, GRADE 5 Table 3.1a: #1000 Parts List Page 9 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015...
-
Page 10: Wiring Diagram
3.2 Wiring Diagram Shown below in Figure 3.2a, is a wiring diagram of the motor and the cordset. Figure 3.2a: #1000 Wiring Diagram Page 10 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015... -
Page 11: Safety
You are responsible for the safe operation of your Pelsue #1000 Centrifugal Blower. You must ensure that anyone who will operate or work around the equipment be familiar with confined space ventilation procedures. This manual will take you step-by-step through the workings and capabilities of the #1000 Centrifugal Blower and alert you to good safety and operating practices while using the system. -
Page 12: General Safety Information
! CAUTION ! - The user must ensure that the blower is located where it cannot fall into water inadvertently and the extension cords or plug connections do not lay in water. Page 12 #112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015... -
Page 13: Product Operation
5.1 - Product Description & Capabilities The Pelsue Model #1000 Centrifugal Blower is built with a rugged steel housing and internal steel and/or aluminum components. The Pelsue #1��� Centrifugal Blower is specifi cally designed for confi ned space applications. All speci- 1���... -
Page 14: Start-Up & Operating Procedures
It is necessary to perform a visual inspection, each time, prior to using the product. If deficiencies are found, remove the product from service and contact the T.A. Pelsue Company regarding repair. The following checklist coupled with Figure #5.2a should be used as a guide to determine whether the equipment is in good operating condition prior to usage. - Page 15 - Ensure that the blower provides positive airflow the entire time during usage. The Centrifugal blower can be used with an accessory Air Flow Alarm (Pelsue Model #FLO-CHEk) that will alert the entrants when and if positive ventilation is lost during operation.
- Page 16 T.A. Pelsue Company 2500 South Tejon Street, Englewood, Colorado, USA 80110 Toll free 800-525-8460 or 303-936-7432 Fax. 303-934-5581 ISO 90 0 1 Certified Internet: www.pelsue.com Email: sales@pelsue.com...
