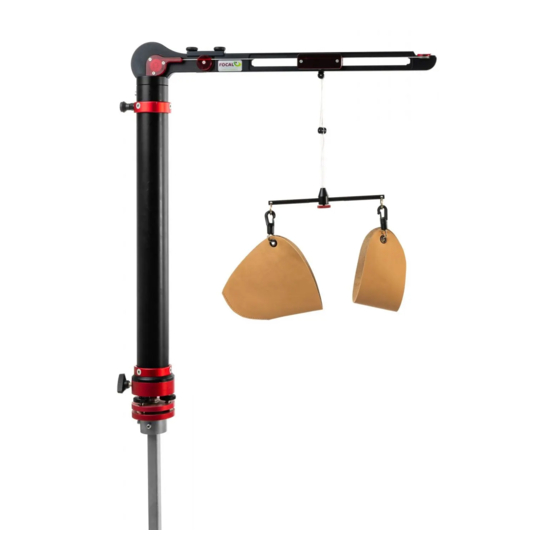

- Page 1 SLING DYNAMIC ARM SUPPORT Manual...
-
Page 3: Table Of Contents
Contents INTRODUCTION page 2 FOR WHOM INTENDED page 3 OPERATING PRINCIPLE page 4 PARTS page 6 DESCRIPTION page 6 ASSEMBLY page 9 SETTING page 9 page 14 WARNING page 16 MAINTENANCE page 16 CE MARK page 16 WARRANTY page 16 CONTACT INFORMATION page 20 V.10.07... -
Page 4: Introduction
INTRODUCTION This is the user manual of a dynamic arm support SLING (hereinafter called SLING) that can be mounted on a wheelchair, chair or a movable carriage. The SLING is manufactured and supplied by FOCAL Meditech, a company that specializes in body supports. This guide provides infor- mation about the article on its implementation and the consequences of use. -
Page 5: For Whom Intended
Whether one or two dynamic arm supports are used depends on several factors, including the individual limits and capabilities of the user and his needs. The user of the SLING can operate in all kinds of environments: at home, in school, in a workplace, outdoors or in an institution. -
Page 6: Operating Principle
OPERATING PRINCIPLE OF THE SLING The dynamic arm support SLING is a set of axes equipped with a string. The string connects an arm-fitting with a counterweight. The SLING will always be attached to the 'material' world (chair, wheelchair or frame). The forearm rests in the arm-fitting, the SLING can now largely bear the weight of the arm and relieve the pectoral girdle. - Page 7 Like all of FOCAL Meditech arm support systems, the device has a very robust construction and a very slight backlash between the different axes. The axes are equipped with high quality bearings, so all motions can be carried out smoothly. The light motion, combined with good fit and a great adjustability only require very little effort from the user.
-
Page 8: Parts
PARTS DESCRIPTION Following are the components of the SLING, described from the arm of the user. • When using the device, the arm of the user rests in the arm-fit- ting. The arm-fitting usually consists of two components of leather, namely a wrist- and elbow piece. - Page 9 • The linear guide is attached to a trolley that moves back and forth. The function of the trol- ley is to ensure that the string, during all forward/backward movements, remains perpendi- cular to the linear guide. This will prevent any undesirable forces in the direction of the user’s forearm.
- Page 10 • Directly below the rotation ele- ment, on the back of the tube, there is a pawl spring. This makes it possible to comple- tely block all rotations. The faci- lity is used during transport in a bus for example, when outside forces can make the linear guide to swing back and forth.
-
Page 11: Assembly
After passing extensive testing and evaluation, FOCAL Meditech or its representative will place the dynamic arm support on to the chosen facility. This is individual and accurate business. The transfer of the SLING to a new facility should also be carried out by FOCAL Meditech or its representative. SETTING OF THE SLING... - Page 12 Set rotation limitation. Now set, if desired, the working range. Do this by loosening the ring nut at the back and on top of the tube. Then use the supplied Allen key (2.5 mm) to loosen the socket screw you found under the ring nut.
- Page 13 At the bottom of the rotation element, there is a rotation stopper, located between the two locking pins. This stopper and the pins limit the rotation of the SLING, to make sure the arm cannot reach an undesirable area. Place the rotation unit with the linear guide back on the tube. Note that the rotation stop fits between the two locking pins at the top.
- Page 14 The more the bobbin is placed backwards (towards the elbow), the easier the arm and hand can be tilted down. The more the bobbin is placed forwards (towards the wrist), the easier the arm and hand can be tilted up. The settings should be such that the forearm can rest on the armrest or on the lap of the user.
- Page 15 3) At the bottom of the tube (through the opening), the bottom of the counterweight (a) will now be visible. The three additional weights (b) were already visible. 4) Rotate the counterweight using a small screwdriver, until the socket screw of the counterweight is accessible.
-
Page 16: Use
USE OF THE SLING The use of the SLING is determined by the individual needs and desires of the user and the environment in which he intends to use the device. The number of activities than can be carried out with the help of the dynamic arm support is unlimited. In ADL situations, most-... - Page 17 Reduce size To reduce the SLING’s size (e.g. during storage), the linear guide can be folded down: • On top of the linear guide there is a moving plate with turning knobs. Turn...
-
Page 18: Warning
When moving the linear guide in close proximity to other persons, please avoid striking against them. MAINTENANCE The dynamic arm support requires little maintenance. The SLING can be cleaned using a damp cloth and a non-aggressive detergent. CE MARK This product is CE approved and complies with European guidelines for medical devices. - Page 19 Article 2 Our guarantee means that the product will be returned in the same condition it was in before the defect occurred. FOCAL Meditech deci- des whether defective parts are repaired or replaced. Parts that are replaced without charge will become our property.
- Page 20 6) Any other external cause from outside, for instance bumping or collision. Article 8 Warranty does NOT cover malfunction because of damage sustained during transport and beyond the responsibility of FOCAL Meditech, installation or assembly by non-qualified persons, poor or inadequate maintenance, or ignoring the instructions. Article 9...
- Page 21 Article 13 Necessary or desirable adjustments are not part of the standard pro- duct, as documented in the manual. FOCAL Meditech will try to deal with failures of individual adjustments in accordance with the provi- sions of the standard product warranty. Necessary or desirable indivi- dual adjustments do not form part of the warranty.
-
Page 22: Contact Information
CONTACT INFORMATION The dynamic arm support SLING and all accessories are manu- factured and supplied by: FOCAL Meditech BV Droogdokkeneiland 19 5026 SP Tilburg The Netherlands Phone: +31 (0)13-533 31 03 Fax: +31 (0)13-533 50 04 E-mail: info@focalmeditech.nl Internet: www.focalmeditech.nl The dynamic arm support SLING is delivered by... - Page 24 FOCAL Meditech BV Droogdokkeneiland 19 5026 SP Tilburg Nederland +31 (0)13 533 31 03 +31 (0)13 533 50 04 info@focalmeditech.nl www.focalmeditech.nl...
