- Page 1 Sling User manual Identifier: 606691 Version: 1.0 Date: 1 April 2021...
-
Page 2: Table Of Contents
Disclaimer Content The content of this manual is for informational use only and is subject to change without notice. Focal Meditech BV assumes no responsibility or liability for any errors or inaccuracies Disclaimer that may appear in this document. Copyright Notice Periodically, changes may be made to the information in this manual;... -
Page 3: Manual Introduction
Conditions and Warranty: direct supply by Focal Meditech BV to consumers This is the user manual for Sling a dynamic arm support system. This product is developed, manufactured and distributed by Focal Meditech B.V. or one of its authorized representatives. -
Page 4: Symbol Explanation
Danger This label is positioned at the bottom of the vertical tube of the Sling This symbol in combination with the word “Warning” is used when there is important information to avoid certain actions that can lead to an equipment failure. -
Page 5: Safety Notices
Warning: Do not modify any part of this equipment without authorization of the manufacturer. Failure of this can lead to malfunctioning and will void the warranty. Warning: In case of faulty device contact Focal Meditech. Do not try to fix it yourself. Failure of this will void the warranty. -
Page 6: Intended Use And Operation Of The Device

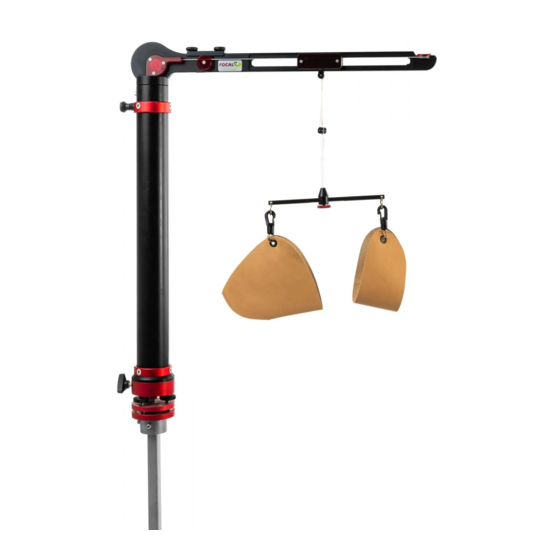

Operation of the device The dynamic arm support Sling is a set of axes equipped with a string. The string connects an arm-fitting (Human Interface) with a counterweight. The Sling will always be attached to the 'fixed' world (chair, wheelchair or frame). -
Page 7: Risks And Contra-Indications
Risks and contra-indications Technical information No essential user risks are known while using Sling. Sling is an aid which should be used by the intended users. However, there are no known contra-indications for Sling. To be able to use Sling the following warnings must be considered. -
Page 8: Connect And Disconnect The Wrist Strap And Or The Elbow Strap
The vertical tube brings the linear translation above the user and provides room and guidance for the counter weight. Although the Sling can be used with only a wrist strap, Sling is most likely equipped with a • The lock knob can be used to easily take of Sling. -
Page 9: Connect And Disconnect The Human Interface
Folding and unfolding Sling When the user wants to fold Sling, it is recommended that the human Interface is disconnected The Sling can be folded when it is not used. This provides a safe setting for the user and the from the system. -
Page 10: Adjust The Balancing Force
The balancing force in Sling consists of a counter weight which is placed in the vertical tube. The Sling has a rotation of 45° to the left and 45° to the right which provide the user to be able However, the possibility to change the counter weight is limited. -
Page 11: Removing And Placing
Removing and placing Adjusting the Level unit The Sling can be removed if it is not used for a longer time. This provides a safe setting for the The optimal performance of Sling will be reached when the linear translation is perpendicular user and the device. -
Page 12: Accessories
There are no electrical / software controls available for Sling. In order to make stable and safe use of Sling, there are a couple of mounting brackets developed for Sling. The installation instructions (how to fixate the adapter) comes with the adapter. -
Page 13: Maintenance Instructions
The Human Interface have to be replaced. 0.20...3 [kg] • Mass Focal Meditech will refurbish and repackage the reused Sling in such a way that it will meet the Mounting position safety and performance requirements according to applicable regulations. -20...20 [º] •... -
Page 14: Dimensions
Dimensions are variable. This is because it is a product with moving parts and it is a product with different configurations. All dimensions are given in [mm] millimetres. Focal number Description 603900 till Sling (mechanical) 603908 603909 till Sling (electrical) 603917... -
Page 15: Appendix 3 Used Materials
Appendix 3 Used materials Appendix 4 Declaration of conformity Focal number Description Materials used 603900 till Sling (mechanical) Aluminium 6082-T6 603908 + RVS(AISI 304) 603909 till Sling (electrical) 603917 600923 Elbow strap (Small) Neoprene 600920 Elbow strap (Medium) 600917 Elbow strap (Large) - Page 16 Conditions and Warranty: direct supply by Focal Meditech BV to consumers In the case of direct supply by Focal Meditech BV to end users, Conditions and Warranty are subject to the Consumer General Terms and Conditions issued by Koninklijke Metaalunie and in...
