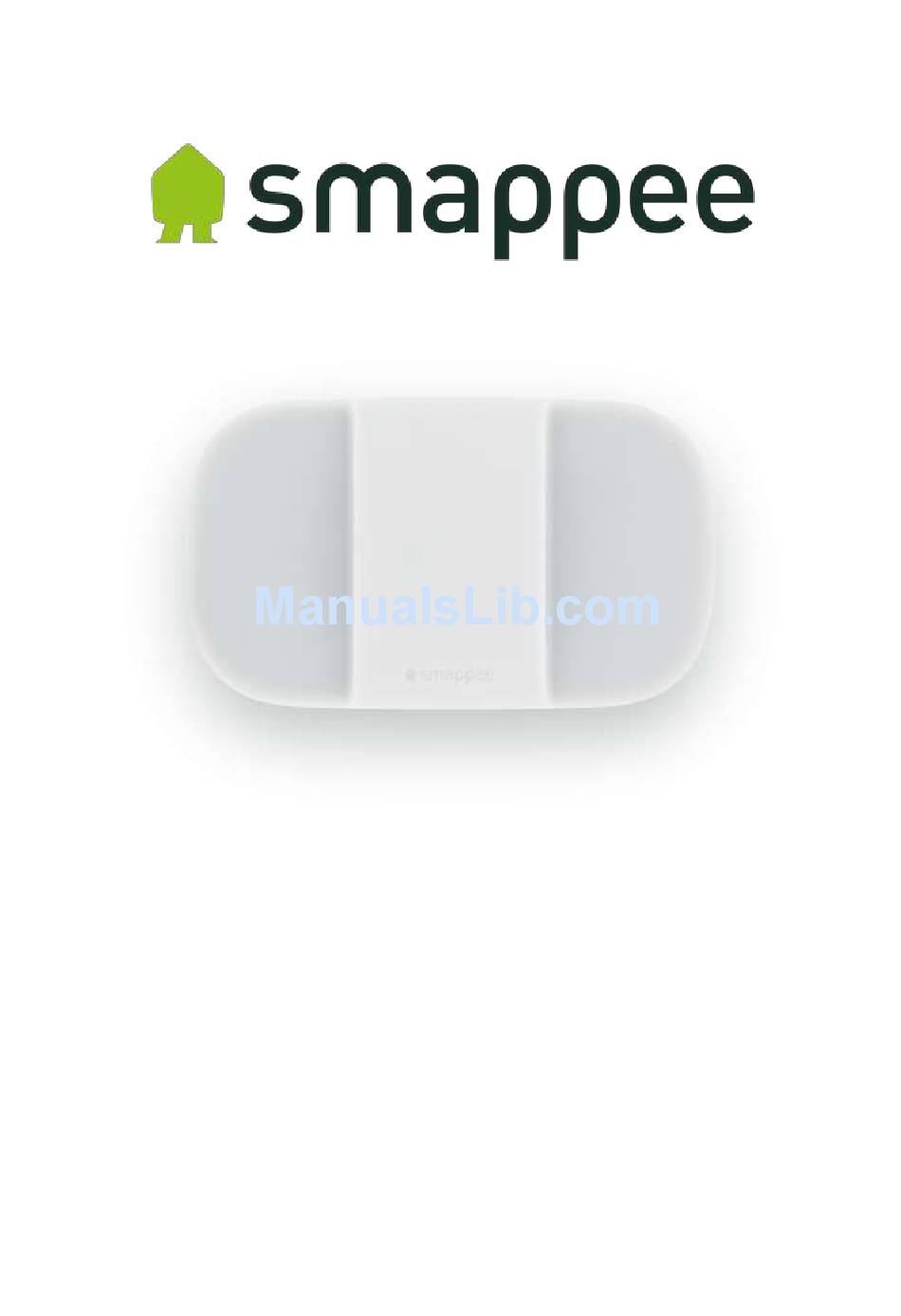

- Page 1 Installation Manual 3-phase connection with solar panels Version 1.0.1 July 2014 (English), version 1.0 © 2013-2014 smappee NV. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
-
Page 2: Table Of Contents
Read before use ......................... 4 Warnings ..........................4 Maintenance ........................... 4 Technical specifications ......................4 Connecting the Smappee monitor ....................5 Important remarks ......................... 5 Three-phase connection with solar panels ................6 Declaration of Conformity ......................10 Page 2 of 10... -
Page 3: Introduction
This manual describes the installation of the Smappee monitor. All information about the WiFi configuration of the Smappee monitor and the use of the Smappee app can be found in the S... -
Page 4: Read Before Use
Read before use Warnings Please observe the following safety precautions to avoid possible electric shocks, fire, or personal injury: Use the product only as specified as otherwise the safety of the product is not sufficient. Do not use the product in environments with explosive gas or vapours, nor in damp or ... -
Page 5: Connecting The Smappee Monitor
Connecting the Smappee monitor Attention! Before you can connect the Smappee monitor you must first connect it to mappee user manual your Wi-Fi network as described in the S For the connection you need: The Smappee monitor. The power cord, the 6 power clamps and the 3 V-cables supplied with the monitor. -
Page 6: Three-Phase Connection With Solar Panels
Three-phase connection with solar panels The following steps describe the three-phase connection with solar panels. Preparation: You have already connected your Smappee monitor with your Wi-Fi network (green heartbeat). Steps Turn off the electricity. Open the fuse box. You see 4 cables deriving from the electricity (kWh) meter. - Page 7 Place the power clamp over a phase wire and make sure that L points in the direction of the fuse box and K in the direction of the electricity meter. Make sure that you properly close the clamp by pressing your thumb on the side until you hear a click.
- Page 8 Proceed very carefully! If you selected phase 1 (L1) in step 4 then you should now select the corresponding phase 1 of your inverter (S1). If this is not properly done Smappee will not be able to measure correctly. Put the current clamp over this phase cable and observe the right direction: K should point in the direction of your inverter and L in the direction of your fuse box.
- Page 9 Repeat step 4 to 7 for the two remaining phases. Then connect the 3 V-cables to the inputs 1, 2 and 3 of the Smappee. You can see the result in the figure below. Turn the electricity back on. Plug the power cord of the Smappee into the wall socket and wait until the monitor shows a green heartbeat.
-
Page 10: Declaration Of Conformity
Declaration of Conformity October 5, 2013 Smappee nv Evolis 100 8500 Kortrijk Belgium following the provision of the following EC Directives: - 2006/95/EC The Low Voltage Directive - 2004/108/EEC The Electromagnetic Compatibility Directive hereby declare that the product: Smappee monitor-e1...
