Summary of Contents for PASCO SpeedCheckR 7500

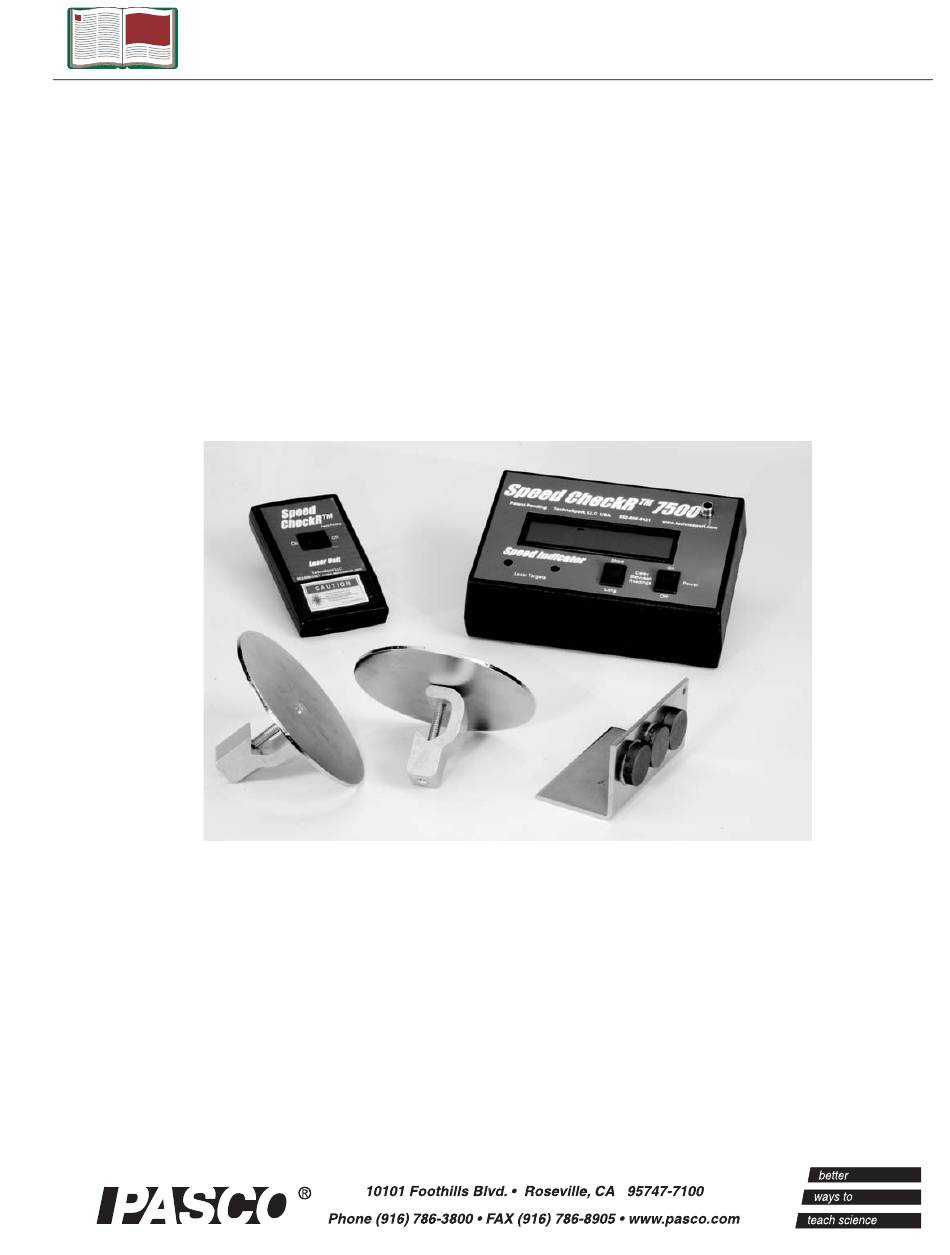

- Page 1 Instruction Manual Manual No. 012-08900 SpeedCheckR Model No. SE-7576...
-
Page 2: Table Of Contents
Model No. SE-7576 Table of Contents Equipment List............3 Introduction ............. 4 Important Precautions ..........5 Laser Safety ............5 Equipment Setup (General) ..........6 Speed of a Runner ............8 Leg Speed (Soccer) ............. 9 Cart Velocity ............9 Centripetal Force ............11 Speed of a Pendulum...........12 Appendix A: Technical Support ........13... -
Page 3: Equipment List

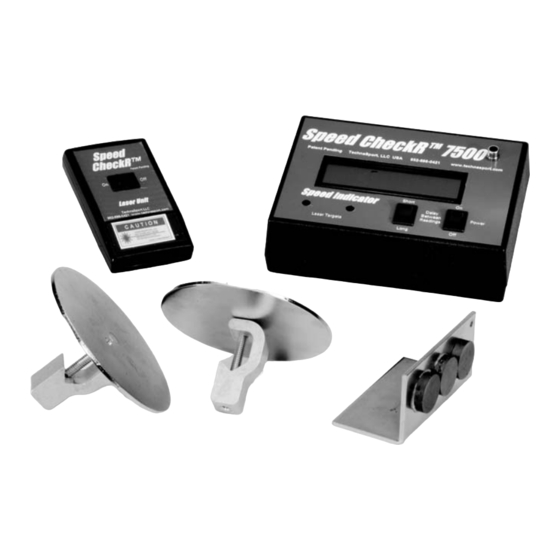

Model Number* 1. Laser Unit 2. Receiver Unit 3. Rod Stand Mounting Brackets (2) 4. Right-angle Bracket * Please contact PASCO Technical Support when no replacement part number is provided. Additional Equipment Recommended 1. Rod Stand (large) ME-9355 SE-7577 2. SpeedCheckR Stand... -
Page 4: Introduction
Model No. SE-7576 Introduction The PASCO SE-7576 SpeedCheckR is designed to measure the speed of an object with a minimum of setup time. In addition, the speed measurement is determined without the need to enter the width of the object. All components of the SpeedCheckR include magnetic mounting for a wide variety of configurations. -
Page 5: Important Precautions
The lasers used in the SpeedCheckR 7500 are Class 2 lasers with emission levels similar to commonly available laser pointers found throughout the country. -
Page 6: Equipment Setup (General)
Do not for any reason remove these stickers. Replacement stickers may be ordered from TechnaSport, LLC.The SpeedCheckR 7500 complies with 21 CFR 1040.10 and 1040 and other applicable FDA light- emission requirements. - Page 7 Model No. SE-7576 3. Place the Receiver on one of the mounts and the Laser Unit on the other. 4. Position the Receiver and Laser Unit on either side of the object to be measured. 5. Align the lasers from the Laser Unit so they shine straight upon the optical detectors on the Receiver.
-
Page 8: Speed Of A Runner
Model No. SE-7576 The Receiver features two delay settings: Short Delay - Useful for small, fast moving objects (baseball bat, pendulum, etc) Long Delay - Useful for large, slow objects (people walking, dynamics cart, etc) The SpeedCheckR Stand (SE-7577) can be purchased separately to allow additional mounting options for experiments involving centripetal force (see below), baseball bat speed, etc... -
Page 9: Leg Speed (Soccer)
Model No. SE-7576 Leg Speed (Soccer) The speed of a soccer player's leg as the ball is kicked can be measured using the following setup pictured. 1. Place the Receiver and Laser Unit no more than 2 meters apart. 2. The Laser Unit may need to be offset to one side so the plant foot (left foot in the photo) does not block the lasers. - Page 10 Model No. SE-7576 1. Place the Laser Unit and Receiver on rod stands, one on either side of the track. 2. Rotate the lasers such that the cart passes straight through them (see photo below). 3. Rotate the Receiver to align the lasers with the optical detectors. 4.
-
Page 11: Centripetal Force
Model No. SE-7576 Centripetal Force The SpeedCheckR can measure the speed of a stopper as it is swung in a circular path. The speed, mass and radius can then be used to determine the centripetal force on the stopper using the following equation: ---------- 1. -
Page 12: Speed Of A Pendulum
Model No. SE-7576 Speed of a Pendulum The SpeedCheckR can measure the speed of a pendulum at the bottom of its path. 1. Place the Laser Unit and Receiver on rod stands, one on either side of the pendulum. 2. Rotate the lasers such that the string passes straight through them. 3. -
Page 13: Appendix A: Technical Support
Model No. SE-7576 Appendix A: Technical Support For assistance with the SE-7576 or any other PASCO products, contact PASCO as follows: Address: PASCO scientific 10101 Foothills Blvd. Roseville, CA 95747-7100 Phone: (916) 786-3800 FAX: (916) 786-3292 Web: www.pasco.com Email: techsupp@pasco.com...
