PASCO ME-6982 Instruction Sheet

Plug
CAUTION: This device contains an
intense LED light. Do not look directly
into the light during operation.

Introduction

The PASCO model ME-6982 Strobe Lamp is designed to work
with the model ME-6978 Stroboscope. Each Strobe Lamp has
three light emitting diodes (LED's) that produce flashes of bright,
white light.
Strobe Lamp ports

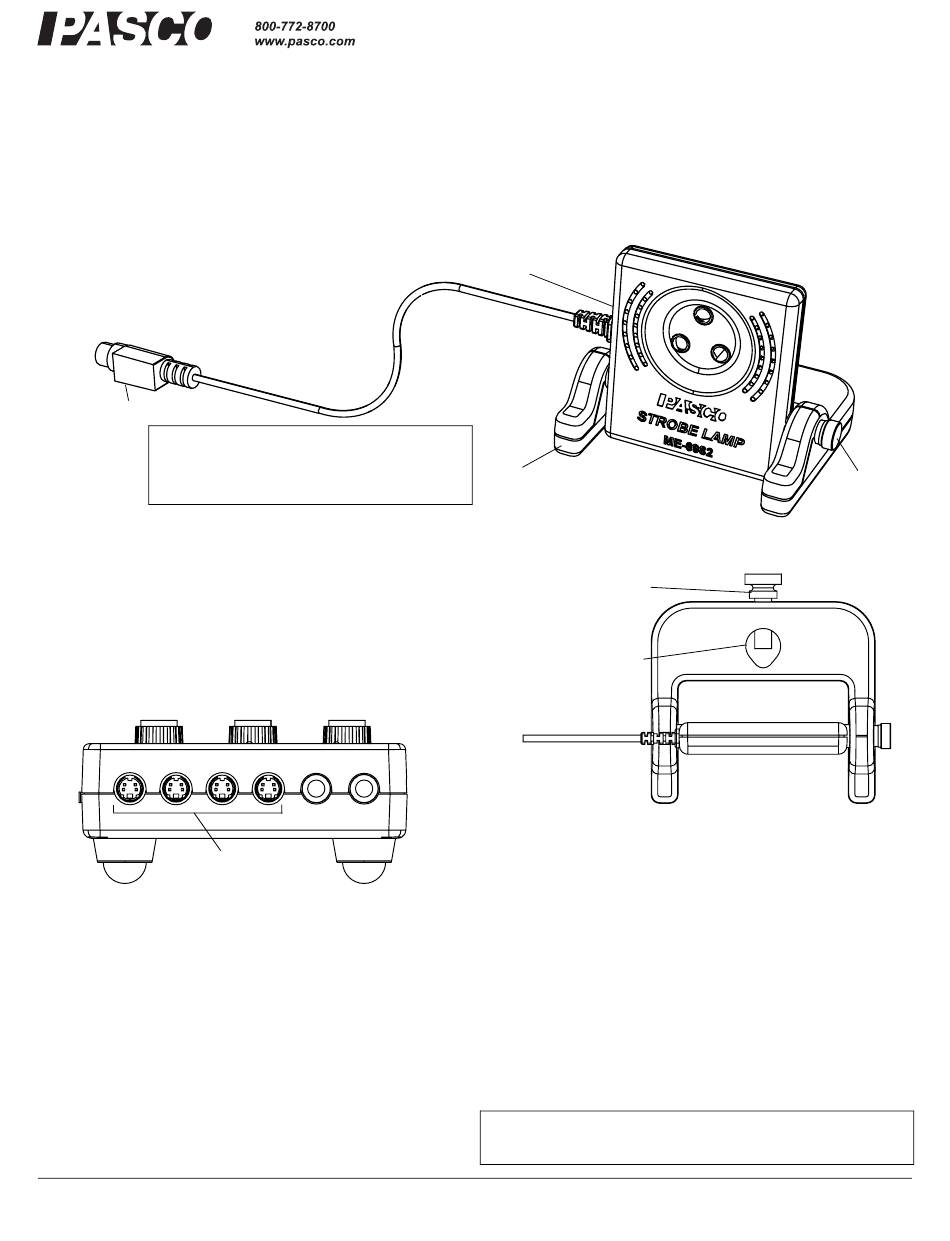

Figure 1: End view of the ME-6978 Stroboscope
Up to four Strobe Lamps can be connected to one Stroboscope.
The Strobe Lamp base allows the lamp to pivot and the pivot
thumbscrew can be tightened to hold the lamp at a particular
position.
The Strobe Lamp base also has a hole and thumbscrew that
allows it to be mounted on a support rod up to 12.5 mm in diame-
ter.
800-772-8700
®
Strobe Lamp
ME-6982
Lamp
Base
Thumbscrew
Mounting hole
Figure 2: Top view of the ME-6982 Strobe Lamp

Operation

Connect the Strobe Lamp plug into one of the four ports on the
end of the ME-6978 Stroboscope. Tilt the Strobe Lamp into posi-
tion as needed.
Connect power to the Stroboscope and slide the OFF/ON switch
to the ON position. The green light emitting diode (LED) next to
the HZ FUNCTION will begin to flash slowly. The default flash
rate is 10.0 Hz or 60 RPM.
Press the LAMP button to start the Strobe Lamp flashing.
REMEMBER: Do not look directly at the Strobe Lamp when the
LED's are flashing!
