ATD Tools ATD-8645 Owner's Manual

8:1 torque multiplier wheel nut wrench

ATD-8645

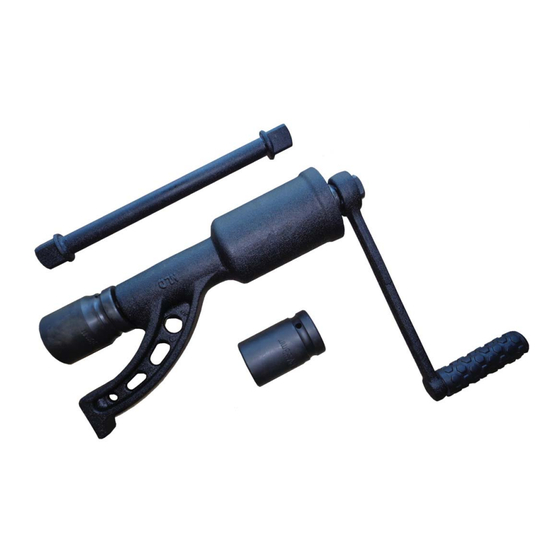

58:1 Torque Multiplier Wheel Nut Wrench

Owner's Manual

SPECIFICATIONS:

Model Number: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ATD-8645

Output Drive: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1" sq (male)

Ratio: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58:1

Maximum Rated Output:. . . . . . . . . . . . . . . . . . . . .4000 Nm (2,950 ft. lbs.)

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer,

birth defects or other reproductive harm. Wash hands after handling.

Table of Contents

Do you have a question about the ATD-8645 and is the answer not in the manual?

Page 1 Model Number: ........
Page 2 Do not wear loose clothing or jewelery as they can be caught in moving parts. Wear restrictive hair covering to contain long hair. ATD-8645 Specific Safety Warnings: of damaged parts. DANGER: DO NOT support the vehicle on a jack; use suitably rated axle stands under the vehicle before proceeding with wheel removal/replacement.
Page 3 ATD-8645 Operation Instructions The reaction leg must be butted up against a solid object (adjacent wheel nut, wheel rim or hub) to resist the rotation of the leg as in fig.2(B). NOTE: Some commercial vehicles may have left hand threads on wheel studs and nuts; check which direction is required.
Page 4 ATD-8645 ITEM# ORDERING PART# PART DESCRIPTION RT8645-14 RT8645-15 WINDING HANDL RT8645-16 SOCK T, 33MM RT8645-17 SOCK T, 38MM RT8645-18 BLOW MOLD D CAS * - IT MS 01 - 13 AR SHOWN FOR R F R NC ONL AR NOT A AILABL S ARAT L Learn more about wheel and tire service tools we have.
